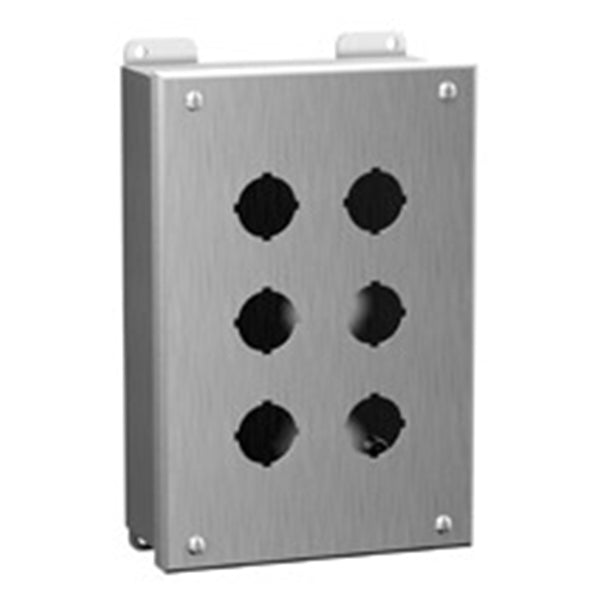

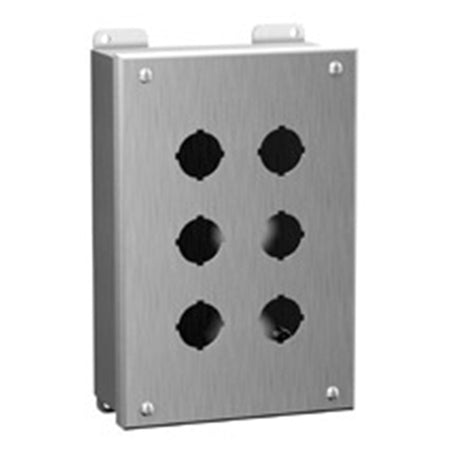

Hammond 1435 SS Series Steel Pushbutton Enclosures
Hammond MFG
- Description
- Specifications
- NEMA Ratings
-
Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights. While Providing protection from dirt, dust, oil and large amounts of water from any angle, or where highly corrosive conditions exist.
Standards
- UL 508A Type 4 and 4X
- CSA Type 4 and 4X
- NEMA Type 3R, 4 and 4X
- IEC 60529, IP66
- Appropriate components are required to maintain these standards.
-
Specifications
Please click a part number below to view the product specifications.
Number of Holes
 Part Number
1 - 30.5mm 1435SSA 2Â - 30.5mm 1435SSB 3Â - 30.5mm 1435SSC 4Â - 30.5mm 1435SSD 6Â - 30.5mm 1435SSH 9Â - 30.5mm 1435SSK 12Â - 30.5mm 1435SSO 1Â - 22.5mm 1435MSSA 2Â - 22.5mm 1435MSSB 3Â - 22.5mm 1435MSSC 4Â - 22.5mm 1435MSSD 6Â - 22.5mm 1435MSSH 9Â - 22.5mm 1435MSSK 12Â - 22.5mm 1435MSSO -
Type 3R
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.
Type 4
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.Type 4X
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.
