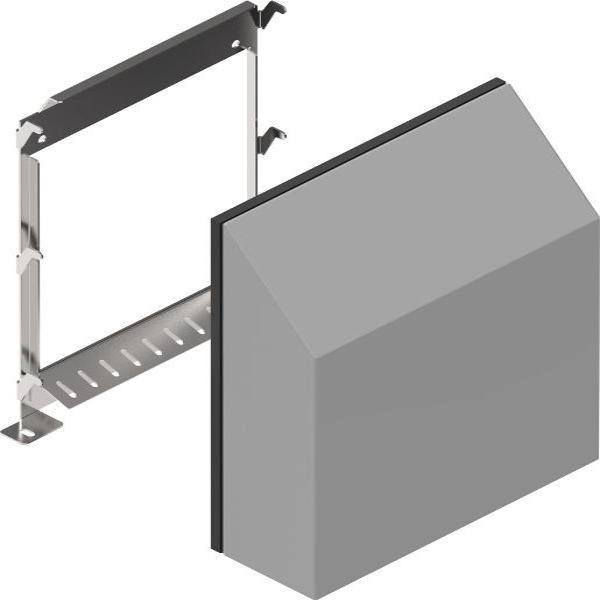

Hammond RHN4 Series-Filterfan Rainhoods - NEMA 4/4X 304SS

Available Sizes:

Quantity

$196.88

Product Information

Part Number: RH20000N4SS

Description
Specifications
NEMA Ratings

Filterfan Rainhoods (Patent Pending) feature a robust design rated to NEMA TYPE 3R/4/4x and IPx6 when used with Pfannenberg FilterfansÂ®. Options include painted galvanized steel, stainless steel and FDA compliant food and beverage grade versions.

Standards
- UL 508A Type 3R, 4, 12 and 13
- CSA Type 3R, 4, 12 and 13
- NEMA Type 3R, 4, 12 and 13
- IEC 60529, IP66
Specifications

Please click a part number below to view the product specifications.

ProductÂ Dimension Part NumberÂ

8.70 X 70.44 RH20000N4SS

10.87 X 12.68 RH30000N4SS

12.84 X 14.65 RH40000N4SS

15.51 X 17.33 RH60000N4SS
Type 3R

Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.

Type 4
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.
Type 12

Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

Type 13

Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
