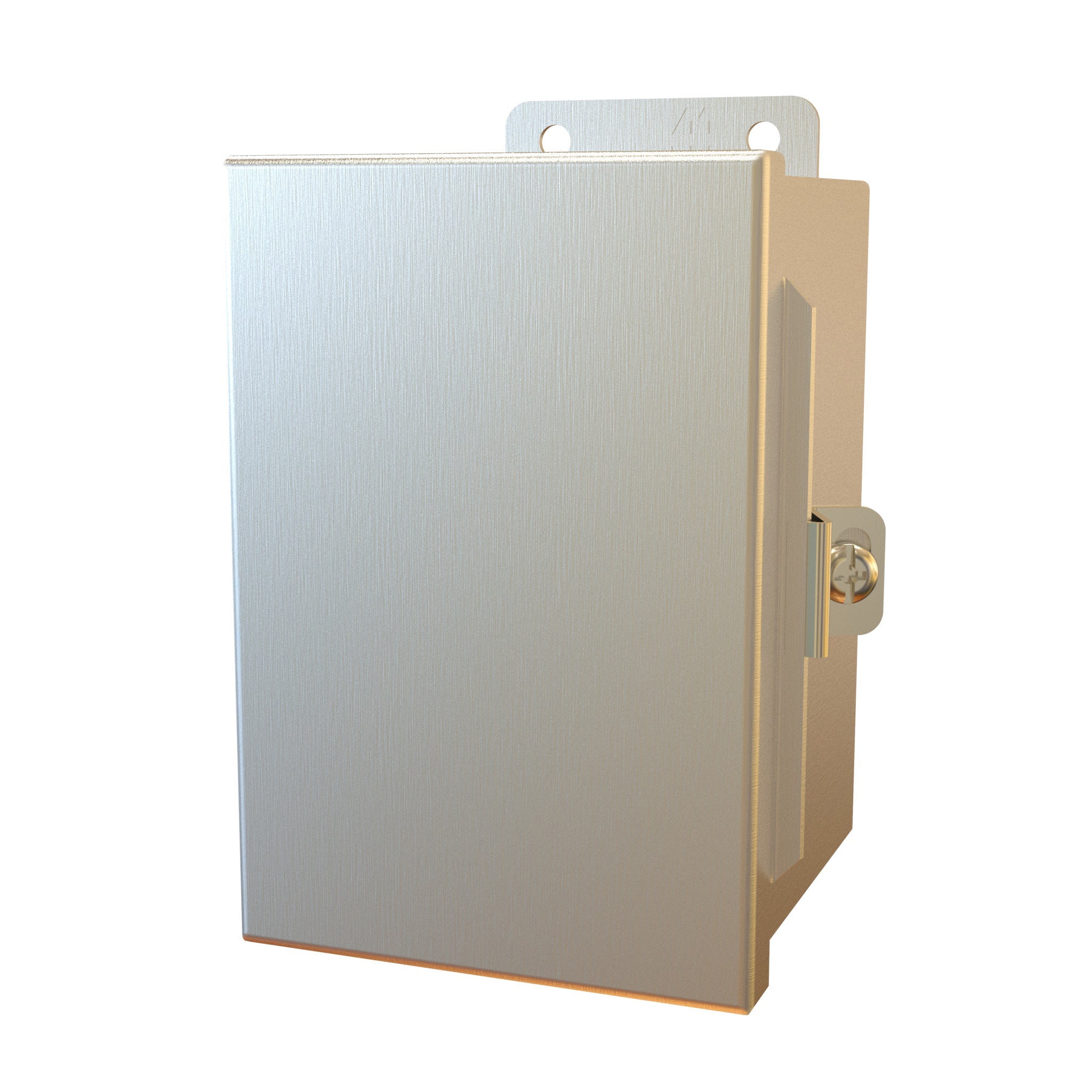

1414-N4 Series Hammond MFG Stainless Steel Enclosure
1414-N4 Series Hammond MFG Stainless Steel Enclosure 1414-N4 Series Hammond MFG Stainless Steel Enclosure Specs
$155.58 $171.71
Product Information
Part Number: 1414N4PHSSC4
  • Description
  • Specifications
  • NEMA Ratings
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.

    Standards

    • UL 508A Type 3R, 4, 4X, 12 and 13
    • CSA Type 3R, 4, 4X, 12 and 13
    • NEMA Type 3R, 4, 4X, 12 and 13
    • IEC 60529, IP66
  • Specifications

    Please click a part number below to view the product specifications.

    Product Dimensions

    Part Number

    6x4x4 in. 1414N4PHSSC4
    6x6x4 in. 1414N4PHSSE
    8x6x3.5 in 1414N4PHSSG
    8x6x4  1414N4PHSSG4
    10x8x4 in. 1414N4PHSSI
    12x10x5 in. 1414N4PHSSK
    12x10x6 in. 1414N4PHSSK6
    12x12x6 in. 1414N4PHSSL6
    14x12x6 in. 1414N4PHSSM6
    16x14x6 in. 1414N4PHSSO6
    14x12x8 in. 1414N4PHSSM8
    16x14x10 in. 1414N4PHSSO10
  • Type 3R

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4X

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.

    Type 12

    Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

    Type 13

    Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
