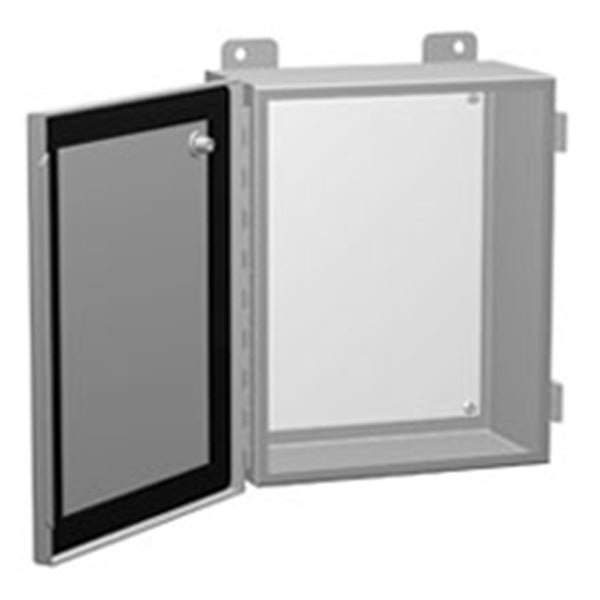

1414 PH Series Hammond MFG Painted Steel Enclosures
1414 PH Series Hammond MFG Painted Steel Enclosures 1414 PH Series Hammond MFG Painted Steel Enclosures Specs
$36.65 $42.13
Product Information
Part Number: 1414PHA
  • Description
  • Specifications
  • NEMA Ratings
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides a degree of protection from falling dirt, dust, oil and water.

    Standards

    • UL 508A Type 12, 13
    • CSA Type 12, 13
    • NEMA Type 12 and 13
    • IEC 60529, IP54
    • Specifications

      Please click a part number below to view the product specifications.

      Product Dimensions

      Part Number

      4x4x3 in. 1414PHA
      6x4x3 in. 1414PHC
      8x6x3.5 in. 1414PHG
      6x8x3.5 in. 1414PHRG
      4x4x4 in. 1414PHA4
      6x4x4 in. 1414PHC4
      6x6x4 in. 1414PHE
      8x8x4 in. 1414PHH4
      10x8x4 in. 1414PHI
      8x10x4 in. 1414PHRI
      12x6x4 in. 1414PHKC4
      12x10x5 in. 1414PHK
      10x12x5 in. 1414PHRK
      8x6x6 in. 1414PHG6
      10x8x6 in. 1414PHI6
      10x10x6 in. 1414PHJ6
      12x12x6 in. 1414PHL6
      14x8x6 in. 1414PHMH6
      14x12x6 in. 1414PHM6
      12x14x6 in. 1414PHRM6
      16x10x6 in. 1414PHN6
      16x14x6 in. 1414PHO6
      14x16x6 in. 1414PHRO6
      12x10x8 in. 1414PHK8
      14x12x8 in. 1414PHM8
      16x14x8 in. 1414PHO8
      16x14x10 in. 1414PHO10
    • Type 12

      Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

      Type 13

      Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
