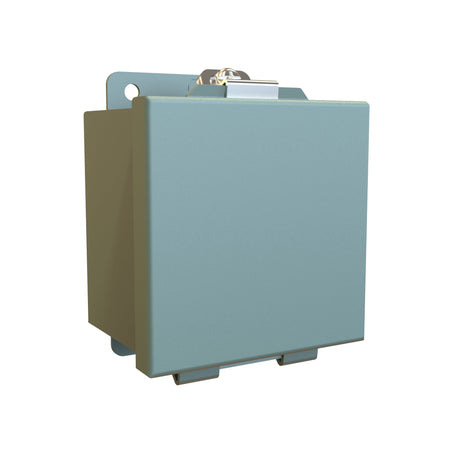

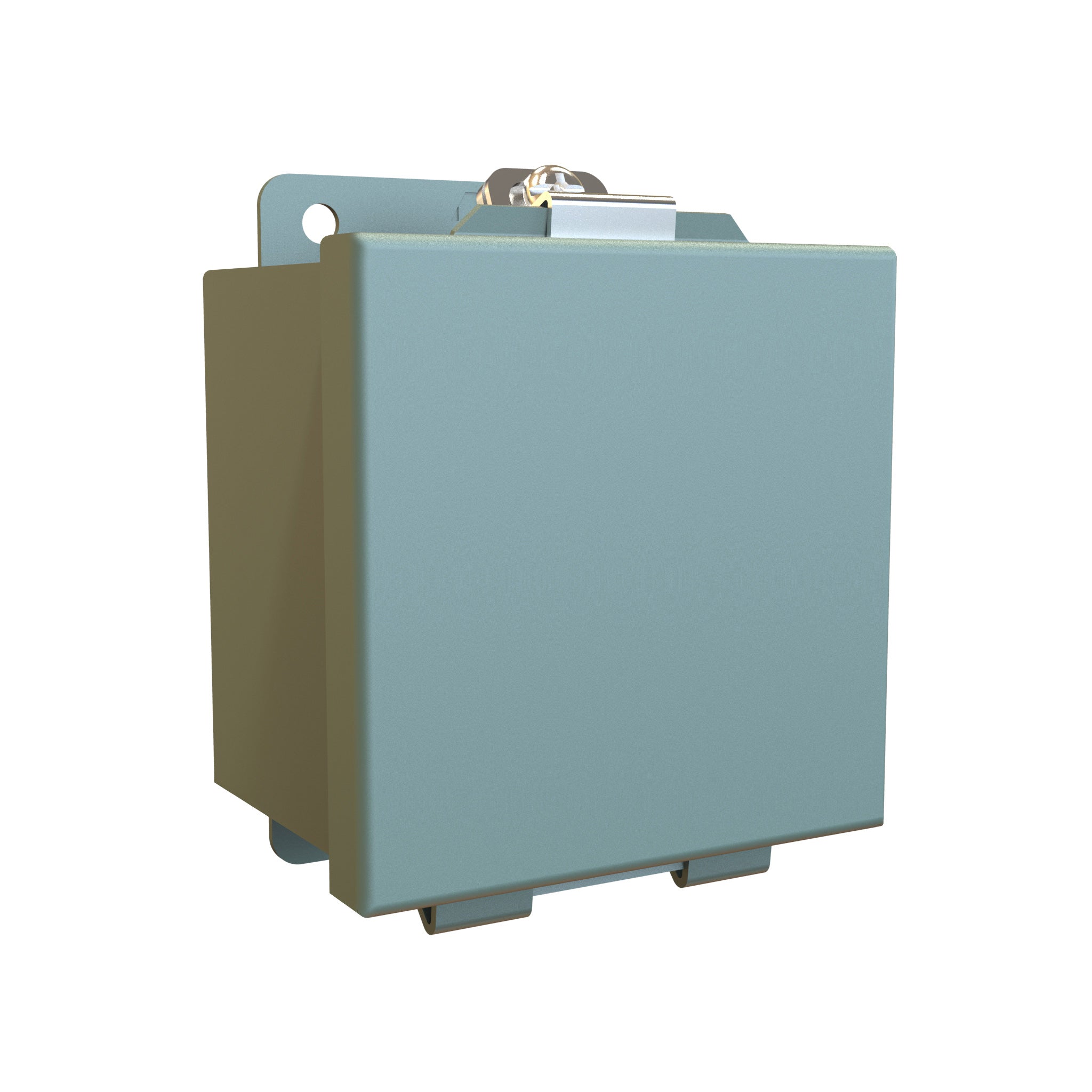

1414 Series Hammond MFG Painted Steel Enclosures
1414 Series Hammond MFG Painted Steel Enclosures 1414 Series Hammond MFG Painted Steel Enclosures Specs
$48.39 $64.66
Product Information
Part Number: 1414A
  • Description
  • Specifications
  • NEMA Ratings
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides a degree of protection from falling dirt, dust, oil and water.

    Standards

    • UL 508A Type 12 and 13
    • CSA Type 12 and 13
    • NEMA Type 12 and 13
    • IEC 60529, IP54
  • Specifications

    Please click a part number below to view the product specifications.

    Product Dimensions

    Part Number

    4x4x3 in. 1414A
    6x4x3 in. 1414C
    8x6x3.5 in. 1414G
    4x4x4 in. 1414A4
    6x4x4 in. 1414C4
    6x6x4 in. 1414E
    10x8x4 in. 1414I
    12x10x5 in. 1414K
    14x12x6 in. 1414M6
    16x14x6 in. 1414O6
    14x12x8 in. 1414M8
    16x14x10 in. 1414O10
  • Type 12

    Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

    Type 13

    Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
