Hammond MFG

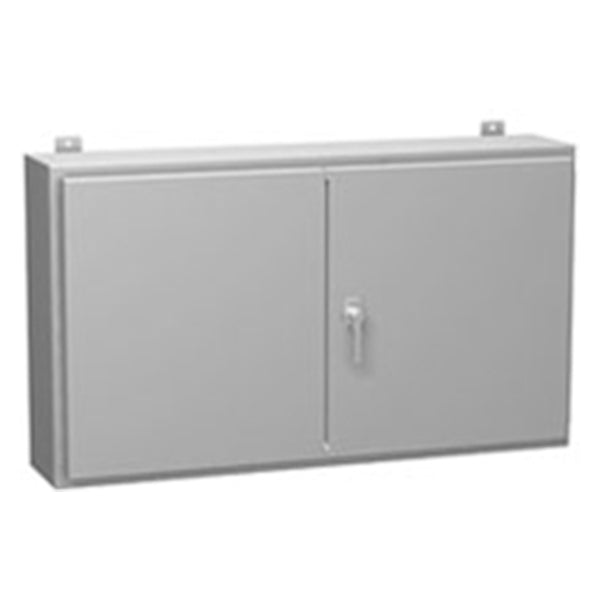

Hammond 1422 Series Two Door Continuous Hinge with 3pt Handle - Inner Panel Included

In stock
SKU: 1422P8
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
$1,060.73
Available Sizes

Specifications

Product Type Enclosures
Material Painted Steel
Application Indoor
IP Equivalent IP54
Height 24
Width 42
Depth 8
Cover Type Hinged Cover, Gasketed Cover
Latch Type 3 Pt Handle
Mount Type Wall Mount
Mounting Plate Included Yes
  • Description
  • Specifications
  • NEMA Ratings

  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water.

    Standards

    • UL 508A Type 12
    • CSA Type 12
    • NEMA Type 12
    • IEC 60529, IP54

  • Specifications

    Please click a part number below to view the product specifications.

    Product Dimensions

    Part Number
    24x42x8 in. 1422P8
    24x48x8 in. 1422PW8
    24x42x10 in. 1422P10
    30x42x10 in. 1422R10
    30x48x10 in. 1422RW10
    30x60x10 in. 1422RX10
    36x42x12 in. 1422UV12
    36x48x12 in. 1422UW12
    36x60x12 in. 1422UX12
    42x42x12 in. 1422VV12
    42x48x12 in. 1422VW12
    42x60x12 in. 1422VX12
    48x48x12 in. 1422WW12

  • Type 12

    Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

Additional Accessories
  • 12
