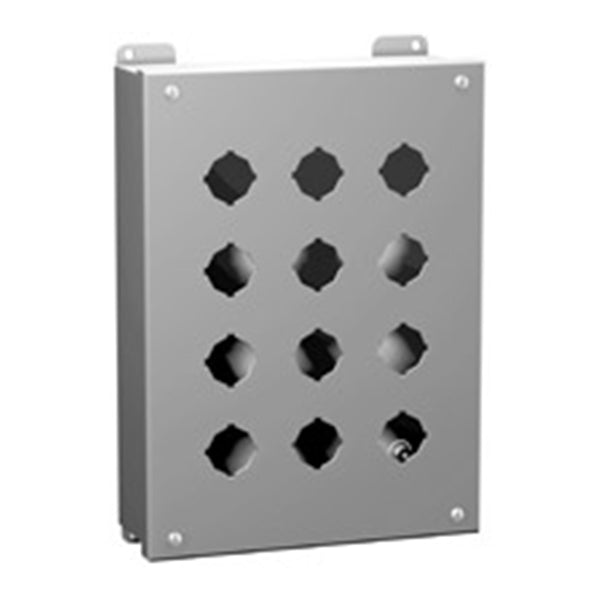

Hammond 1435 Series Mild Steel Pushbutton Enclosures
Hammond MFG
- Description
- Specifications
- NEMA Ratings
-
Designed to accept 22mm miniature oil tight pushbuttons, switches and pilot lights. While Providing protection from dirt, dust, oil, and water.
Standards
- UL 508A Type 12 and 13
- CSA Type 12 and 13
- NEMA Type 12 and 13
- IEC 60529, IP54
- Appropriate components are required to maintain these standards.
-
Specifications
Please click a part number below to view the product specifications.
Number of Holes
Part Number
1 - 30.5mm 1435A 2Â - 30.5mm 1435B 3Â - 30.5mm 1435C 4Â - 30.5mm 1435D 4Â - 30.5mm 1435F 6Â - 30.5mm 1435H 9Â - 30.5mm 1435K 12Â - 30.5mm 1435O 16Â - 30.5mm 1435S 1Â - 22.5mm 1435MA 2Â - 22.5mm 1435MB 3Â - 22.5mm 1435MC 4Â - 22.5mm 1435MD 4Â - 22.5mm 1435MF 6Â - 22.5mm 1435MH 9Â - 22.5mm 1435MK 12Â - 22.5mm 1435MO 16Â - 22.5mm 1435MS -
Type 12
Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).
Type 13
Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
