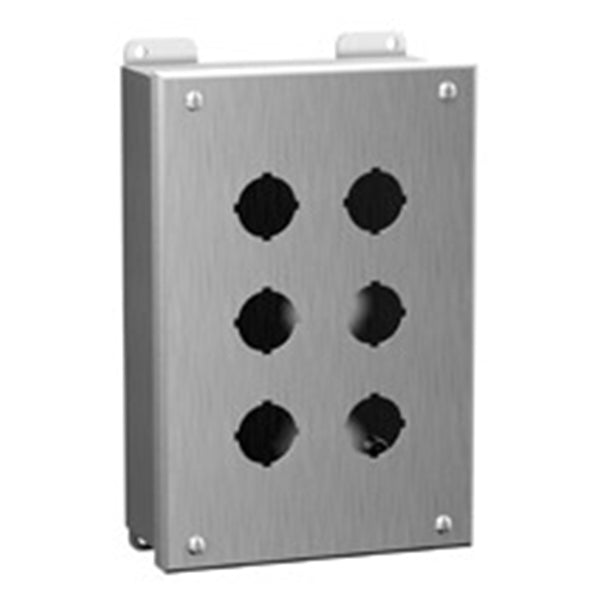

1435 SS Series Hammond MFG Stainless Steel Enclosure
$176.77
Product Information
Part Number: 1435SSA
  • Description
  • Specifications
  • NEMA Ratings
  • Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights. While Providing protection from dirt, dust, oil and large amounts of water from any angle, or where highly corrosive conditions exist.

    Standards

    • UL 508A Type 4 and 4X
    • CSA Type 4 and 4X
    • NEMA Type 3R, 4 and 4X
    • IEC 60529, IP66
    • Appropriate components are required to maintain these standards.
  • Specifications

    Please click a part number below to view the product specifications.

    Number of Holes

     Part Number

    1 - 30.5mm 1435SSA
    2 - 30.5mm 1435SSB
    3 - 30.5mm 1435SSC
    4 - 30.5mm 1435SSD
    6 - 30.5mm 1435SSH
    9 - 30.5mm 1435SSK
    12 - 30.5mm 1435SSO
    1 - 22.5mm 1435MSSA
    2 - 22.5mm 1435MSSB
    3 - 22.5mm 1435MSSC
    4 - 22.5mm 1435MSSD
    6 - 22.5mm 1435MSSH
    9 - 22.5mm 1435MSSK
    12 - 22.5mm 1435MSSO
  • Type 3R

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4X

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.
