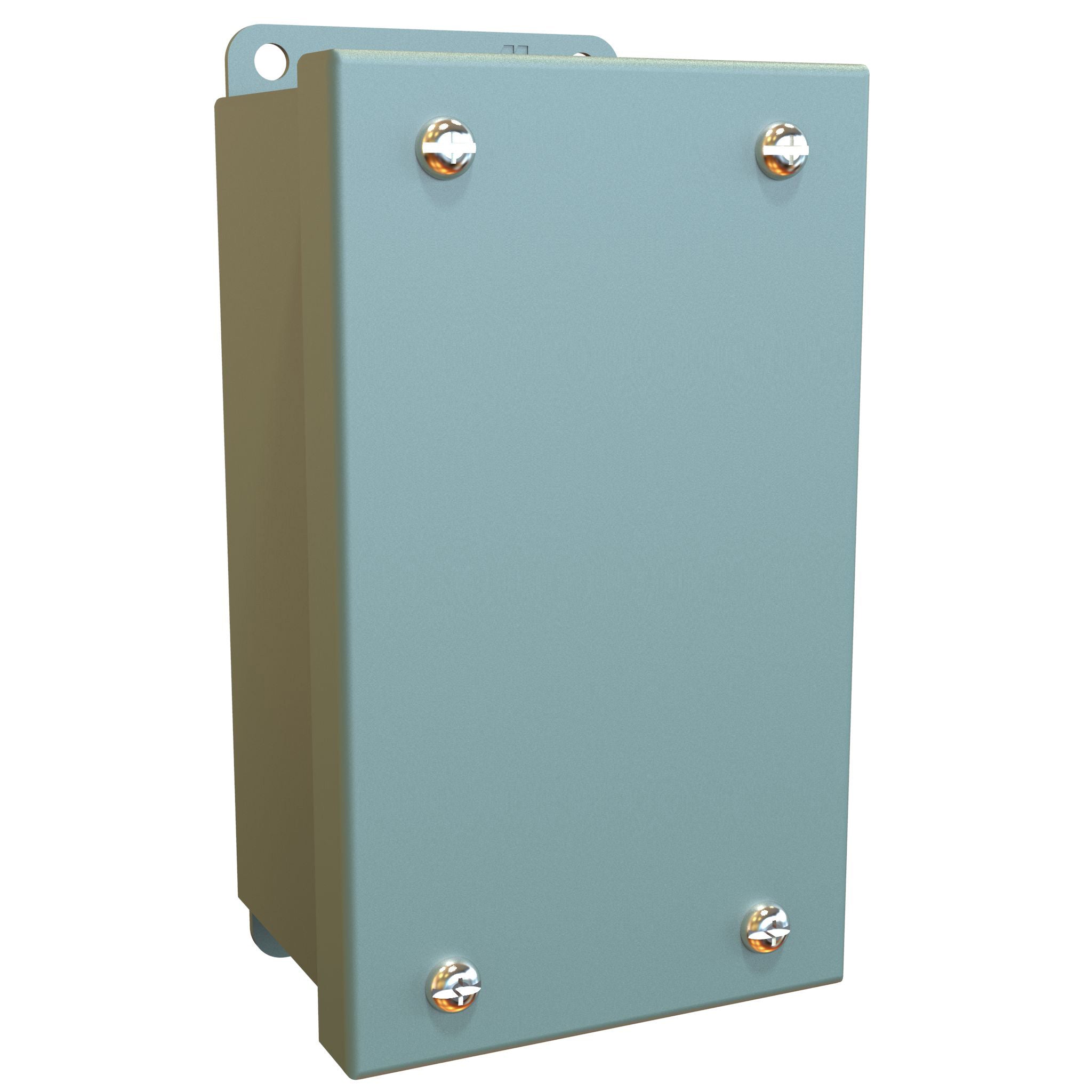

1438 Series Extra Deep Hammond MFG Painted Steel Enclosures
$58.57 $64.63
Product Information
Part Number: 1438A
  • Descriptions
  • Specifications
  • NEMA Ratings
  • Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures. Provides a degree of protection from falling dirt, dust, oil and water.

    Standards

    • UL 508A Type 12 and 13
    • CSA Type 12 and 13
    • NEMA Type 12 and 13
    • IEC 60529, IP54
  • Specifications

    Please click a part number below to view the product specifications.

    Product Dimensions

    Part Number

    5x4.31x4.75 in. 1438A
    7x4.31x4.75 in. 1438B
    9x4.31x4.75 in. 1438C
    11x4.31x4.75 in. 1438D
    8.25x6.56x4.75 in. 1438F
    10.5x6.56x4.75 in. 1438H
    10.5x8.81x4.75 in. 1438K
    12.75x8.81x4.75 in. 1438O
    12.75x11.06x4.75 in. 1438S
    15x11.06x4.75 in. 1438V
  • Type 12

    Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

    Type 13

    Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
