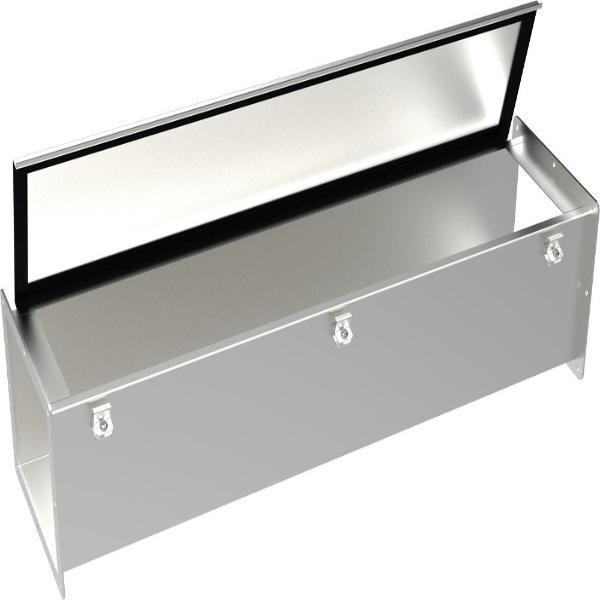

Hammond 1487SS Series- 4x4 Nema 4X Pull Through Wireway
$235.31 $297.52
Product Information
Part Number: 1487C12SS
  • Description
  • Specifications
  • More Infomation
  • Application

    • Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
    • Ideal for connecting machines to control panels or power sources.

    Standards

    • UL 870 Type 1 (unless marked¹)
    • CSA Type 1 (unless marked¹)
    • Complies with
      • NEMA Type 4, 4X and 12
      • IEC 60529, IP66
  • Please click a part number below to view the product specifications.

    Description Part No.
    12" Section 1487C12SS
    24" Section 1487C24SS
    36" Section 1487C36SS
    48" Section 1487C48SS
    60" Section 1487C60SS
    120" Section 1487C120SS
  • Construction

    • Bodies and covers are formed from 14 gauge 304 stainless steel with 10 gauge flanges.
    • Smooth continuously welded seams.
    • Interior surfaces are smooth to prevent wire damage during installation.
    • Butt hinged covers are secured with easily operated screw clamps.
    • Oil resistant gaskets are permanently secured.
    • Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
    • One gasket kit, complete with hardware is provided with each straight section or fitting.

    Finish

    • Sections and fittings are natural stainless steel with a smooth brushed finish.
