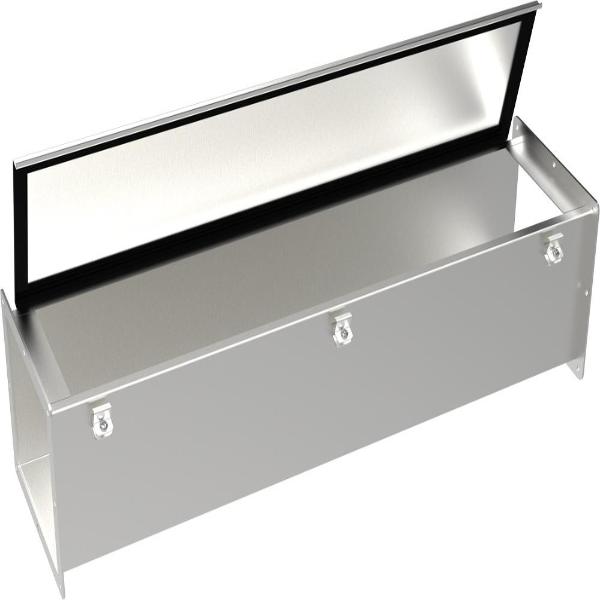

Hammond 1487SS Series- Nema 4X Pull Through Wireway (6 X 6 Multi-Length)

• Description
• Specifications
• More Infomation

• Application

  • Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
  • Ideal for connecting machines to control panels or power sources.

  Standards

  • UL 870 Type 1 (unless marked¹)
  • CSA Type 1 (unless marked¹)
  • Complies with
    • NEMA Type 4, 4X and 12
    • IEC 60529, IP66

• Please click a part number below to view the product specifications.

  Description	Part No.
  12" Section	1487D12SS
  24" Section	1487D24SS
  36" Section	1487D36SS
  48" Section	1487D48SS
  60" Section	1487D60SS
  120" Section	1487D120SS

• Construction

  • Bodies and covers are formed from 14 gauge 304 stainless steel with 10 gauge flanges.
  • Smooth continuously welded seams.
  • Interior surfaces are smooth to prevent wire damage during installation.
  • Butt hinged covers are secured with easily operated screw clamps.
  • Oil resistant gaskets are permanently secured.
  • Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
  • One gasket kit, complete with hardware is provided with each straight section or fitting.

  Finish

  • Sections and fittings are natural stainless steel with a smooth brushed finish.

• 1
• 4
• 4X
• 12
