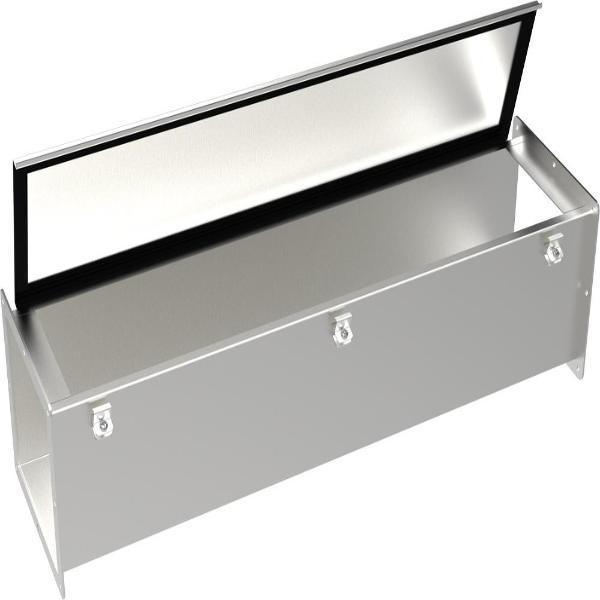

1487SS Series- Nema 4X Pull Through Wireway (8 X 8 Multi-Length)Hammond MFG
- More Infomation
- Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
- Ideal for connecting machines to control panels or power sources.
- UL 870 Type 1 (unless marked¹)
- CSA Type 1 (unless marked¹)
- Complies with
- NEMA Type 4, 4X and 12
- IEC 60529, IP66
Please click a part number below to view the product specifications.
Description Part No. 12" Section 1487E12SS 24" Section 1487E24SS 36" Section 1487E36SS 48" Section 1487E48SS 60" Section 1487E60SS 120" Section 1487E120SS
- Bodies and covers are formed from 14 gauge 304 stainless steel with 10 gauge flanges.
- Smooth continuously welded seams.
- Interior surfaces are smooth to prevent wire damage during installation.
- Butt hinged covers are secured with easily operated screw clamps.
- Oil resistant gaskets are permanently secured.
- Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
- One gasket kit, complete with hardware is provided with each straight section or fitting.
- Sections and fittings are natural stainless steel with a smooth brushed finish.
