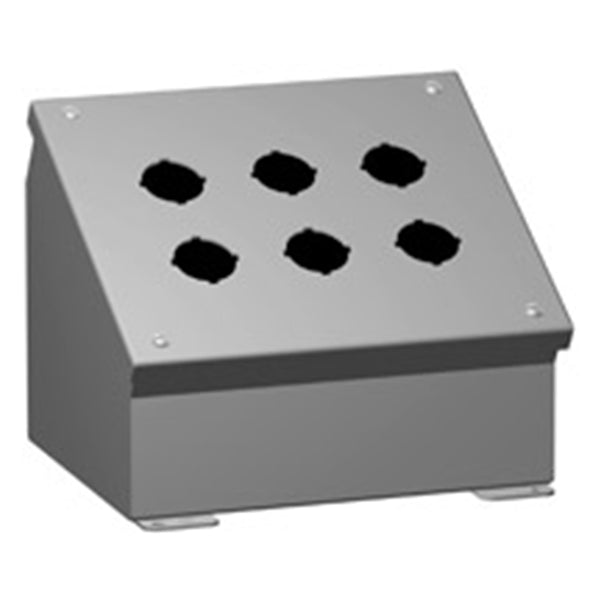

1490 Series Hammond MFG Painted Steel Enclosures
$66.60 $71.37
Product Information
Part Number: 1490D1
  • Description
  • Specifications
  • NEMA Ratings
  • Designed to accept 22mm miniature oil tight pushbuttons, switches and pilot lights. Ideal for wall or surface mounting to provide the necessary control slope. While Providing protection from dirt, dust, oil, and water.

    Standards

    • UL 508A Type 12 and 13
    • CSA Type 12 and 13
    • NEMA Type 12 and 13
    • IEC 60529, IP54
    • Appropriate components are required to maintain these standards.
  • Specifications

    Please click a part number below to view the product specifications.

    Number of Holes

    Part Number

    1 - 30.5mm 1490D1
    - 30.5mm 1490D2
    - 30.5mm 1490D3
    - 30.5mm 1490D4
    - 30.5mm 1490G4
    - 30.5mm 1490G6
    - 30.5mm 1490G8
    - 30.5mm 1490H9
    10 - 30.5mm 1490G10
    12 - 30.5mm 1490G12
    12 - 30.5mm 1490J12
    16 - 30.5mm 1490G16
    16 - 30.5mm 1490J16
    20 - 30.5mm 1490J20
    25 - 30.5mm 1490K25
    30 - 30.5mm 1490K30
    - 22.5mm 1490MD1
    - 22.5mm 1490MD2
    - 22.5mm 1490MD3
    - 22.5mm 1490MD4
    - 22.5mm 1490MG4
    - 22.5mm 1490MG6
    - 22.5mm 1490MG8
    - 22.5mm 1490MH9
    10 - 22.5mm 1490MG10
    12 - 22.5mm 1490MG12
    12 - 22.5mm 1490MJ12
    16 - 22.5mm 1490MG16
    16 - 22.5mm 1490MJ16
    20 - 22.5mm 1490MJ20
    25 - 22.5mm 1490MK25
    30 - 22.5mm 1490MK30
  • Type 12

    Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

    Type 13

    Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
