Altelix 14x11x5 PC + ABS Weatherproof NEMA Enclosure with Hinged Door & Aluminum Mounting Plate
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Application | Outdoor |
| IP Equivalent | IP55 |
| Height | 14 |
| Width | 11 |
| Depth | 5 |
| Cover Type | Gasketed Cover |
| Latch Type | Padlockable Latch, Tamper proof locking screw |
| Mount Type | Wall Mount |
| Mounting Plate Included | Yes |
| Mounting Plate Material | Aluminum |
| Mounting Plate Dimensions | 9x12 |
- Description
-
Extreme Weatherproof Protection with Aluminum Equipment Mounting Plate

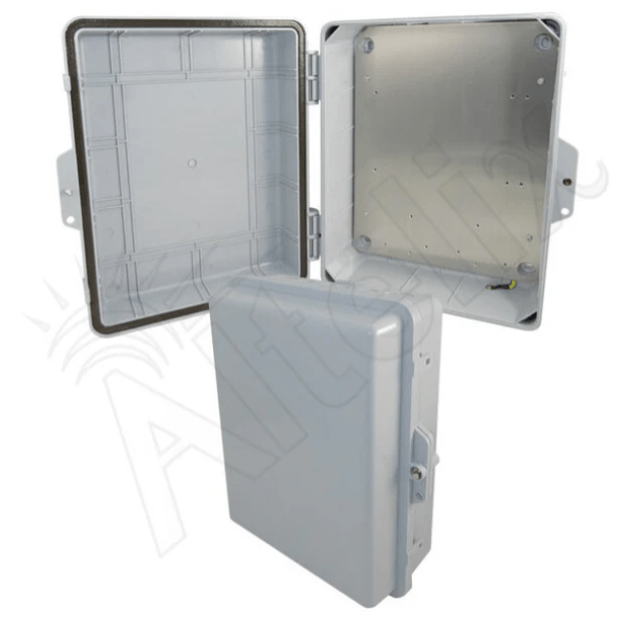

The Altelix NP141105P PC+ABS NEMA Enclosure with Aluminum Equipment Mounting Plate is an industrial quality weatherproof NEMA enclosure designed to offer extreme protection for small electronic devices outdoors and in harsh environments.
Construction and Features

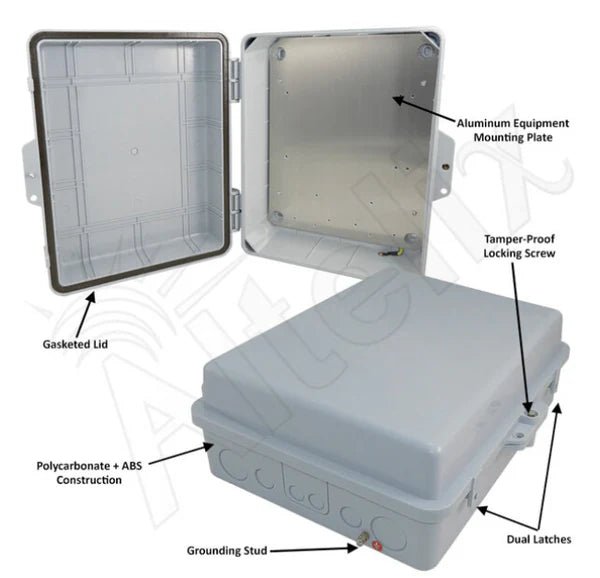

This enclosure includes a 2.0mm thick finished aluminum equipment mounting plate. The enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. It meets or exceeds NEMA Type 3, 3X and IEC IP55.
Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets that can be installed in the knock-out holes for a weather resistant seal. The included accessory kit contains wall anchors, zip ties, wire management loops, grounding plate and ground wire, door locking key and more.
Pole Mount Available
An optional pole mounting kit (NMK-0002) is also available for this enclosure.
Additional Accessories
