14x11x5 Polycarbonate + ABS Vented Weatherproof NEMA Enclosure with Aluminum Mounting Plate 120 VAC Outlets and Power CordAltelix

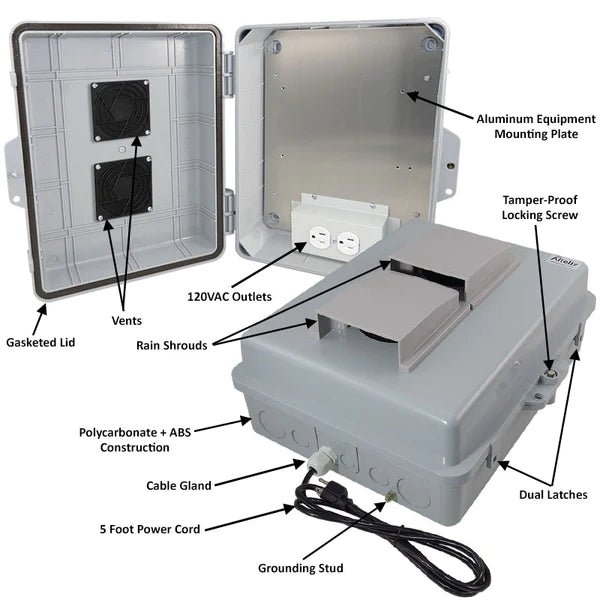

The Altelix NP141105VA1C Vented Polycarbonate + ABS NEMA Weatherproof Enclosure with 120VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.
PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.
This enclosure features two 3.5 inch air vents. Rain shields help prevent rain water from entering the enclosure.
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with two 120VAC power outlets. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A ground lug is provided on the side of the enclosure. A cable grommet on the enclosure allows cables to be connected to internal devices. Knock-outs are also provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit
For additional protection this enclosure is also available with a GFCI outlet. See NP141105VA1C-GFI.
Aluminum Equipment Mounting Plate
The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit (NMK-0002) is also available for installation on poles up to 8 inches in diameter.
Material PC+ABS Polycarbonate / ABS Blend Color Gray Voltage 120VAC Max Load 10A @ 120VAC Outer Dimensions 13.4 x 10.4 x 4.7 Inches
(340 x 265 x 120 mm)
Inner Dimensions 12.6 x 9.6 x 4.6 Inches
(321 x 244 x 116 mm)
Mounting Plate Material 0.10 in (2.5 mm) Aluminum Mounting Plate Dimensions 11.6 x 9.0 in. (295 x 229 mm) Weight 4.7 lbs. (2.1 kg) Power Cord Length 5 Feet (1.5m) Ratings NEMA Type 3R, 3RX / IP24 Flame Rating Meets UL94-V0 Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 0.78 in. (20 mm)
(4) 1.30 in. (33 mm)
