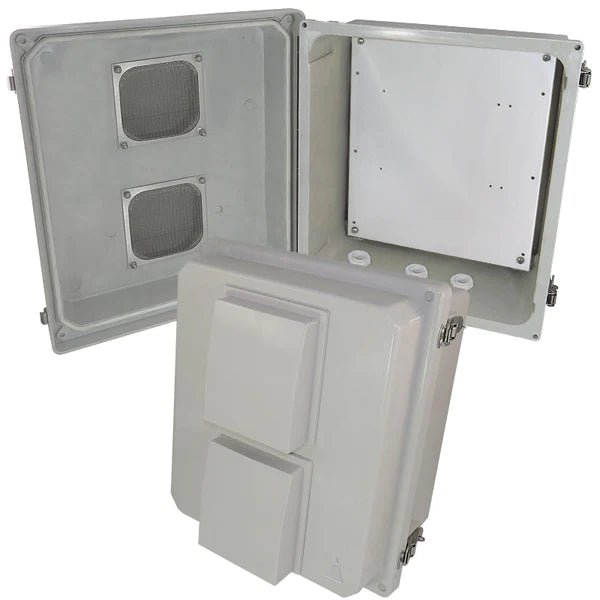

Altelix 14x12x8 Fiberglass Vented Weatherproof NEMA Enclosure with Blank Aluminum Mounting Plate
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Application | Indoor, Outdoor |
| IP Equivalent | IP24 |
| Height | 14 |
| Width | 12 |
| Depth | 8 |
| Inner Dimensions | 13.0 x 11.0 x 7.5 Inches |
| Cover Type | Gasketed Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Wall Mount |
| Specialty Enclosure | RF Transparent WiFi Enclosure |
| Mounting Plate Included | Yes |
| Mounting Plate Material | Aluminum |
| Cooling & Heating | Vents Only |
- Description
-
Vented NEMA Enclosure with Aluminum Equipment Mounting Plate

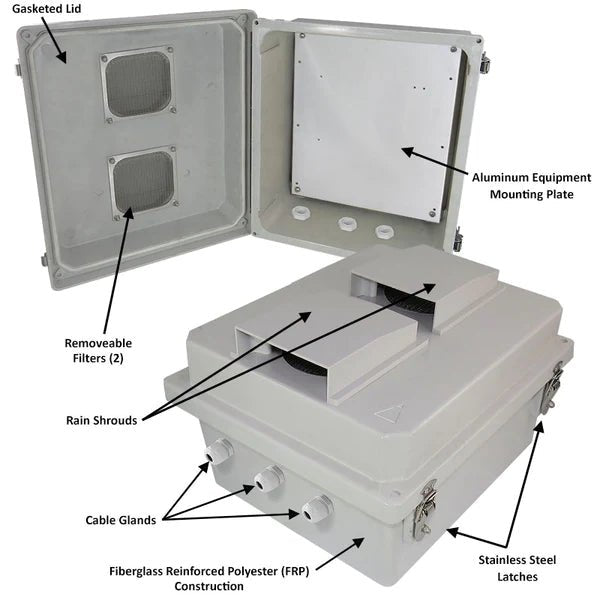

The Altelix NF141208VP features two 4 inch air vents covered by rain shields, with cleanable screens. It is ideal for protecting equipment from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.
Aluminum Equipment Plate
This enclosure features an easy to drill aluminum equipment mounting plate. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. The enclosure features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.
Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).Material Fiberglass Reinforced Polyester Color Gray Outer Dimensions 15.75 x 13.83 x 8.73 Inches
(401 x 352 x 222 mm)Inner Dimensions 13.87 x 11.97 x 8.4 Inches
(352 x 304 x 213 mm)Mounting Plate Material 0.10 in (2.5 mm) Aluminum Mounting Plate Dimensions 10.9 x 12.8 in. (276 x 324 mm) Weight 11.1 lbs. (5.0 kg) Ratings NEMA Type 3R, 3RX / IP24 Flame Rating UL94-5V
