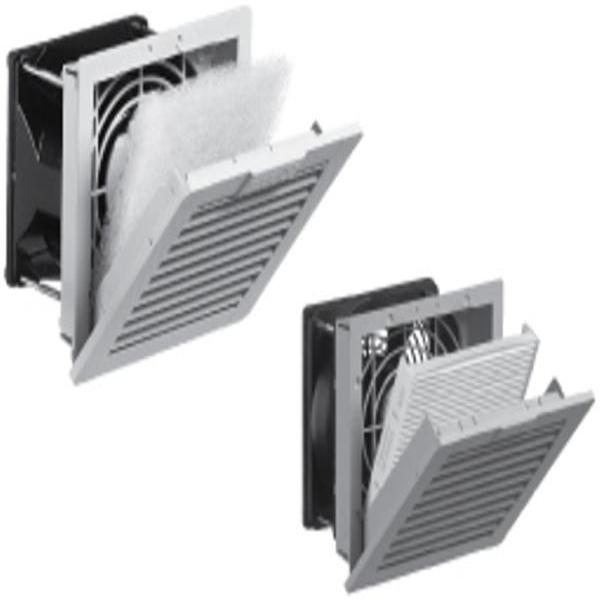

Hammond 17-38 CFM Filterfans PF GEN4 Series
Hammond MFG
- Specifications

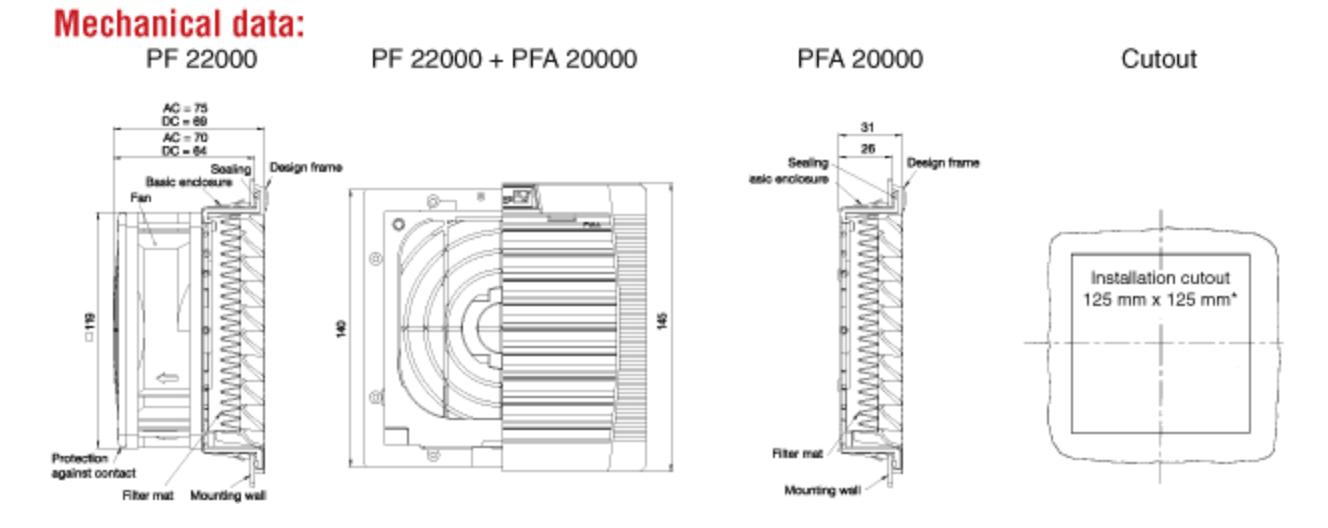

- Drawings
- Product DataÂ
-
- Maintains a UL Tested NEMA Type 12 seal against enclosure
- UL Recognized to UL 508A, category NITW2/8, UL File #E175229

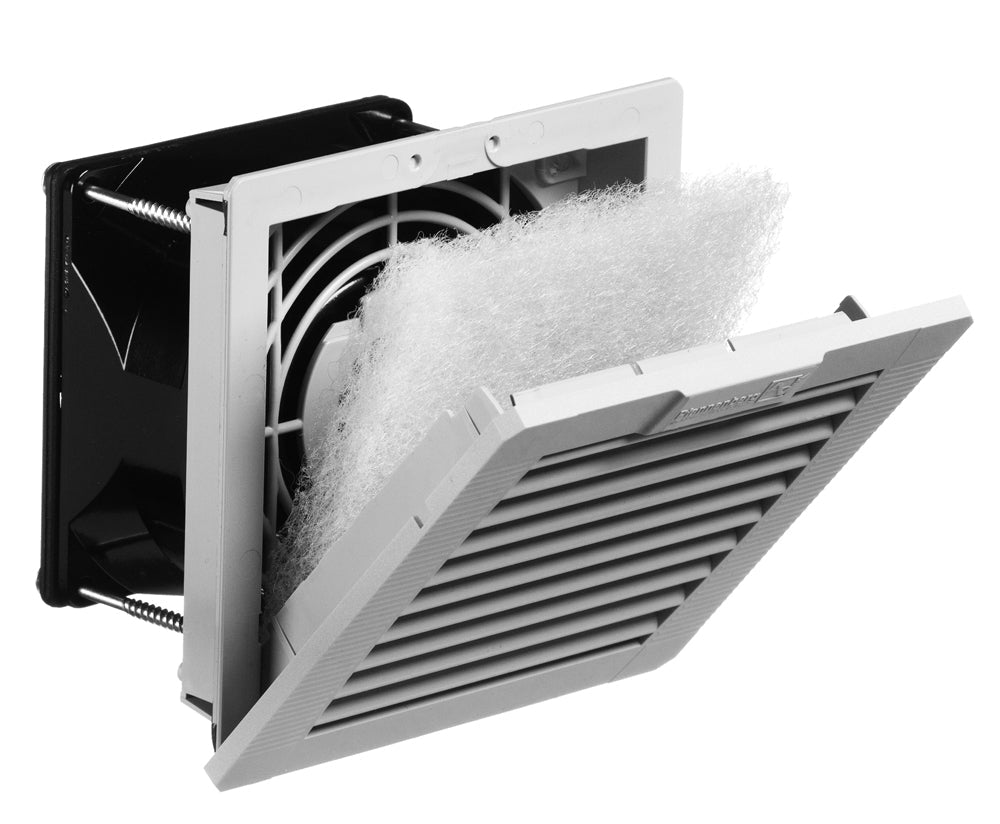

- Patented “Click & Fit†design provides a hardware free installation!
- Plastic made from strong, heat resistant (ABS-FR), UL 94 VO fire approved material
- Fan Motor is CSA Approved
- Options: Black Grills
-
Drawings
Please click a part number below to view the product specifications.
Part Number Black RAL 9011 Voltage Power Exhaust Filter Black RAL9011 PF11000T12BK 115V 11W PFA10000BK PF11000T12BK230 230V 11W PFA10000BK PF11000T12BK24 24V 2W PFA10000BK PF22000T12BK 115V 20W PFA20000BK PF22000T12BK230 230V 18W PFA20000BK PF22000T12BK24 24V 5W PFA20000BK -

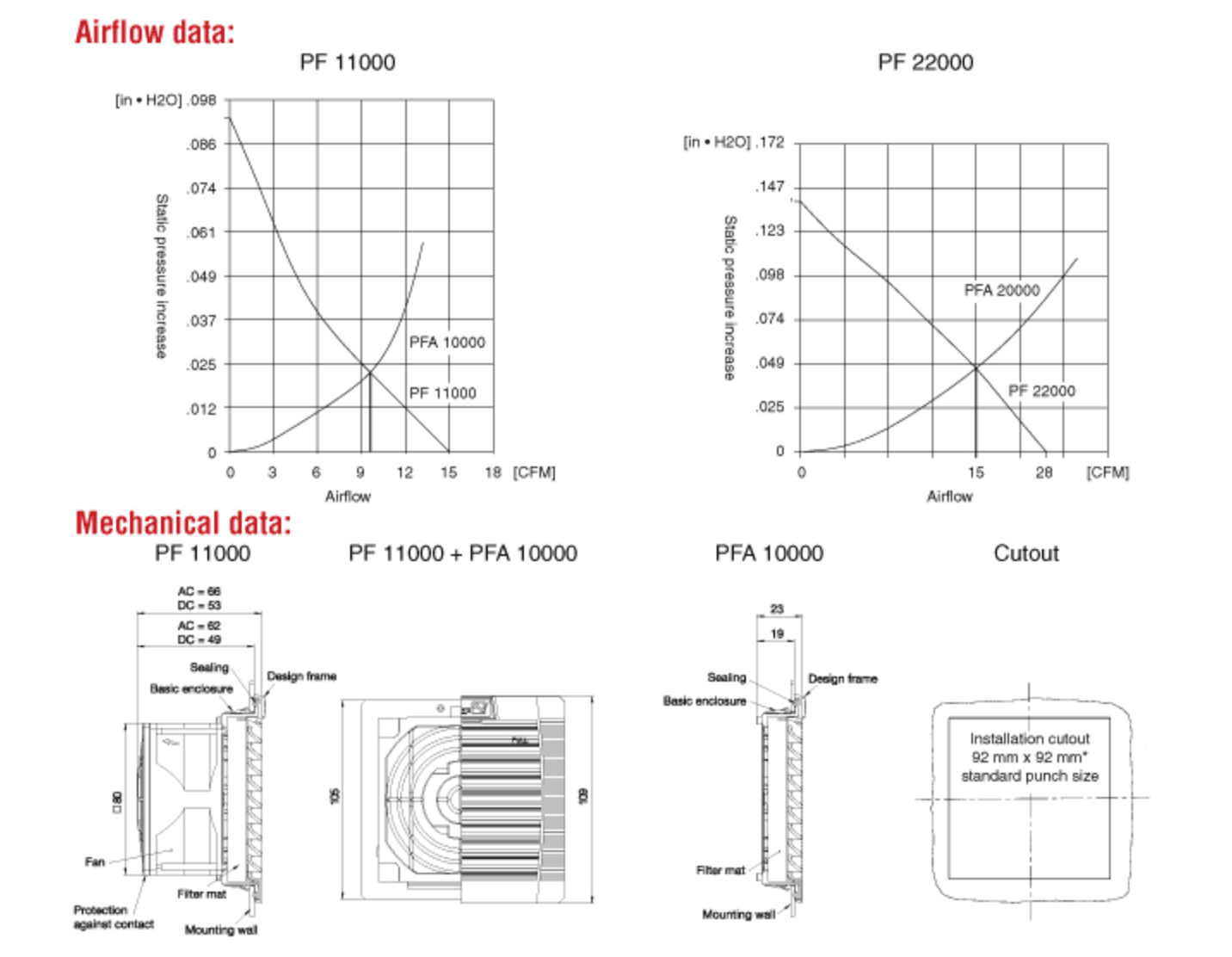

Airflow data PF 11000 PF 22000 PFA 1-20000 Filter material Type 12 filter mat Type 12 filter mat Type 12 filter mat Unimpeded airflow 17 CFM 38 CFM - Capacity free-flow 10 W/K 21 W/K - Airflow in combination 11 CFM 28 CFM - (Filterfan + Exhaust Filter) (PF 11000 + PFA 10000) (PF 22000 + PFA 20000) - Capacity in combination 6 W/K 15 W/K - (Filterfan + Exhaust Filter) (PF 11000 + PFA 10000) (PF 22000 + PFA 20000) - Max. static pressure (Airflow = 0 m3/h) 38 Pa 57 Pa - Filtration efficiency 0.88 0.91 88/91% Filter material grade G 3 (DIN EN 779) G 4 (DIN EN 779) G3/ G4 (DIN EN 779) Duty cycle 1 1 - PF 11000 PF 11000 PF 22000 PF 22000 PFA 10000 Technical data AC DC AC DC PFA 20000 Outside dimensions in mm 109 x 109 x 62 109 x 109 x 49 145 x 145 x 70 145 x 145 x 64 109 x 109 x 26/ (height x width x installation depth) 145 x 145 x 26 Bearing type sleeve bearings ball bearings sleeve bearings ball bearings - Fitting position vertical any vertical any - Construction housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO Weight 0.55 kg 0.16 kg 0.7 kg 0.44 kg 0.06 kg / 0.12 kg Safety protection in accordance with DIN 31 001 Color LG RAL 7035, Light Grey Color BK RAL 9011 Black Connection 2 wires, 310 mm long terminal strip 2 wires, 310 mm long System of protection NEMA Type 12, IP 55 (EN 60 529), when installed as specified
