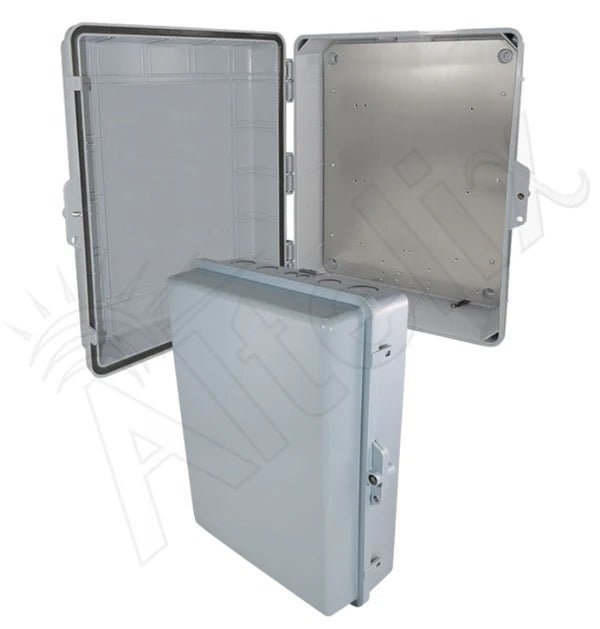

Altelix 17x14x6 PC + ABS Weatherproof NEMA Enclosure with Hinged Door & Aluminum Mounting Plate
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Application | Outdoor |
| IP Equivalent | IP55 |
| Height | 17 |
| Width | 14 |
| Depth | 6 |
| Inner Dimensions | 14.0 x 9.0 x 4.0 Inches |
| Cover Type | Gasketed Cover |
| Latch Type | Tamper proof locking screw, Padlockable Latch |
| Mount Type | Wall Mount |
| Specialty Enclosure | RF Transparent WiFi Enclosure |
| Mounting Plate Included | Yes |
| Mounting Plate Material | Aluminum |
- Description
-
Vented Fan Cooled Weatherproof Polycarbonate + ABS Construction For Extreme Durability
The Altelix NP120907VFA1C features two 2¼" inch air vents and a thermostat controlled cooling fan. It is ideal for protecting small devices from harsh environments and tampering, while allowing ventilation for installed equipment or batteries. It features an extra deep lid providing additional depth.

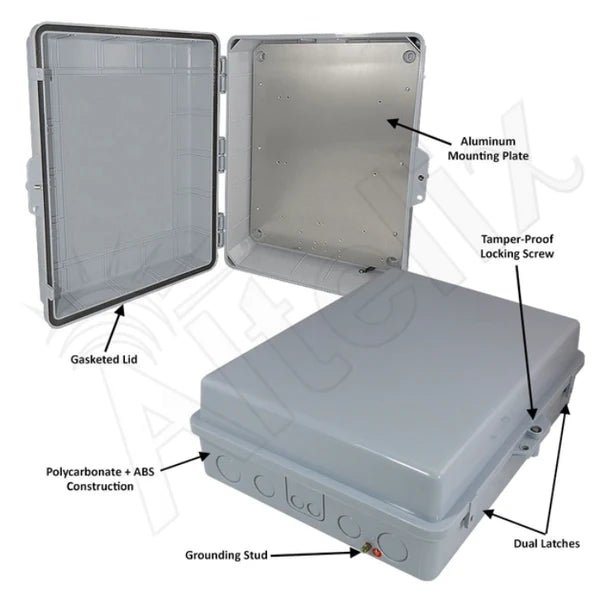

Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.
Cooling Fan Ventilation
The NP120907VFA1C features two 2¼" inch air vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlet leaving it available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.
Power
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with a 120VAC power outlet. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A cable grommet on the enclosure allows cables to be connected to internal devices. Knock-outs are also provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.

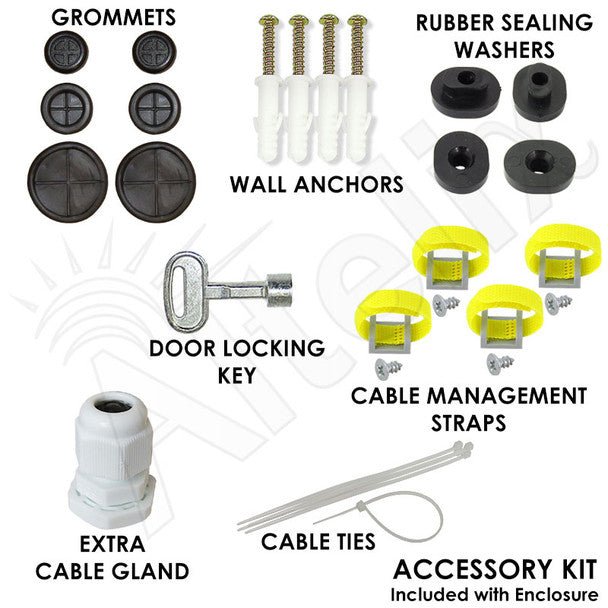

Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
Pole Mount Available
A pole mounting kit is also available for this enclosure. The NMKG-150-08 attaches to the rear of the enclosure and allows it to be mounted to poles and fence posts up to 9.5 inches in diameter.
Additional Accessories
