Altelix 17x14x6 PC + ABS Weatherproof Vented NEMA Enclosure with Hinged Door
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Application | Outdoor |
| IP Equivalent | IP24 |
| Height | 17 |
| Width | 14 |
| Depth | 6 |
| Inner Dimensions | 14.0 x 9.0 x 4.3 Inches |
| Cover Type | Gasketed Cover |
| Latch Type | Padlockable Latch, Tamper proof locking screw |
| Mount Type | Wall Mount |
| Mounting Plate Included | No |
| Cooling & Heating | Vents Only |
- Description
-
Vented NEMA Enclosure

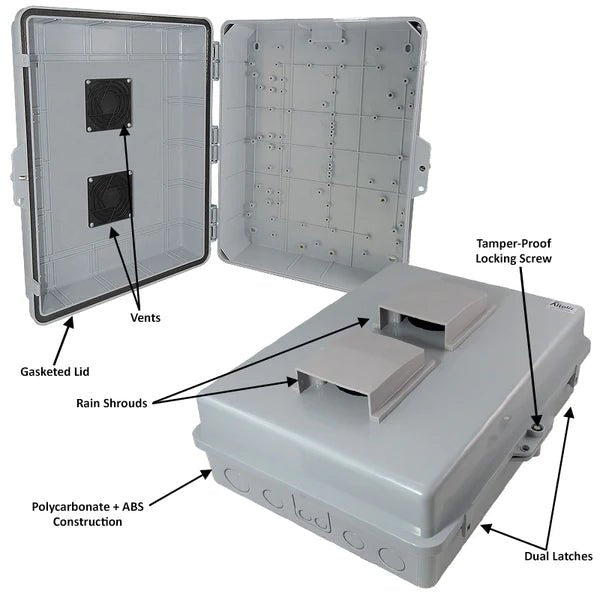

The Altelix NP171406V features two 3 inch air vents covered by rain shields, with cleanable screens. It is ideal for protecting equipment from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.
Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. Meets or exceeds NEMA Type 3R, 3RX and IEC IP24.
Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit (NMK-0001) is also available for installation on poles up to 8 inches in diameter.
