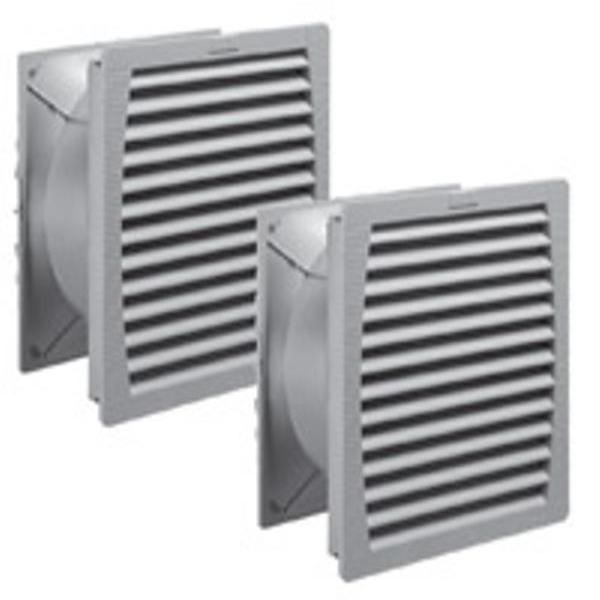

297-560 CFM Filterfans PF GEN4 Series
$339.07 $428.72
Product Information
Part Number: PF65000T12BK
  • Specifications
  • Drawings
  • Product Data
    • Maintains a UL Tested NEMA Type 12 seal against enclosure
    • UL Recognized to UL 508A, category NITW2/8, UL File #E175229
    • Patented “Click & Fit” design provides a hardware free installation!
    • Plastic made from strong, heat resistant (ABS-FR), UL 94 VO fire approved material
    • Fan Motor is CSA Approved
    • Options: Black Grills

    • Drawings

      Please click a part number below to view the product specifications.

      Part Number Black RAL9011 Voltage Power Exhaust Filter Black RAL9011
      PF65000T12BK 115V 90W PFA60000BK
      PF65000T12BK230 230V 80W PFA60000BK
      PF66000T12BK 115V 160W PFA60000BK
      PF66000T12BK230 230V 155W PFA60000BK
      PF67000T12BK 115V 195W PFA60000BK
      PF67000T12BK230 230V 170W PFA60000BK

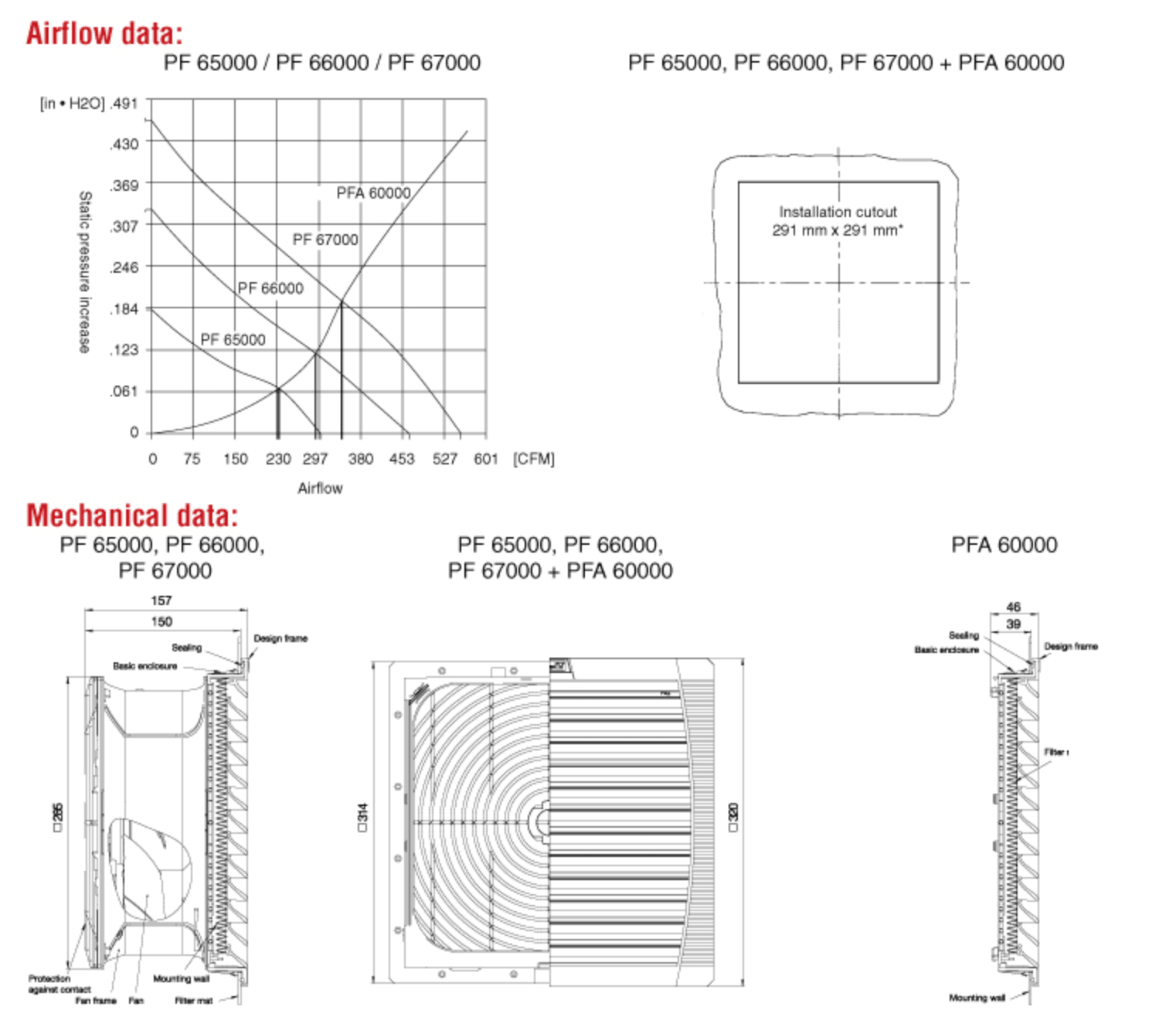

    • Airflow data PF 65000 PF 66000 PF 67000 PFA 60000
      Filter material Type 12 Filtermat Type 12 Filtermat Type 12 Filtermat Type 12 Filtermat
      Unimpeded airflow 297 CFM 462 CFM 560 CFM -
      Capacity free-flow IP 54: 160 W/K / 160 W/K IP 54: 213 W/K / 218 W/K IP 54: 282 W/K / 292 W/K -
      IP 55: 168 W/K / 168 W/K IP 55: 257 W/K / 262 W/K IP 55: 308 W/K / 317 W/K -
      Airflow in combination 230 CFM 295 CFM 368 CFM -
      (Filterfan + Exhaust Filter) (PF 65000 + PFA 60000) (PF 66000 + PFA 60000) (PF 67000 + PFA 60000) -
      Capacity in combination 127 W/K 167 W/K 208 W/K -
      (Filterfan + Exhaust Filter) (PF 65000 + PFA 60000) (PF 66000 + PFA 60000) (PF 67000 + PFA 60000) -
      Max. static pressure (Airflow = 0) 74 Pa 134 Pa 187 Pa -
      Filtration efficiency 0.91 0.91 0.91 0.91
      Filter material grade G 4 (DIN EN 779) G 4 (DIN EN 779) G 4 (DIN EN 779) G 4 (DIN EN 779)
      Duty cycle 1 1 1 -
      Technical data PF 65000 PF 66000 PF 67000 PFA 60000
      Outside dimensions in mm 320 x 320 x 150 320 x 320 x 150 320 x 320 x 150 320 x 320 x 39
      (height x width x installation depth)
      Bearing type ball bearings ball bearings ball bearings -
      Fitting position any, horizontal airflow preferred any -
      Construction housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO
      Weight 3.2 kg 3.2 kg 3.7 kg 0.7 kg
      Safety protection in accordance with DIN 31 001 -
      Color RAL 7035, Light Grey
      Connections cage clamp cage clamp cage clamp -
      Supplementary data PF 65000 PF 66000 PF 67000
      Operating temperature – 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)
      Storage temperature – 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)
      Max. relative humidity 0.9
      System of protection NEMA Type 12, IP 55 (EN 60 529), when installed as specified
      Basic Accessories parts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostat
      Approvals UL Recognized
      * Tolerance installation cutout 291 + 1/-0 thickness of material to 2 mm
      292 + 1/-0 thickness of material > 2 mm < 3 mm
