Hammond HLP Series UL2416 Low-Profile Wall-Mount Rack Cabinet (4U, 6U & 8U) HLP Series Low-Profile Wall-Mount Rack Cabinet

In stock
SKU: HLP4U31BK
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
Regular price $593.00
Rack Units
Height
Finish

Specifications

Product Type Racks & Cabinets
Height 31
Width 27.50
Depth 11.15
Cover Type Hinged Cover
Latch Type Snap Latch
Mount Type Wall Mount
Mounting Plate Included No
Racks Rack Units 4U
Racks Paint Color RAL 9005 black

Hammond HLP Series UL2416 Low-Profile Wall-Mount Rack Cabinet (4U, 6U & 8U)

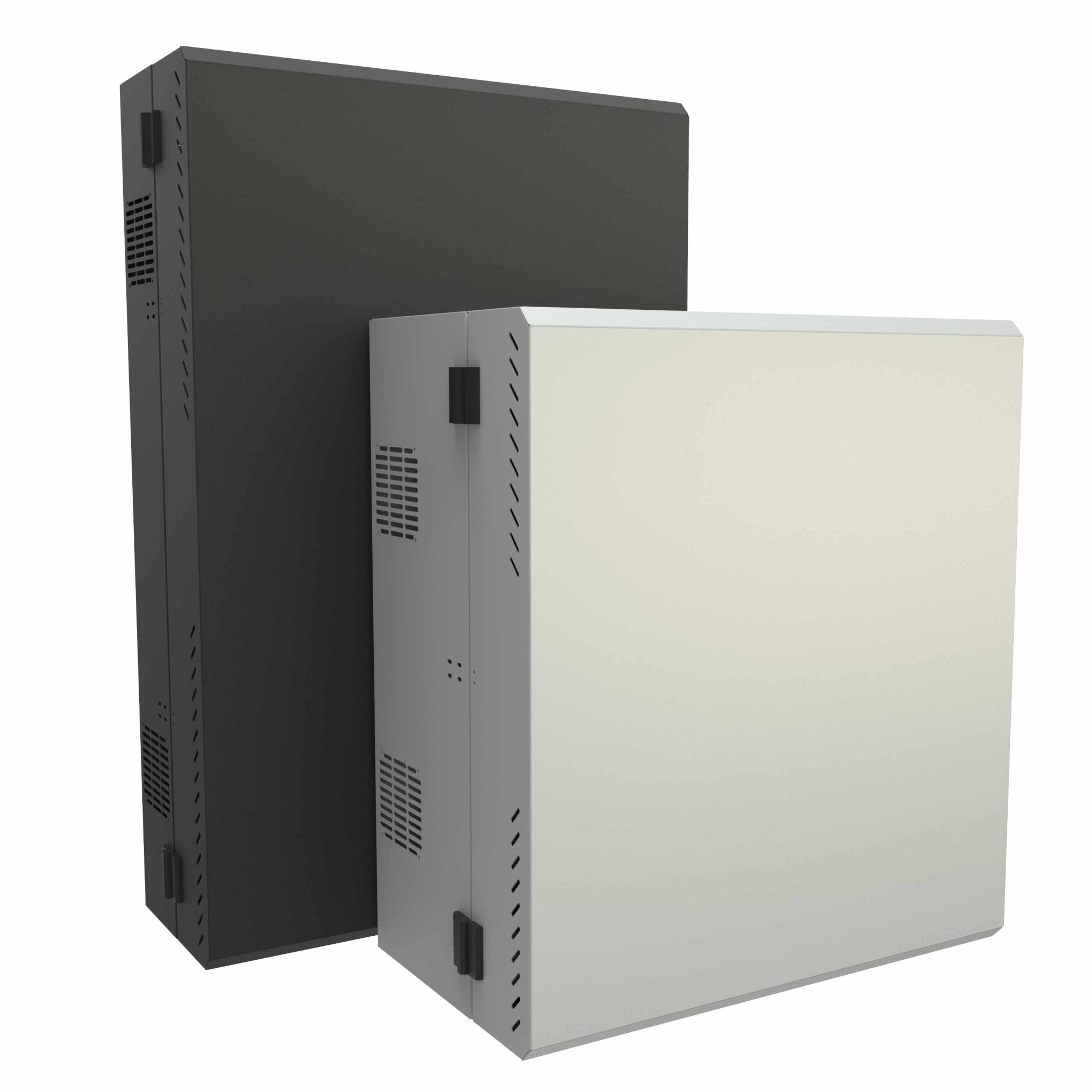

Optimize your wall space with the Hammond HLP Series UL2416 Low-Profile Rack Cabinet. Constructed from 16‑gauge steel and finished in durable powder coat (Black RAL 9005 or Light Gray RAL 7035), each cabinet is UL2416-rated to support up to 200 lbs (90 kg). Designed for quick installation and reliable protection, the HLP Series keeps your networking, AV, and control equipment safe from dust, moisture, and impact.

What’s Included

  • Pair of 2U 180° rotating EIA-compliant rack rails (14‑gauge steel)
  • Pair of adjustable fixed rack rails (14‑gauge steel) in selected U size (4, 6, or 8)
  • Starter pack of SCREW1032-25 mounting screws

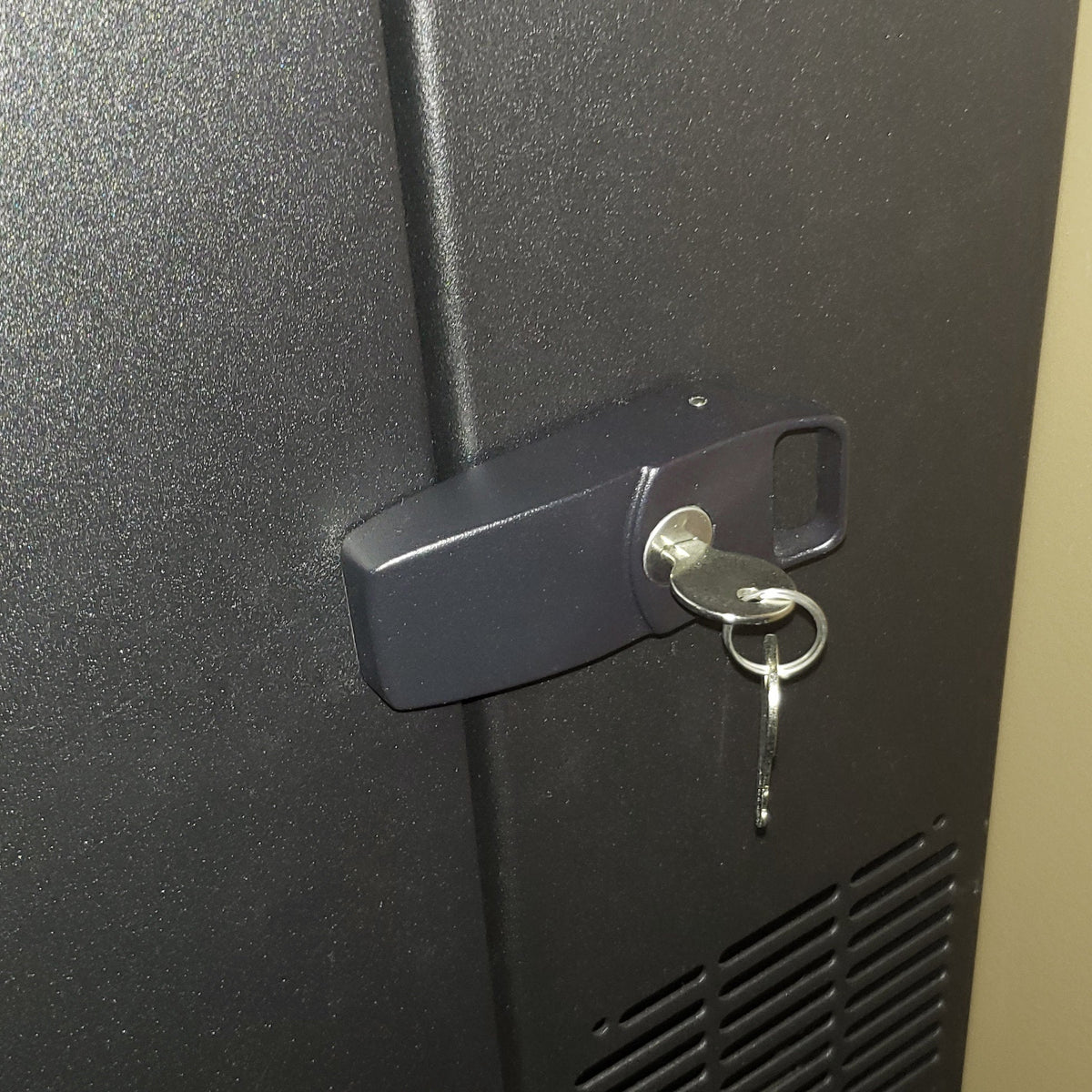

  • Locking hinged front door with reversible latch
  • Pre-punched conduit knockouts (3.00", 2.00", 1.38", 1.12") top & bottom
  • Cable management lances on rear section

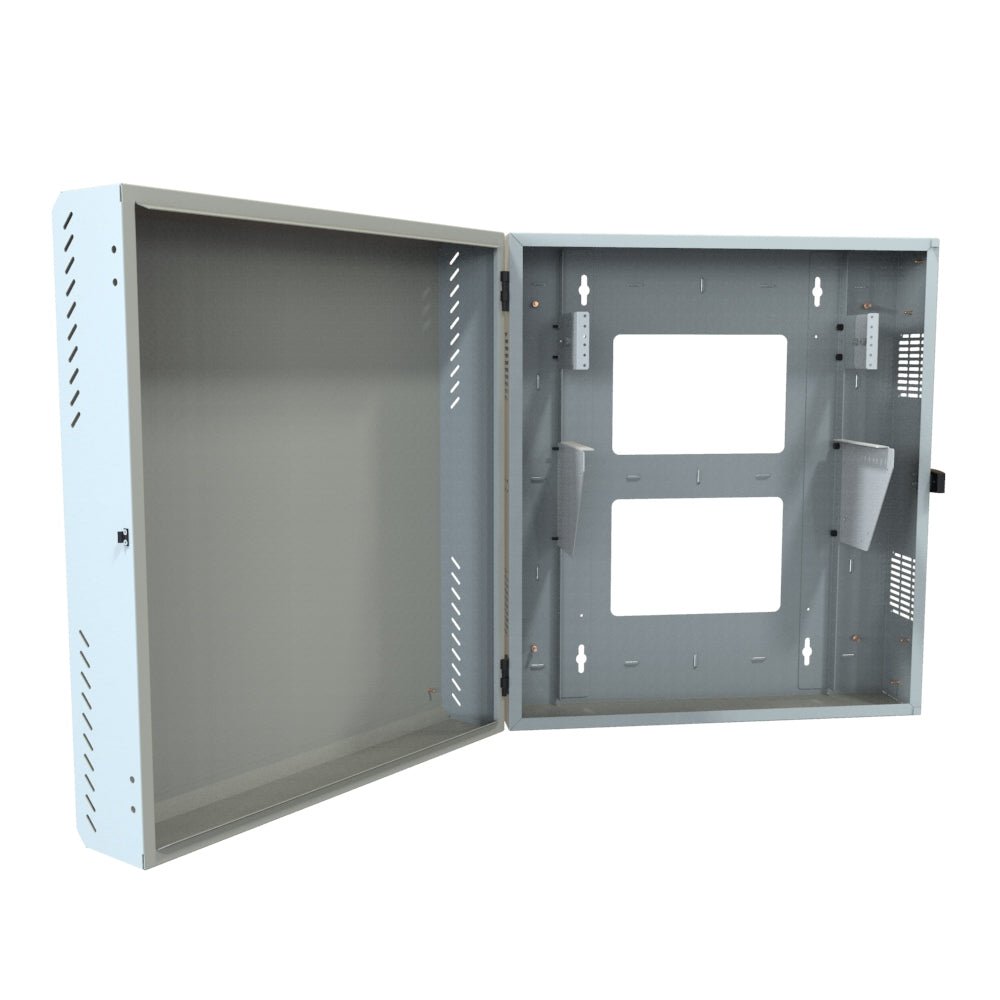

  • Keyhole mounting points for quick wall attachment
  • Passive side vents (optional fan kits available)
  • Bonding points for 4×2 utility box mounting

Key Features

  • 16‑gauge steel body & rear section
  • UL2416 load rating: up to 200 lbs (90 kg)
  • 14‑gauge steel rotating & fixed rails
  • Corrosion-resistant powder coat finish
  • UL Listed, CSA certified, RoHS & TAA compliant
  • ISO 9001:2015 North American manufacturing

Ideal For

  • Server & network equipment
  • Security & surveillance systems
  • Audio/visual installations
  • Telemetry & control panels
  • Industrial automation racks

No downloads available for this variant.
