5-Conductor DIN Rail Mount Quick Splicing ConnectorAltelix

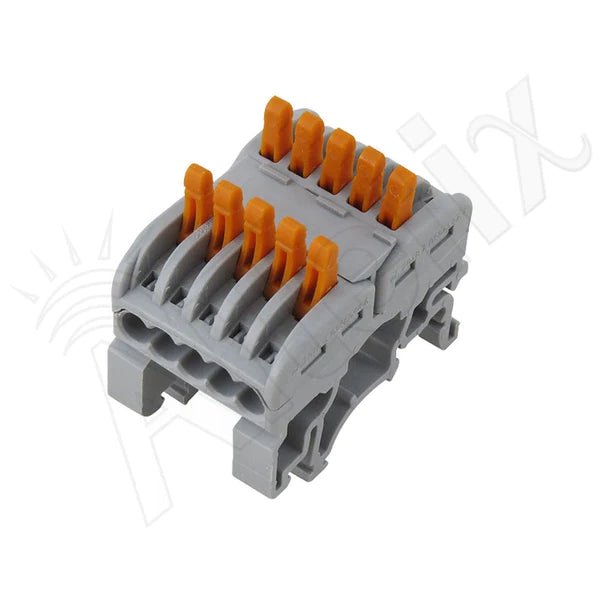

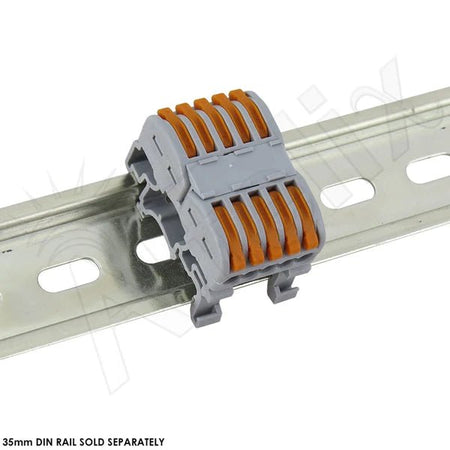

The Altelix TL2X5-DIN is a 5-Conductor DIN Rail Mountable Splicing connector. It features two independent wiring blocks that can each splice up to 5 wiring together. It is designed to be attached to standard 35mm Top Hat DIN Rails.
Rated Voltage 250V - 600V Rated Current 20A Solid Wire Size 28 - 14 AWG (0.08 - 2.50 mm) Stranded Wire Size 28 - 12 AWG (0.08 - 4.00 mm) Strip Length 0.35 - 0.39 Inch (9 - 10 mm) Size (LxWxH) 1.0 x 1.7 x 1.2 Inch (27.2 x 42.8 x 31 mm) Ambient Temperature -40°C to +105°C (-40°F to +221°F) Mounting 35mm DIN Rail
