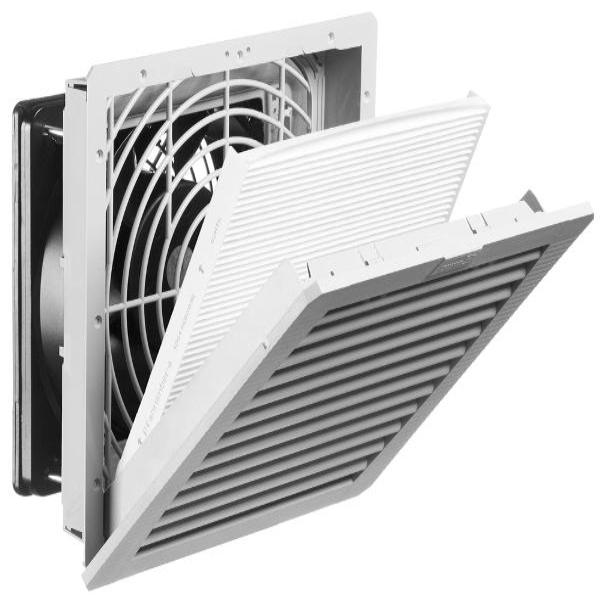

65 CFM Filterfans PF GEN4 Series
$192.67 $243.61
Product Information
Part Number: PF32000T12BK
  • Specifications
  • Drawings
  • Product Data
    • Maintains a UL Tested NEMA Type 12 seal against enclosure
    • UL Recognized to UL 508A, category NITW2/8, UL File #E175229
    • Patented “Click & Fit” design provides a hardware free installation!
    • Plastic made from strong, heat resistant (ABS-FR), UL 94 VO fire approved material
    • Fan Motor is CSA Approved

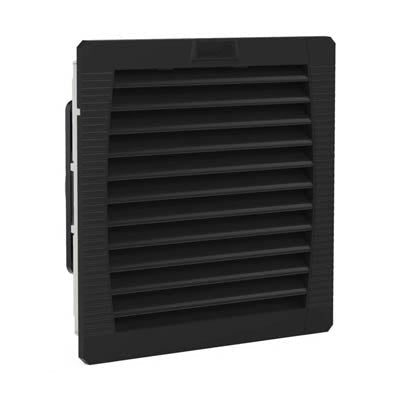

    • Options: Black Grills

    • Drawings

      Please click a part number below to view the product specifications.

      Part Number Black RAL9011 Voltage Power Exhaust Filter Black RAL9011
      PF32000T12BK 115V 20W PFA30000BK
      PF32000T12BK230 230V 18W PFA30000BK
      PF32000T12BK24 24V 5W PFA30000BK

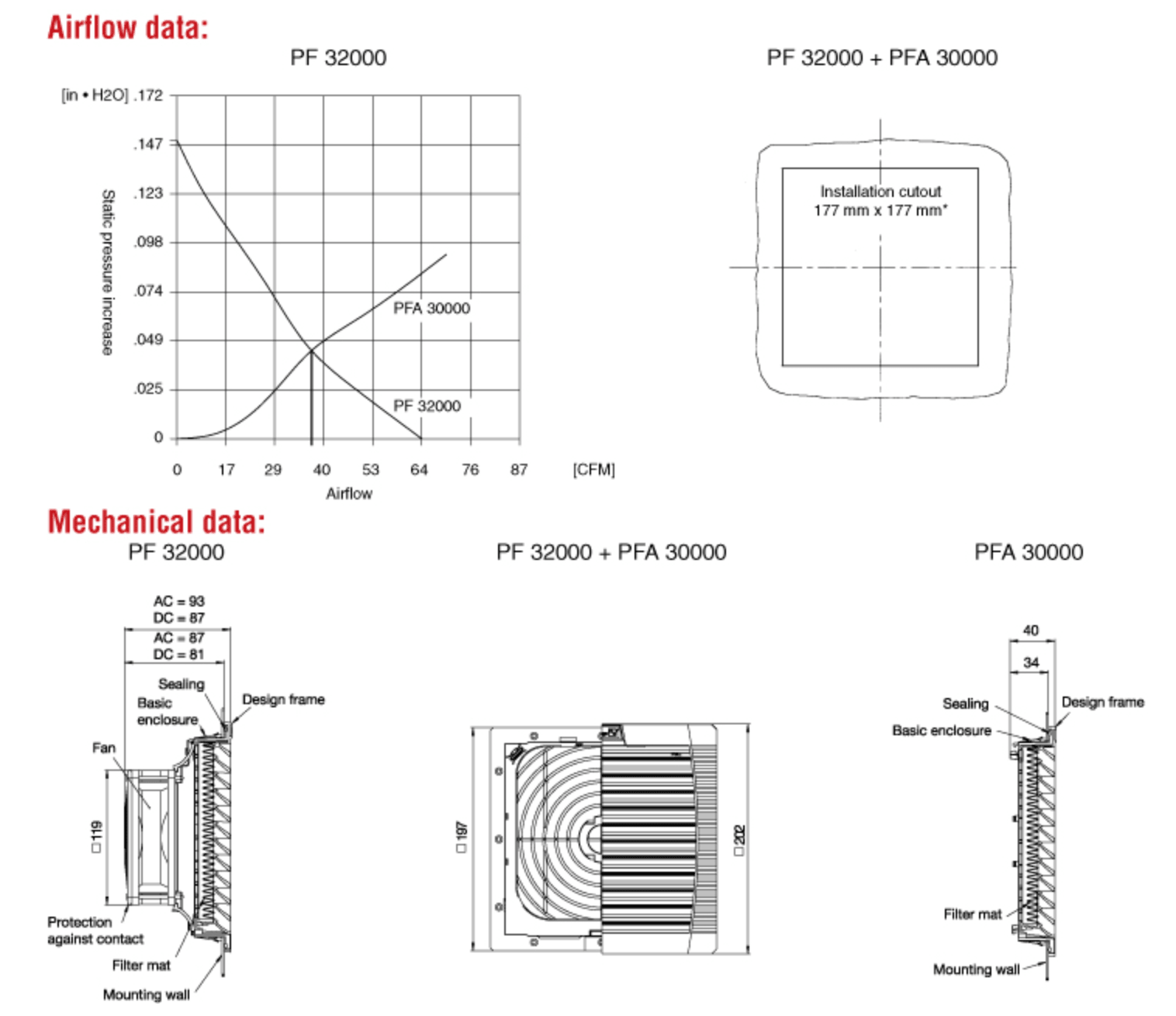

    • Airflow data PF 32000 PFA 30000
      Filter material Type 12 filter mat Type 12 filter mat
      Unimpeded airflow 65 CFM -
      Capacity free-flow 37 W/K -
      Airflow in combination 38 CFM -
      (Filterfan + Exhaust Filter) (PF 32000 + PFA 30000) -
      Capacity in combination 21 W/K -
      (Filterfan + Exhaust Filter) (PF 32000 + PFA 30000) -
      Max. static pressure (Airflow = 0 m3/h) 61 Pa -
      Filtration efficiency 0.91 -
      Filter material grade G 4 (DIN EN 779) G 4 (DIN EN 779)
      Duty cycle 1 -

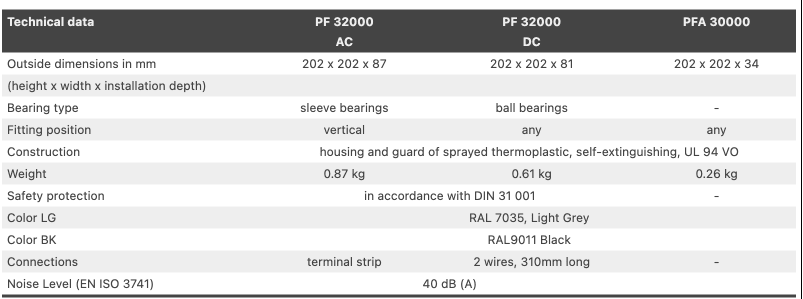

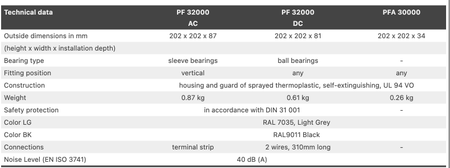

      Technical data PF 32000 PF 32000 PFA 30000
      AC DC
      Outside dimensions in mm 202 x 202 x 87 202 x 202 x 81 202 x 202 x 34
      (height x width x installation depth)
      Bearing type sleeve bearings ball bearings -
      Fitting position vertical any any
      Construction housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO
      Weight 0.87 kg 0.61 kg 0.26 kg
      Safety protection in accordance with DIN 31 001 -
      Color LG RAL 7035, Light Grey
      Color BK RAL9011 Black
      Connections terminal strip 2 wires, 310mm long -
      Supplementary data PF 32000 AC PF 32000 DC PFA 30000
      Operating temperature – 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)
      Storage temperature – 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)
      Max. relative humidity 0.9
      System of protection NEMA Type 12, IP 55 (EN 60 529), when installed as specified
      Basic Accessories parts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostat
      Approvals UL Recognized
      * Tolerance installation cutout 177 + 1/-0 thickness of material to 2 mm
