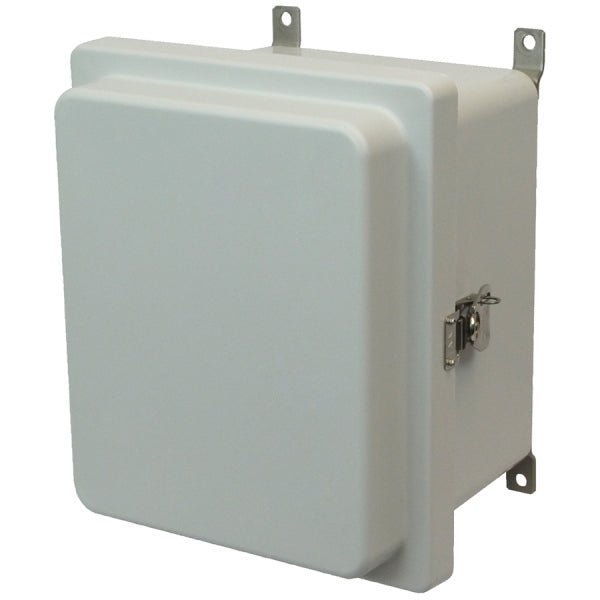

Control Series Fiberglass Enclosure Hinged Twist Latch Opaque Cover
$71.16 $88.47
Product Information
Part Number: AM664RT
  • Description
  • Specifications
  • NEMA Ratings
  • Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.

    Standards

    • UL 508A Type 3R, 4, 4X, 12 and 13
    • CSA Type 3R, 4, 4X, 12 and 13
    • NEMA Type 3R, 4X, 4, 12 and 13
    • IEC 60529, IP66
    • Specifications

      Please click a part number below to view the product specifications.


      Part Number  Drawing
      AM664RT PDF File
      AM864RT PDF File
      AM1084RT PDF File
      AM1086RT PDF File
      AM1206RT PDF File
      AM1224RT PDF File
      AM1226RT PDF File
      AM1426RT PDF File
      AM1648RT PDF File
      AM1868RT PDF File
      AM2068RT PDF File
      AM24208RT PDF File
      AM24248RT PDF File
      AM30248RT PDF File
      AM24200RT PDF File
      AM24240RT PDF File
      AM30240RT PDF File
    • Type 3R

      Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.

      Type 4

      Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.

      Type 12

      Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

      Type 13

      Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
