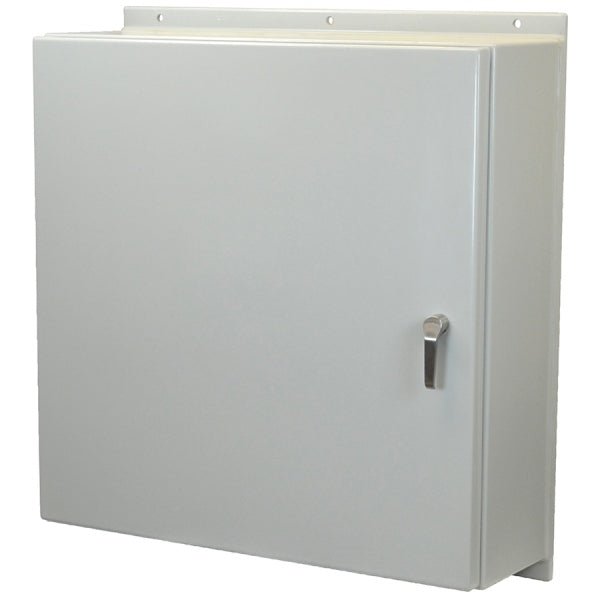

Fiberglass Enclosure 3-Point Lockable Latching Handle Hinged Cover
$1,584.24 $1,922.81
Product Information
Part Number: AM363016L3PT
  • Description
  • Specifications
  • NEMA Ratings
  • The Empire AMEC Series offers standard features as well as full-panel access and all usable panel space. In addition, the standard gray cover is available with optional custom modifications and accessories. These options include back panels, vent kits, print pockets and ULTRAPLUG® hole plugs. AMEC enclosures insulate and protect controls and components against the toughest elements in the harshest environments. It is available in the popular 36” x 30” size (with 12” depth) with 316 stainless steel hinges and latching hardware. Enclosure configurations include twist latches, 3-point latching handle, opaque cover and cover with polycarbonate viewing window.

    Standards

    • UL 508A Type 3R, 4, 4X, 12 and 13
    • CSA Type 3R, 4, 4X, 12 and 13
    • NEMA Type 3R, 4X, 4, 12 and 13
    • IEC 60529, IP66
    • Specifications

      Please click a part number below to view the product specifications.


      Part Number  Drawing
      AM363016L3PT PDF File
      AM363612L3PT PDF File
      AM363616L3PT PDF File
      AM483612L3PT PDF File
      AM483616L3PT PDF File
      AM603612L3PT PDF File
      AM603616L3PT PDF File
    • Type 3R

      Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.

      Type 4

      Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.

      Type 12

      Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

      Type 13

      Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
