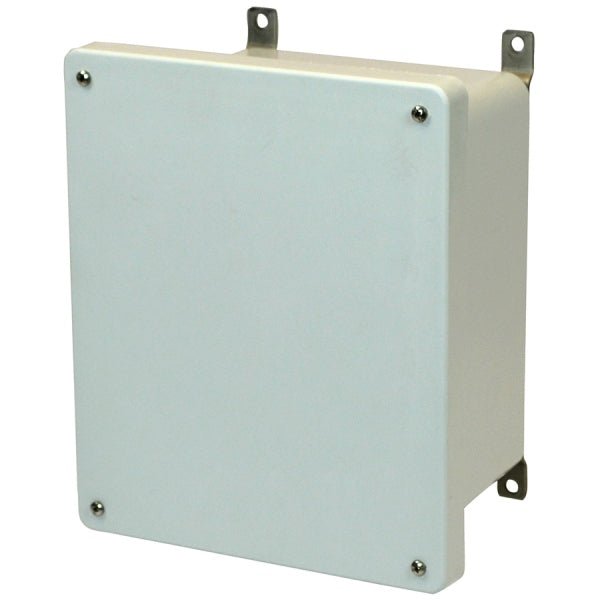

Allied Moulded Empire Series Fiberglass Enclosure-Lift Off Screw Opaque Cover
Allied Moulded- Description
- Specifications
- NEMA Ratings
-
The Empire AMEC Series offers standard features as well as full-panel access and all usable panel space. In addition, the standard gray cover is available with optional custom modifications and accessories. These options include back panels, vent kits, print pockets and ULTRAPLUG® hole plugs. AMEC enclosures insulate and protect controls and components against the toughest elements in the harshest environments. It is available in the popular 36” x 30” size (with 12” depth) with 316 stainless steel hinges and latching hardware. Enclosure configurations include twist latches, 3-point latching handle, opaque cover and cover with polycarbonate viewing window.
Standards
- UL 508A Type 3R, 4, 4X, 12 and 13
- CSA Type 3R, 4, 4X, 12 and 13
- NEMA Type 3R, 4X, 4, 12 and 13
- IEC 60529, IP66
-
Specifications
Please click a part number below to view the product specifications.
Part Number Drawing AM664 PDF File AM864 PDF File AM1084 PDF File AM1086 PDF File AM1206 PDF File AM1224 PDF File AM1226 PDF File AM1426 PDF File AM1648 PDF File AM1868 PDF File AM2068 PDF File -
Type 3R
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.
Type 4
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.Type 12
Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).
Type 13
Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
