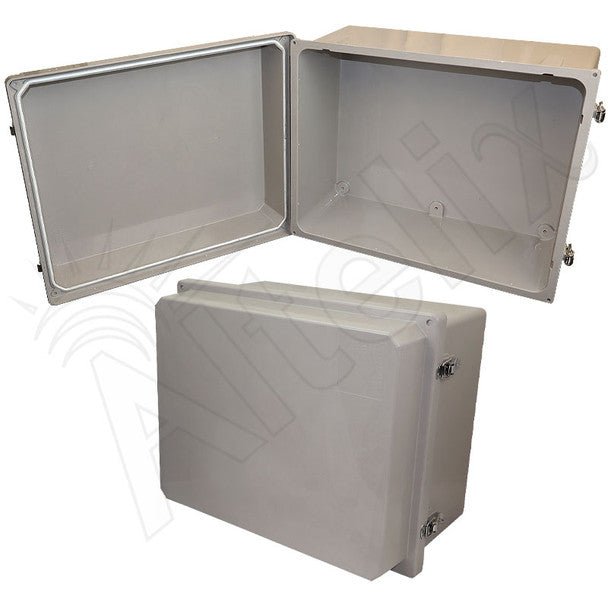

Altelix 16x20x12 Fiberglass Weatherproof NEMA 4X Enclosure

• Features Water Resistant JIC Enclosure Design with Gasketed Lid Extra Deep Extended Lid for Increased Equipment Clearance Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66 Stainless Steel Hinges with High Quality 316 Steel Hinge Pins Stainless Steel Quick Release Latches with Padlock Hasps Fiberglass Reinforced Polyester, FRP Raised Bosses and Threaded Brass Inserts for Plate Mounting Weatherproof, UV Stable and Highly Corrosion Resistant Includes Stainless Steel Mounting Feet RF Transparent Enclosure Pole Mounting Kit Available

  Applications Rapid Deployment Systems Harsh Environments WiFi Enclosure RFID Reader Enclosure IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Solar Equipment Enclosure Outdoor use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment Building Automation Controls Industrial Controls Enclosure Telephone Equipment Enclosure



  Extreme Protection Built to Last

  The Altelix NF162012 Series Enclosures are designed with all the same rugged components as the NF201612 Series enclosures but feature a sideways opening door. This makes these enclosures ideal for locations not suitable for taller enclosures. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

  This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

  Increased Interior Space

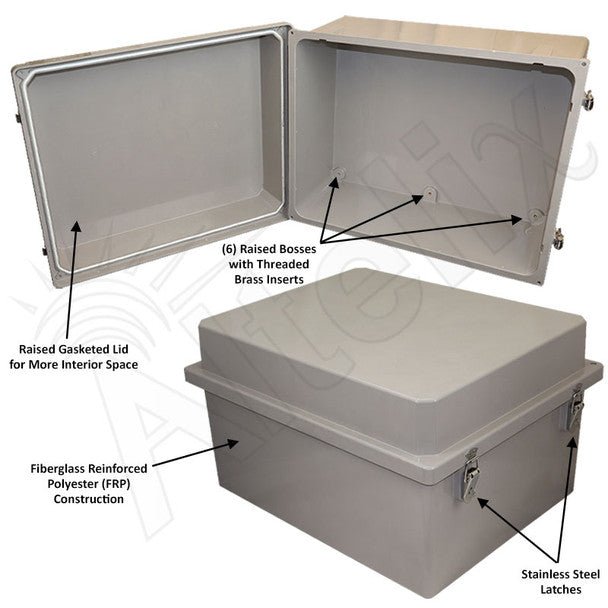

  The NF162012 series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF162012 can accommodate a wide range of equipment as well as 19" wide equipment racks. Six raised bosses with threaded brass inserts are provided inside the enclosure for mounting equipment plates and equipment brackets.

  Mounting

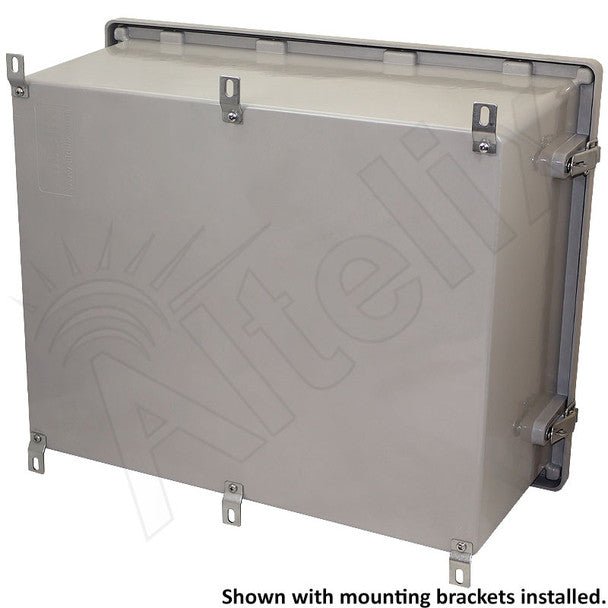

  Stainless steel brackets are included for secure wall mounting.




• 1
• 2
• 4
• 4X
• 12
• 13
