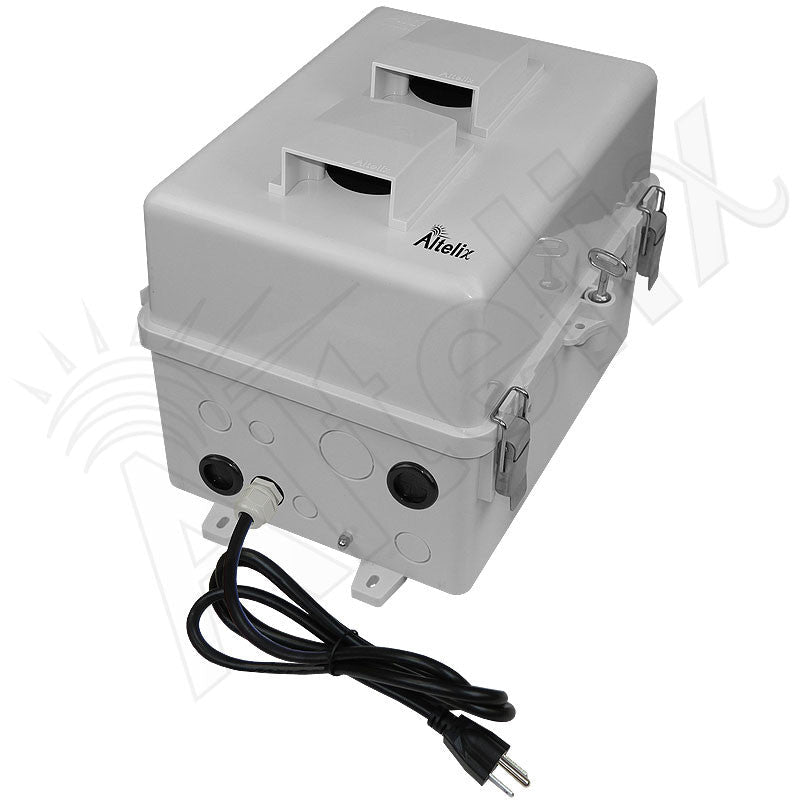

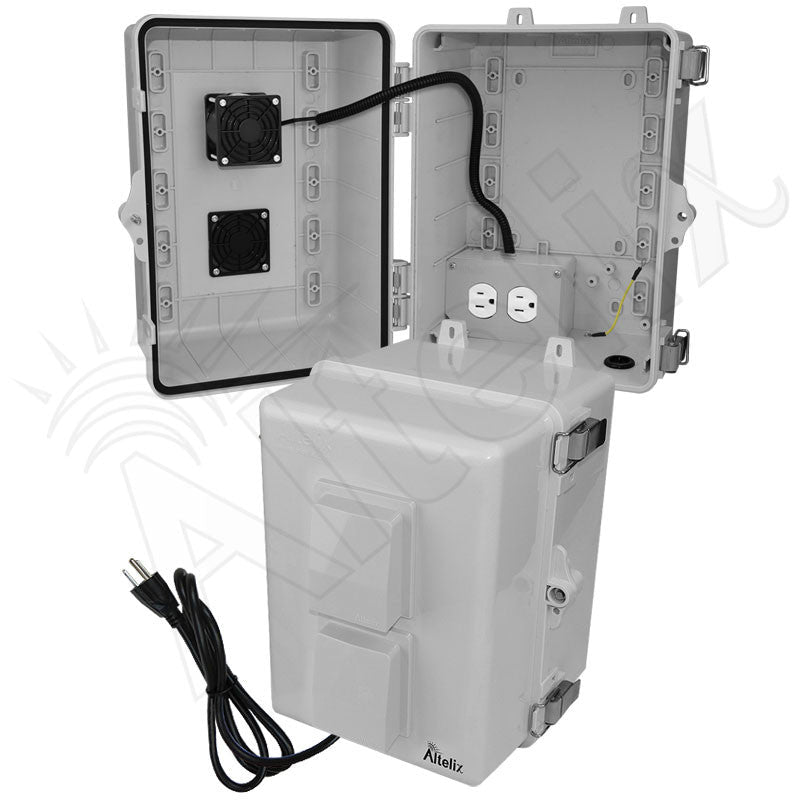

Altelix 12x9x9 Polycarbonate + ABS Vented RF Transparent Outdoor WiFi Enclosure with Cooling Fan, 120 VAC Outlets & Power Cord
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Application | Indoor, Outdoor |
| IP Equivalent | IP24 |
| Height | 12 |
| Width | 9 |
| Depth | 9 |
| Inner Dimensions | 7.8 x 7.1 x 6.5 inches |
| Cover Type | Hinged Cover, Gasketed Cover, Opaque |
| Latch Type | Tamper proof locking screw |
| Mount Type | Wall Mount |
| Specialty Enclosure | RF Transparent WiFi Enclosure |
| Mounting Plate Included | No |
| Power Options | Power Cord Included, 120VAC |
| Power Cord Length | 5 Foot 3-Prong Power Cord |
| Cooling & Heating | Vents with Cooling Fan |
Features
|
Applications
|

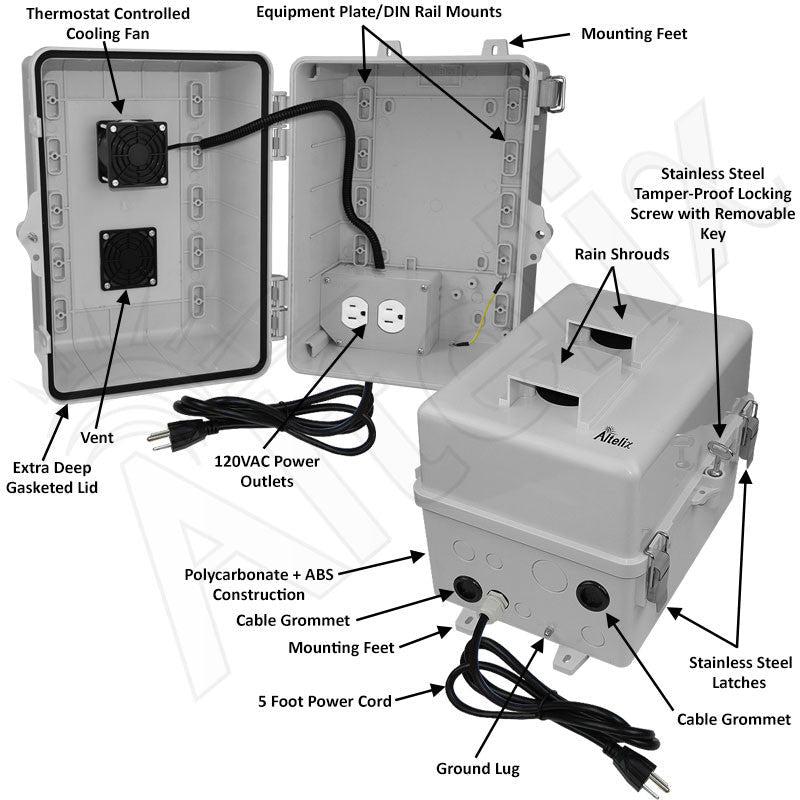

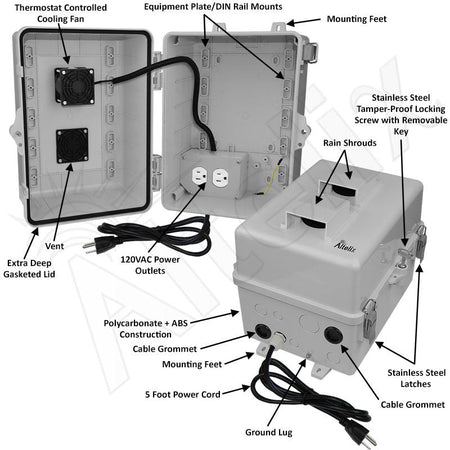

The Altelix NP120909VFA1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.
Increased Interior Space
This enclosure features an extra deep gasketed lid, over 4 inches deep. With the generous size of this enclosure and extended lid the NP120909VFA1C can accommodate a wide range of equipment.
Cooling Fan Ventilation
The NP120909VFA1C features dual vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.
Equipment Mounting Options
This enclosure provides multiple ways to install equipment. Raised bosses located in the base of this enclosure can be used to mount an equipment plate. These same bosses can also be used to install up to four 35mm Top Hat DIN Rail kits available from Altelix. A large flat section is also provided in the base for use with the hook-n-loop tape included in the accessory kit.
RF Transparent Design
The NP120909VFA1C is ideal for WiFi applications. The non-metallic design of the enclosure will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless access points on the market.
Secure Your Equipment
These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.
Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.
Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit.
