Altelix 14x12x6 Fiberglass Weatherproof Heated NEMA Enclosure with 200W Heater, 120 VAC Outlets & Power CordAltelix
Heated NEMA 4X Enclosure with Plug and Play Power for Rapid Deployment

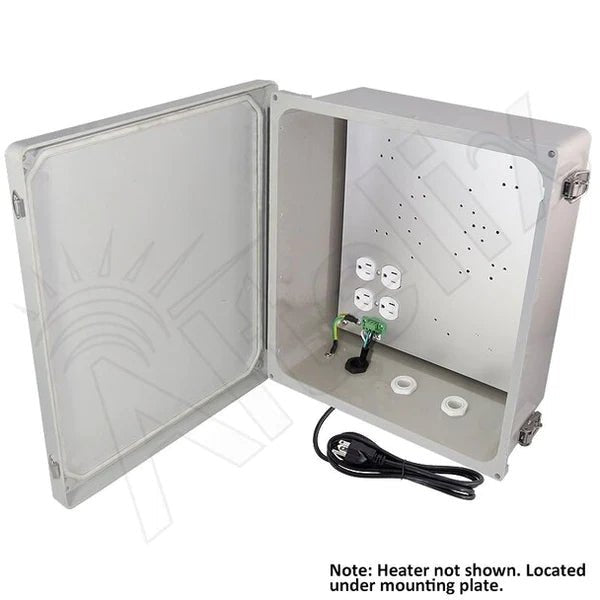

The Altelix NF141206HA1C is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features four pre-wired 120VAC power outlets for your equipment.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.
200W Thermostat Controlled Heater
This enclosure is equipped for harsh weather and cold environments. It features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is mounted below the equipment plate and wired internally so leaves the interior space and power outlets available for your equipment. An insulated extreme cold weather model is also available with a 400W heating system.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel ( NMKS-300-08) and stainless steel (NMKX-300-08).
Material Fiberglass Reinforced Polyester Color Gray Voltage 120VAC Max Load 10A @ 120VAC Terminal Block Wire Range 12-18 AWG Terminal Block Wire Strip Length 6-7mm Heater Turn-On Temperature 43°F (6°C) Heater Turn-Off Temperature 59°F (15°C) Heater Power 200 Watts Outer Dimensions 15.75 x 13.83 x 6.54 Inches
(401 x 352 x 164 mm)
Inner Dimensions 13.87 x 11.97 x 6.2 Inches
(352 x 304 x 157 mm)
Mounting Plate Material 0.10 in (2.5 mm) Aluminum Mounting Plate Dimensions 10.9 x 12.8 in. (276 x 324 mm) Weight 11.4 lbs. (5.2 kg) Power Cord Length 5 Feet (1.5m) Ratings* NEMA Type 4, 4X / IP66 Flame Rating UL94-5V
