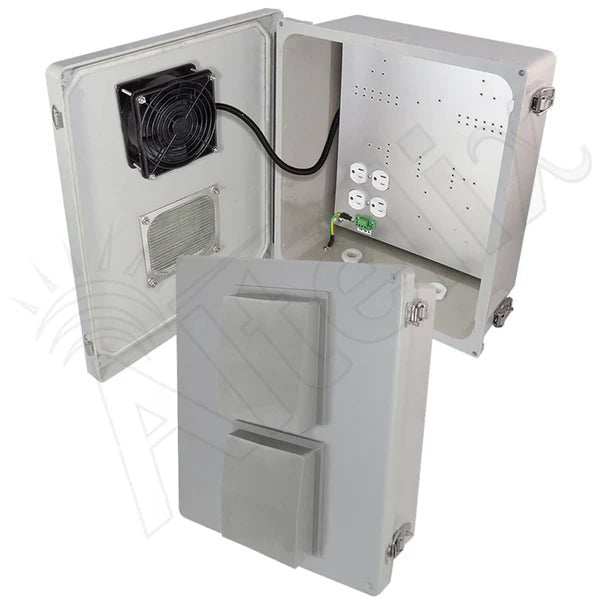

Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with 120 VAC Outlets & 85°F Turn-On Cooling Fan

Fan Cooled 85°F (30°C) NEMA Enclosure with 120VAC Power Outlets

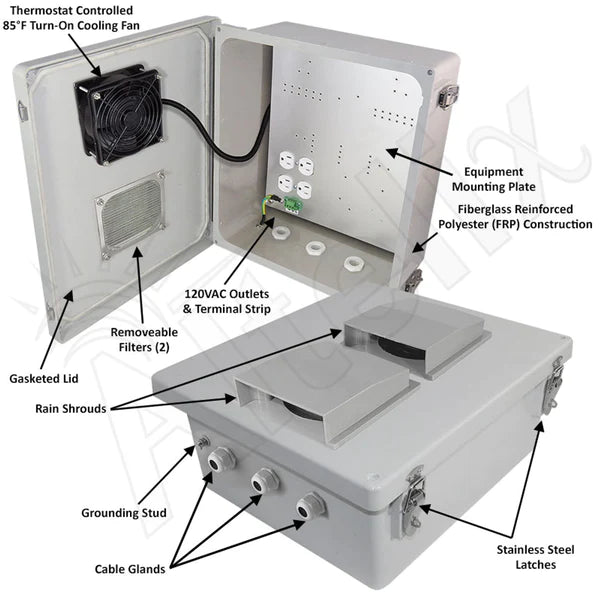

The Altelix NF141208VFA1-85 features two 4" vents and a thermostat controlled cooling fan which is set to 85°F (30°C) for additional cooling. The fan turns on when the internal temperature reaches 85°F (30°C) and turns off when it drops to 59°F (15°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment.

This enclosure provides four pre-wired 120VAC power outlets and a terminal strip for easy wiring by a qualified installer. The fan is wired internally, leaving all 4 power outlets available for your equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.
