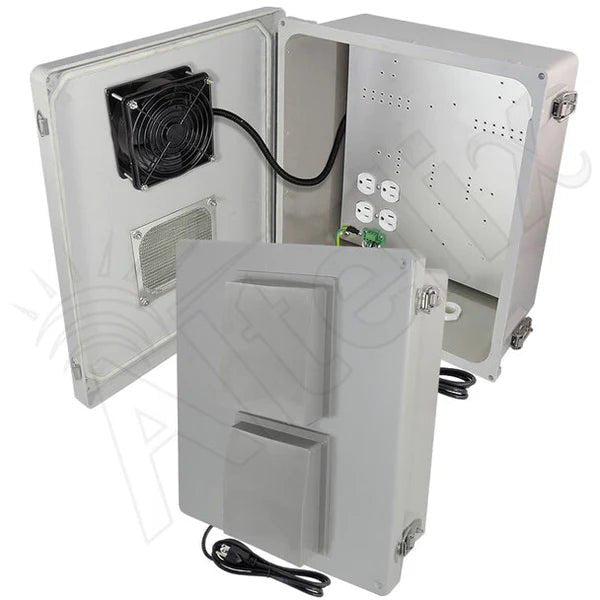

Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with 120 VAC Outlets, Power Cord & 85°F Turn-On Cooling Fan
Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with 120 VAC Outlets, Power Cord & 85°F Turn-On Cooling Fan Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with 120 VAC Outlets, Power Cord & 85°F Turn-On Cooling Fan
$319.99
Product Information
Part Number: NF141206VFA1C-85
Inventory: Typically Ships 2-4 Business Days
  • Description
  • 85°F Fan Cooled Vented Enclosure with Plug & Play Power for Rapid Deployment

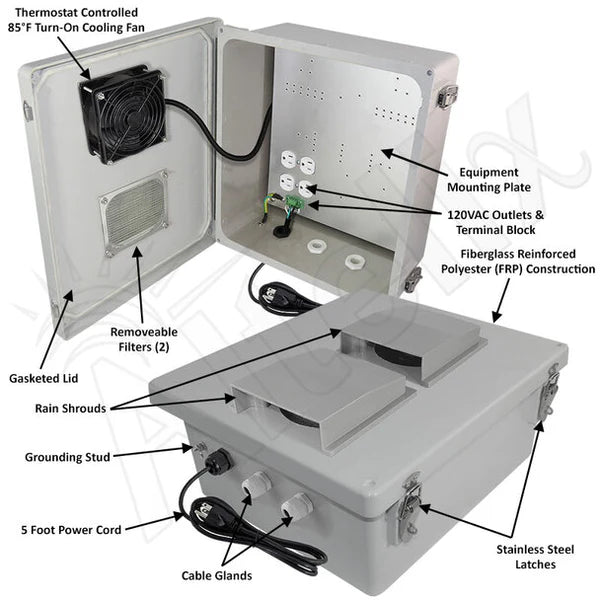

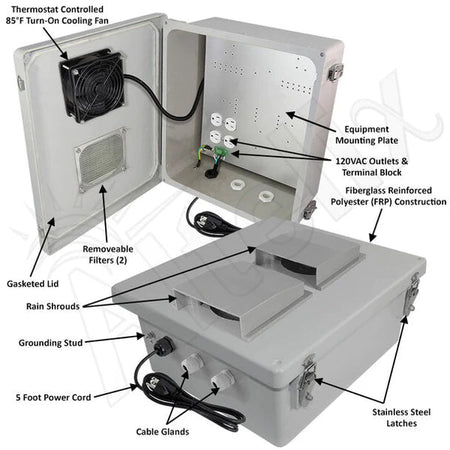

    The Altelix NF141206VFA1C-85 Fan Cooled Vented NEMA Enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features four pre-wired 120VAC power outlets for your equipment.

    Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

    85°F (30°C) Fan Cooling with Thermostat Control
    This enclosure features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 85°F (30°C) and turns off when it drops to 59°F (15°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment. The fan is wired internally, leaving all 4 power outlets available for installed equipment.

    Extreme Protection Built to Last
    This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

    Cable Glands
    The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

    Mounting
    Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel ( NMKS-300-08) and stainless steel (NMKX-300-08).

    Customization
    We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
