Altelix 14x12x8 Fiberglass Weatherproof Heated NEMA Enclosure with 200W Heater & 120 VAC Outlets
$324.99
Product Information
Part Number: NF141208HA1
Inventory: Typically Ships 2-4 Business Days
  • Description
  • Heated NEMA 4X Protection with Power Outlets

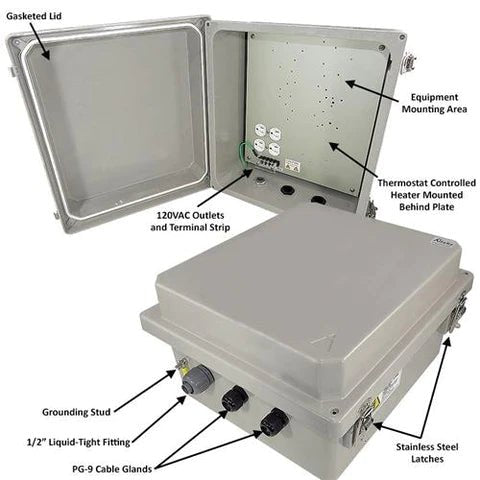

    The Altelix NF141208HA1 Heated NEMA Enclosure is deal for cold environments. It features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is mounted below the equipment plate and wired internally so leaves the interior space and power outlets available for your equipment. An insulated extreme cold weather model is also available with a 400W heating system.

    120VAC Power Outlets
    This enclosure features four pre-wired 120VAC power outlets. A terminal strip provides easy wiring by a qualified installer.

    Extreme Protection Built to Last
    This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.

    Cable Glands
    The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

    Removable Terminal Block
    This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

    Mounting
    Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel ( NMKS-300-08) and stainless steel (NMKX-300-08).



    Material Fiberglass Reinforced Polyester
    Color Gray
    Voltage 120VAC
    Max Load 15A @ 120VAC
    Terminal Block Wire Range 12-18 AWG
    Terminal Block Wire Strip Length 6-7mm
    Heater Turn-On Temperature 43°F (6°C)
    Heater Turn-Off Temperature 59°F (15°C)
    Heater Power 200 Watts
    Outer Dimensions 15.75 x 13.83 x 8.73 Inches
    (401 x 352 x 222 mm)
    Inner Dimensions 13.87 x 11.97 x 8.4 Inches
    (352 x 304 x 213 mm)
    Mounting Plate Material 0.10 in (2.5 mm) Aluminum
    Mounting Plate Dimensions 10.9 x 12.8 in. (276 x 324 mm)
    Weight 11.7 lbs. (5.3 kg)
    Ratings NEMA Type 4, 4X / IP66
    Flame Rating UL94-5V
