Altelix 16x16x8 Insulated NEMA 4X Fiberglass Heated Weatherproof Enclosure with Equipment Mounting Plate & 120 VAC Outlets
Altelix 16x16x8 Insulated NEMA 4X Fiberglass Heated Weatherproof Enclosure with Equipment Mounting Plate & 120 VAC Outlets Altelix 16x16x8 Insulated NEMA 4X Fiberglass Heated Weatherproof Enclosure with Equipment Mounting Plate & 120 VAC Outlets
$639.99
Product Information
Part Number: NFC161608HA1-Z
Inventory: Typically Ships 2-4 Business Days
  • Description
  • Note: THIS IS A SPECIAL ORDER ITEM.

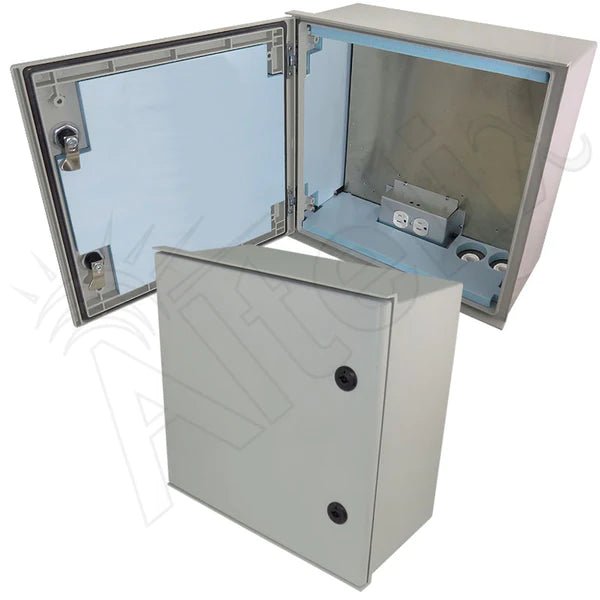

    The Altelix NFC161608HA1-Z NEMA 4X Insulated Heated Weatherproof Enclosure with 120VAC Power and Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

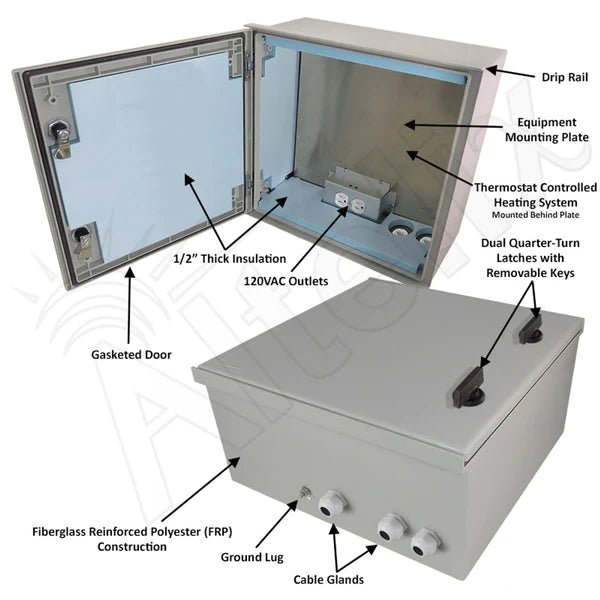

    Construction and Features
    This rugged IP66 rated enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

    Bonus Aluminum Bottle Opener Key
    This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

    Power
    This configuration consists of the fiberglass NEMA enclosure with hinged lid and a equipment mounting plate with two pre-wired 120VAC power outlets. The outlet box is easily removable to facilitate wiring to an external power source.

    Heater
    Ideal for cold environments, this model also features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is situated below the mounting plate and wired internally so it does not interfere with user installed equipment or require the use of the AC outlets.

    Insulated Enclosure
    Designed for extreme cold and hot environments, the NFC161608HA1-Z features 0.500 inch (12.7mm) thick insulation bonded to all interior sides of the enclosure.

    Equipment Mounting Plate
    The equipment mounting plate is provided for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

    Cable Glands
    The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

    Mounting
    Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-400-08) and stainless steel (model NMKX-400-08).

    Optional Lockable Latches
    For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
