Altelix 16x20x12 Industrial DIN Rail Enclosure Fiberglass NEMA 4X IP66

• Features Steel Din Rail Mounting Brackets with 12 Rail Mounting Positions Includes (2) Steel 35mm Top Hat DIN Rails and Screws Water Resistant JIC Enclosure Design with Gasketed Lid Extra Deep Extended Lid for Increased Equipment Clearance Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66 Stainless Steel Hinges with High Quality 316 Steel Hinge Pins Stainless Steel Quick Release Latches with Padlock Hasps Fiberglass Reinforced Polyester, FRP Weatherproof, UV Stable and Highly Corrosion Resistant Includes Stainless Steel Mounting Feet RF Transparent Enclosure Pole Mounting Kit Available

  Applications DIN Rail Mounted Equipment Rapid Deployment Systems Harsh Environments WiFi Enclosure RFID Reader Enclosure IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Solar Equipment Enclosure Outdoor use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment Building Automation Controls Industrial Controls Enclosure



  Extreme Protection Built to Last

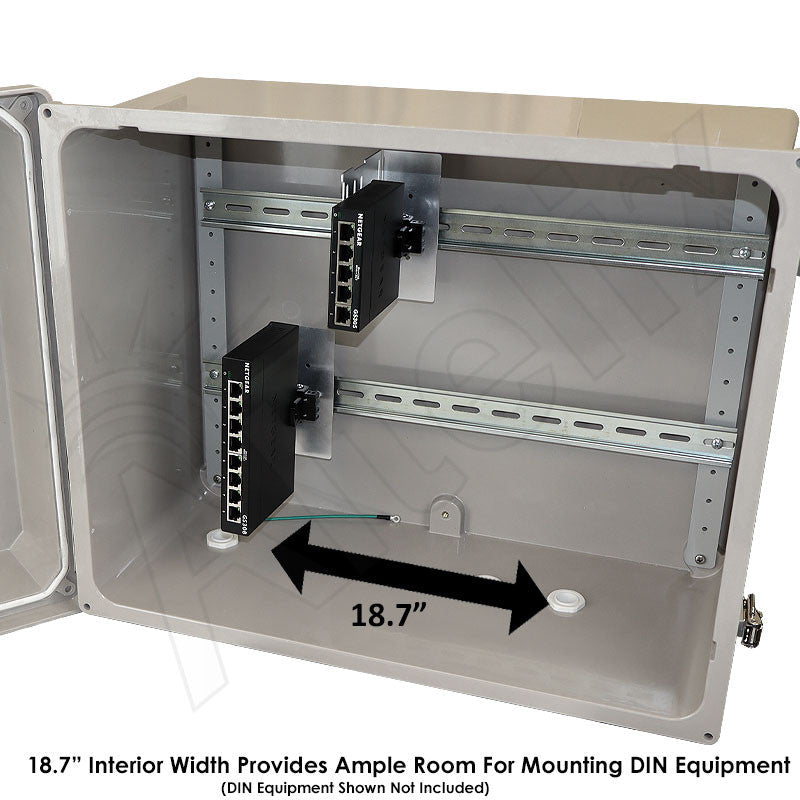

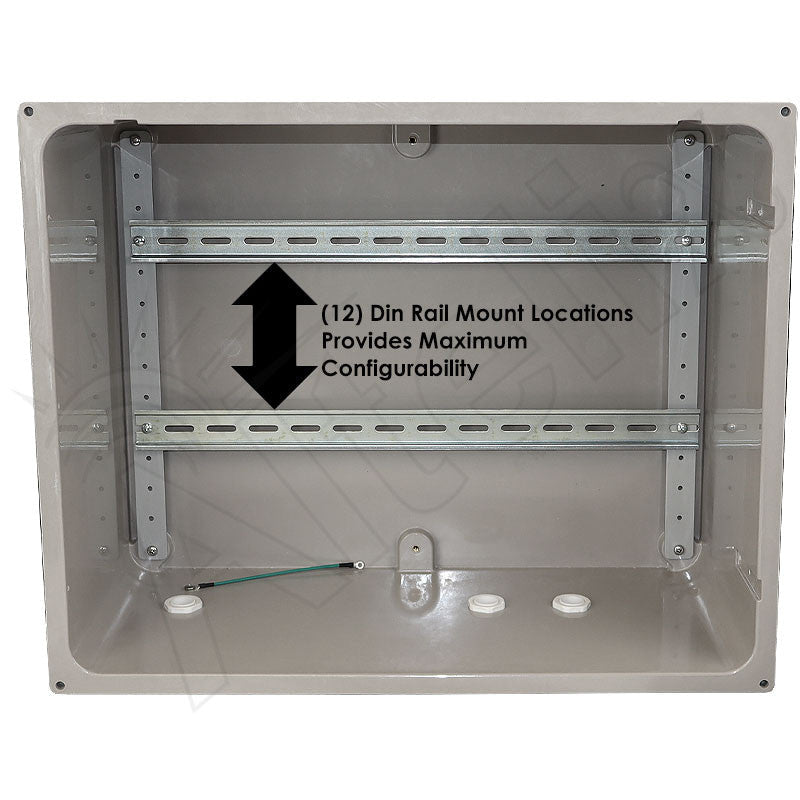

  The Altelix NF162016-DIN NEMA 4X Weatherproof DIN Rail Enclosure features two heavy duty 12 gauge steel DIN rail mounting brackets that provide 12 DIN rail mounting positions. For convenience, the enclosure also includes two pre-cut steel 35mm top-hat rails and mounting hardware.

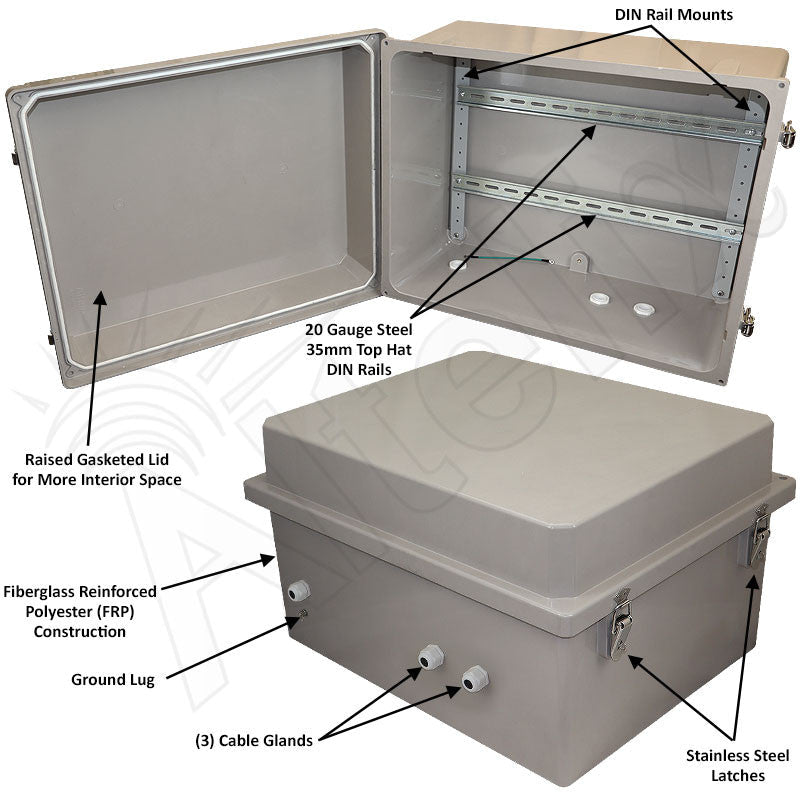

  The Altelix NF162012 Series Enclosures are designed with all the same rugged components as the NF201612 Series enclosures but feature a sideways opening door. This makes these enclosures ideal for locations not suitable for taller enclosures. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

  This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

  Increased Interior Space
  The NF162012 series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF162012 can accommodate a wide range of equipment.

  Cable Glands
  The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

  Mounting
  Stainless steel brackets are included for secure wall mounting.




• 1
• 2
• 4
• 4X
• 12
• 13
