Altelix 17x14x6 PC + ABS Weatherproof Utility Box NEMA Enclosure with Pole Mount Kit
Product Information
Part Number: NP171406-PKIT
Inventory: Typically Ships 2-4 Business Days
  • Description
  • Weatherproof Extreme Durability for Pole and Post Mounting

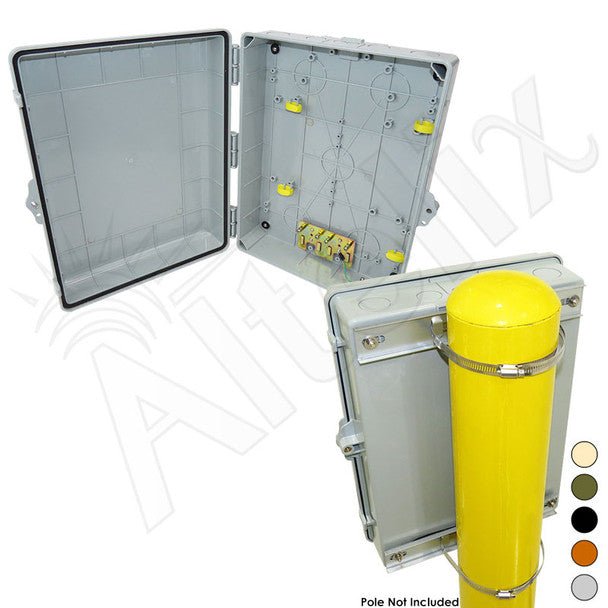

    The Altelix NP171406-PKIT is an industrial quality general purpose weatherproof utility box designed for mounting to poles and posts. It features our NP1171406 PC+ABS Plastic Utility Enclosure and our NMKG-283-08 pole mounting kit.

    Construction and Features

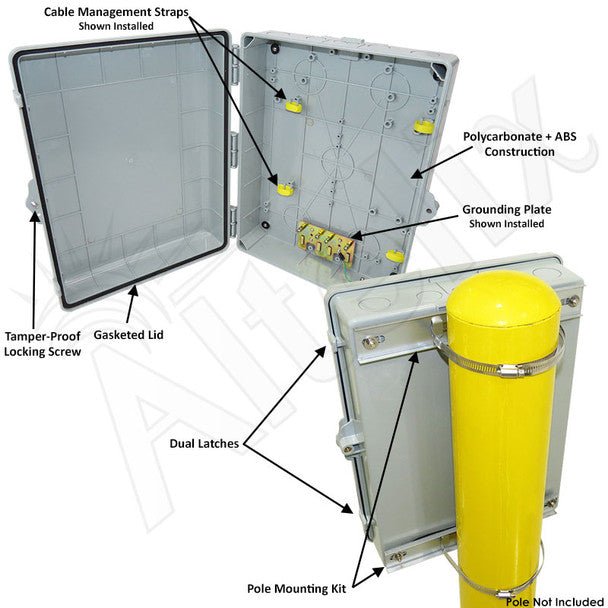

    This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. Meets or exceeds NEMA Type 3, 3X and IEC IP55.

    Pole Mounting
    The included Pole Mount Kit features (2) galvanized steel brackets and (2) stainless steel adjustable bands that accommodate poles up to 8 inches in diameter. For larger diameter poles, such as utility poles, longer bands can be used.

    Complete with Cable Glands and Wire Management Accessories
    This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are zip ties, wire management loops, grounding plate and ground wire, door locking key and more.

    Cable Glands
    The enclosure includes (2) unique cable glands with a closed inner seal. They can be installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
