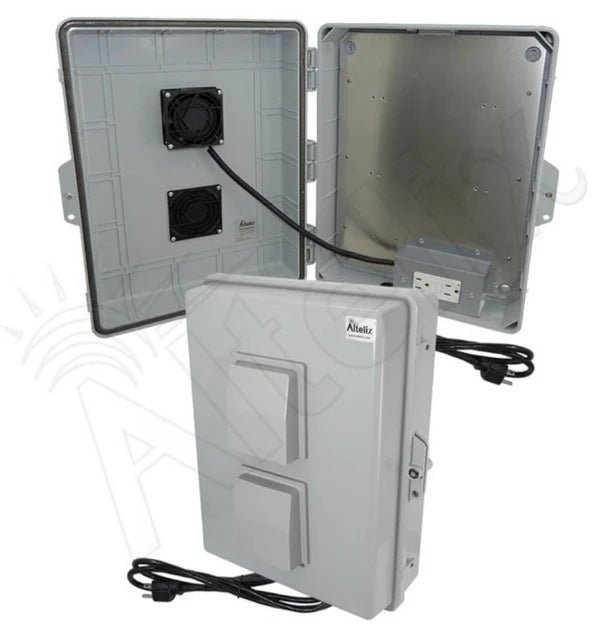

Altelix 17x14x6 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with Cooling Fan, 120 VAC Outlets, (2) USB Ports & Power Cord
Altelix 17x14x6 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with Cooling Fan, 120 VAC Outlets, (2) USB Ports & Power Cord Altelix 17x14x6 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with Cooling Fan, 120 VAC Outlets, (2) USB Ports & Power Cord Altelix 17x14x6 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with Cooling Fan, 120 VAC Outlets, (2) USB Ports & Power Cord Altelix 17x14x6 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with Cooling Fan, 120 VAC Outlets, (2) USB Ports & Power Cord Altelix 17x14x6 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with Cooling Fan, 120 VAC Outlets, (2) USB Ports & Power Cord Altelix 17x14x6 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with Cooling Fan, 120 VAC Outlets, (2) USB Ports & Power Cord
$335.99
Product Information
Part Number: NP171406VFA1C-2SA
Inventory: Typically Ships 2-4 Business Days
  • Description

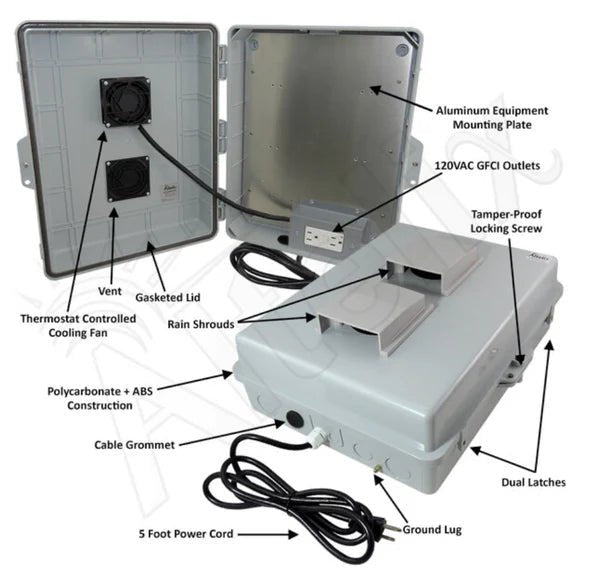

  • The Altelix NP171406VFA1C-2SA Vented Fan Cooled Polycarbonate + ABS NEMA Weatherproof Enclosure with 120VAC Power, USB Ports and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.

    PC+ABS Polycarbonate / ABS Blend for Extreme Durability
    These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

    Cooling Fan Ventilation
    The NP171406VFA1C-2SA features dual 3" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure. Dual fans are also available by request.

    Power
    This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with two 120VAC power outlets. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. The enclosure can also be hard wired by an electrician or qualified installer. An external ground lug is provided. Two cable grommets on the enclosure allows cables to be connected to internal devices. Knock-outs are provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.

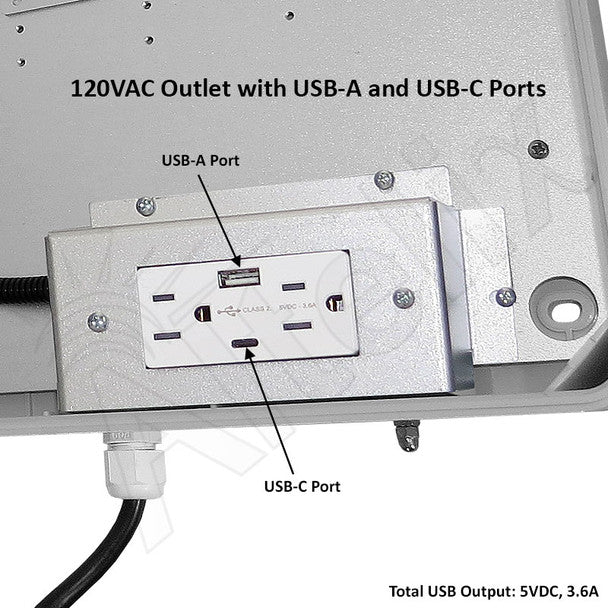

    USB Ports
    The NP171406VFA1C-2SA includes a Type-A and Type-C USB charging ports. These 5VDC 3.6A USB ports are integrated into the 120VAC outlet, so no additional room in the enclosure is required. Note: these ports are used to power/charge electronic devices only, no data transfer capability.

    Aluminum Equipment Mounting Plate
    The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

    Mounting
    The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

    Customization
    We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
