Altelix 24x24x12 120VAC 20A Steel NEMA 4X Enclosure for UPS Power Systems with 19" Wide 6U Rack, 20A Power Outlets and Power CordAltelix

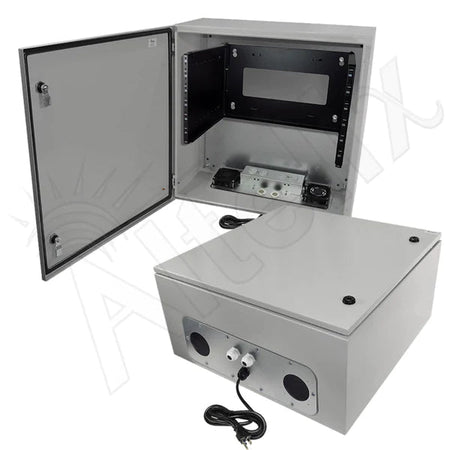

The Altelix NS242412A1C-20A-R6U 19" Rack 6U NEMA 4X Steel Weatherproof Enclosure with 120VAC 20A Power and Equipment Plate is ideal for protecting rack mountable UPS power systems as well as other 20A electronic equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

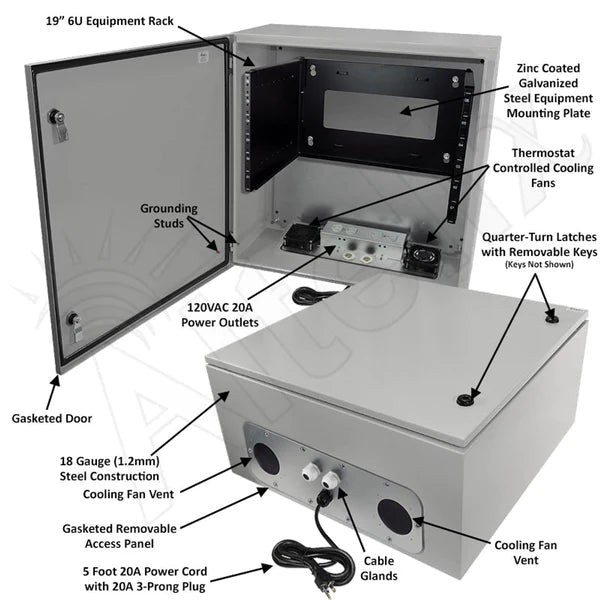

Construction and Features
This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door enclosure.
Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.
Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $7.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
120VAC 20A Removable Power Module
The NS242412A1C-20A-R6U features a removable power module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC 20A power outlets (4 outlets total) and a pre-wired 20A 5 foot power cord with a 3-prong plug, so no additional wiring is required.
Internal 6U 19" Equipment Rack
The NS242412A1C-20A-R6U features a standard 19" 6U equipment rack. It is designed to accommodate most rack mountable UPS systems. Additional equipment that can be mounted include network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 18 Gauge (1.2mm thick) galvanized steel plate which can also be drilled and modified by the installer to unique sire requirements.
Installation Note: The max. depth of the 6U rack is 10" (254mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).
Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
