Altelix Stainless Steel Universal Pole Mount Kit with Adjustable Bands for Enclosures 7 to 12 Inches Wide

Specifications

Specifications

Product Type	Enclosure Accessories

Description

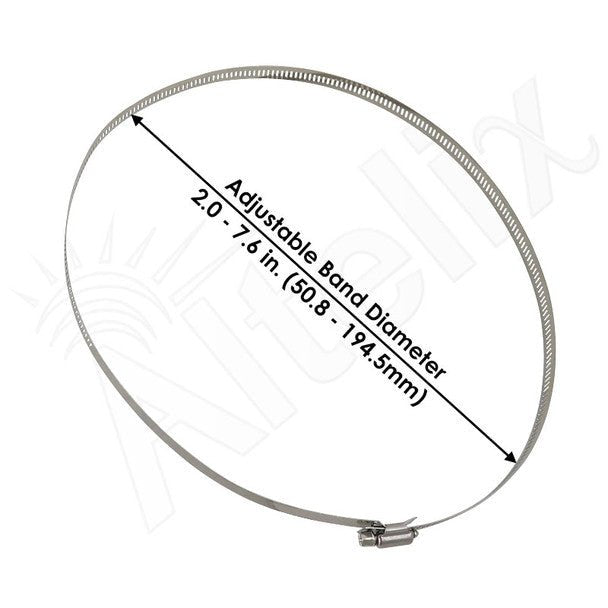

Features: Includes (2) 304 Stainless Steel Mounting Brackets Includes (2) 304 Stainless Steel 8 inch Adjustable  Bands for Mounting to Poles 2.0 to 7.6 inches (50.8 to 194.5mm) in Diameter 70 lbs (31.7kg) Weight Capacity Easily Attaches to Rear of Enclosure Fit Most Enclosures 7" to 12" Wide (Mounting Slots Accommodate Mounting Points from 6.7" to 11.1" Apart)

Applications: Pole Mount Installations Fence Posts Fits Altelix NP171406, NF141206, NF141208, NF141210, NFC161208 & NS161208 Enclosures

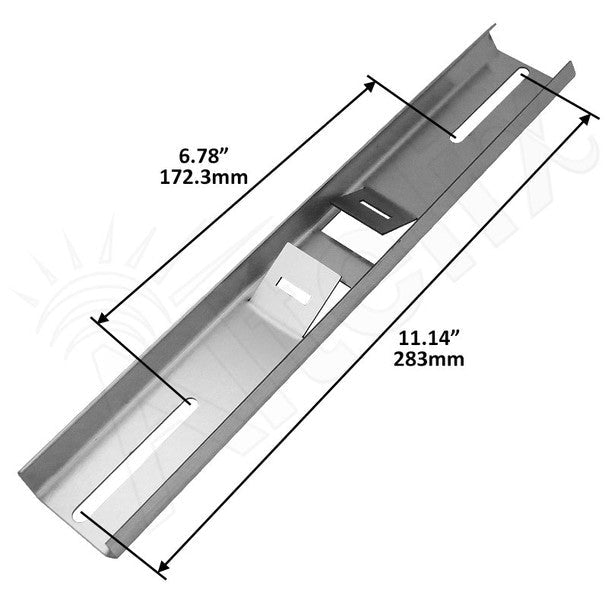

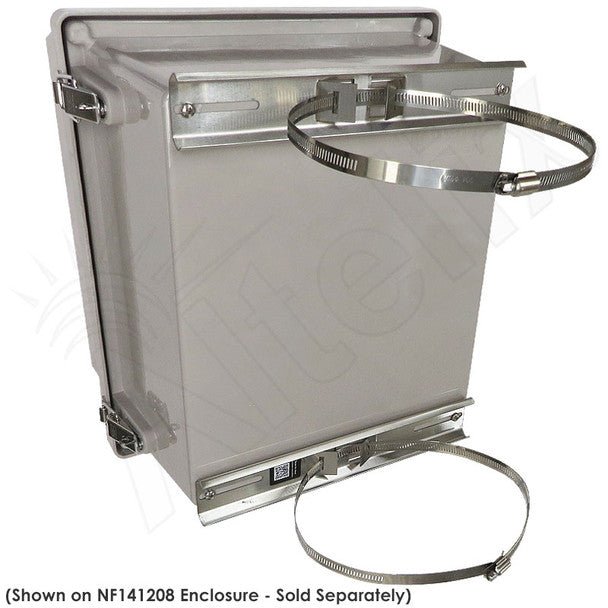

The Altelix NMKQ-293-08 Universal Pole Mount Kit easily attaches to the rear of most enclosures 7 to 12 inches wides. Mounting slots on the brackets and accommodate mounting points on the enclosure from 6.7 to 11.1 inches apart. This pole mount kit allows the enclosures to be mounted to poles 2.0 to 7.6 inches (50.8 to 194.5mm) in diameter using the included 304 stainless steel adjustable bands. The mounting brackets are constructed from 18 Gauge (1.2mm) thick AISI 304 stainless steel for all weather applications.

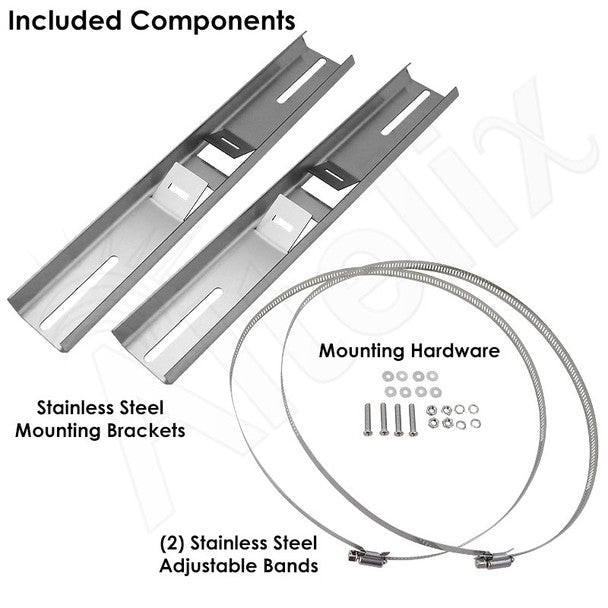

The NMKQ-293-08 kit includes:

• (2) 304 stainless steel mounting brackets
• (2) 304 stainless steel adjustable 8" diameter bands
• Mounting hardware.
