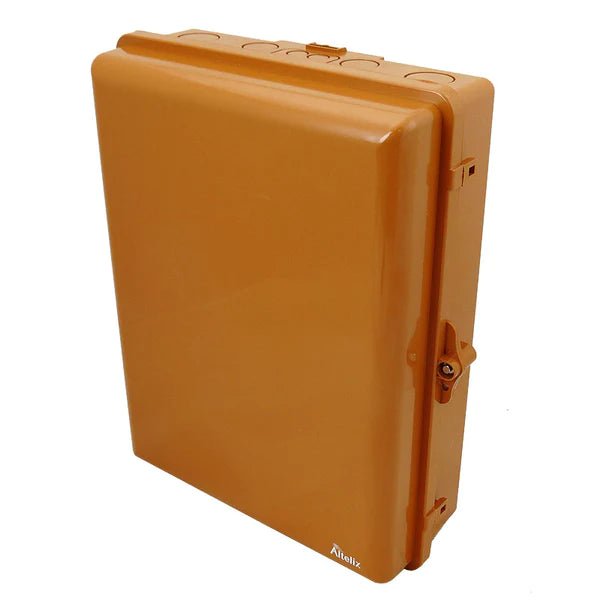

Altelix Copper Mountain 17x14x6 Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Enclosure with PVC Non-Metallic Equipment Mounting PlateAltelix
The Altelix NP171406MP Polycarbonate + ABS NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.
PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.
Construction and Features

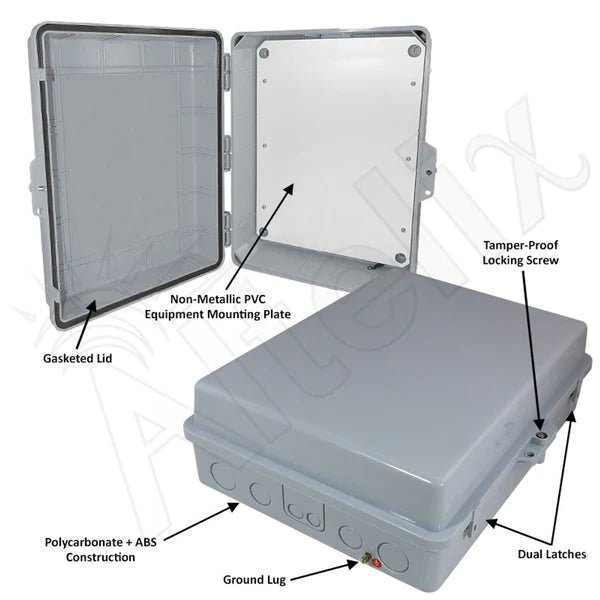

This enclosure is IP55 rated and features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. An internal grounding plate is provided as well a wiring clamp to help secure internal wiring.
Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
RF Transparent Design
The NP171406MP is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere the radio's operation. In addition, mounting radios to PVC equipment mounting plate can be done simply by using self-tapping screws. The size of this enclosure will fit a wide range of popular wireless points on the market, such as the Ubiquiti® UniFi® UAP-AC-PRO and the Linksys® LAPAC1200.
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.
The accessory kit included with the enclosure contains the door locking key, rubber grommets, wall anchors and rubber bonded washers (used for wall mounting). Also included is a ground cable, grounding plate and cable clamp which can be mounted to the inside of the enclosure.
