Altelix 35mm Top Hat DIN Rail for NP141105, NP141107, NP141109 & NFC121006 Series Enclosures

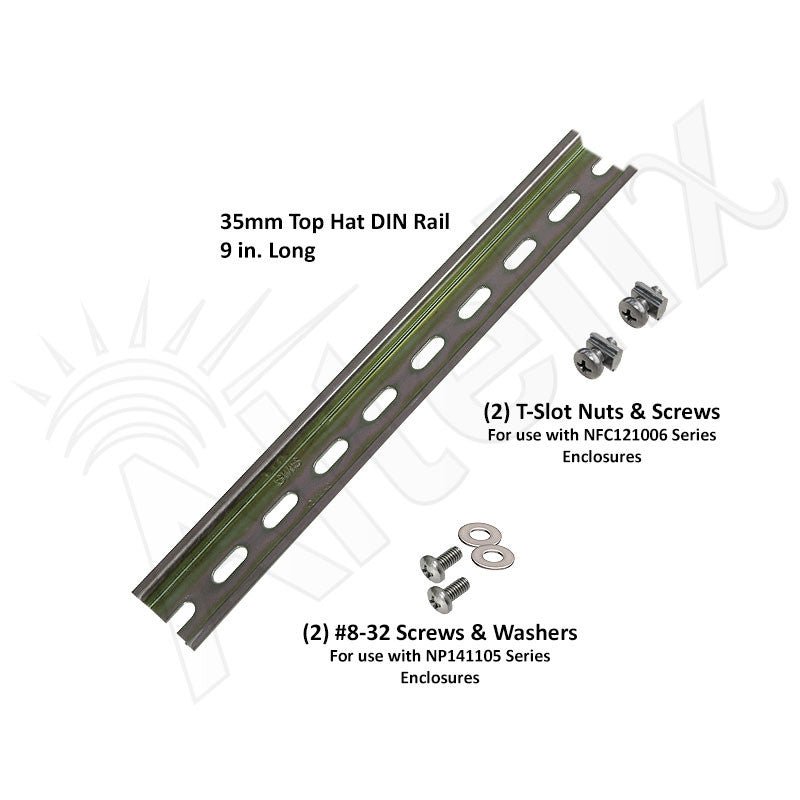

• The Altelix DRS-NFC10-NP11 is a 35mm Top Hat DIN Rail for use with the Altelix NP141105, NP141107, NP141109 and NFC121006 Series NEMA enclosures. The kit includes:

  • (1) 9" long 20 gauge steel 35mm top hat DIN rail
  • (2) #8-32 Screws and Washers (For use with NP141105 enclosures with equipment mounting plates)
  • (2) T-Slot Nuts and Screws (For use with NFC121006 enclosures without equipment mounting plates)

  This DIN Rail Kit can be used with the following enclosures:

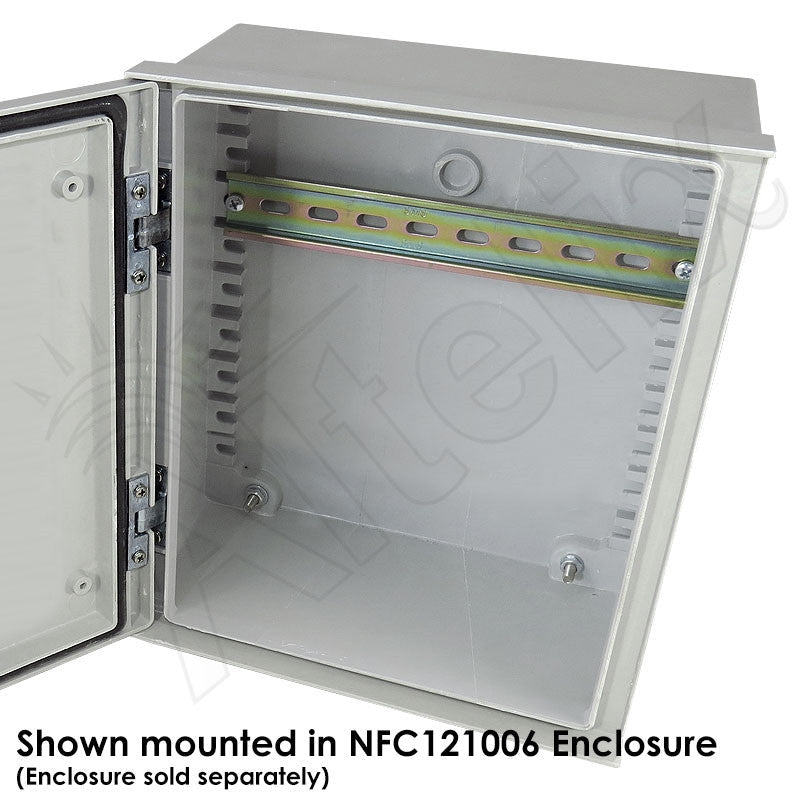

  • NFC121006 Series Enclosures without Equipment Mounting Plates

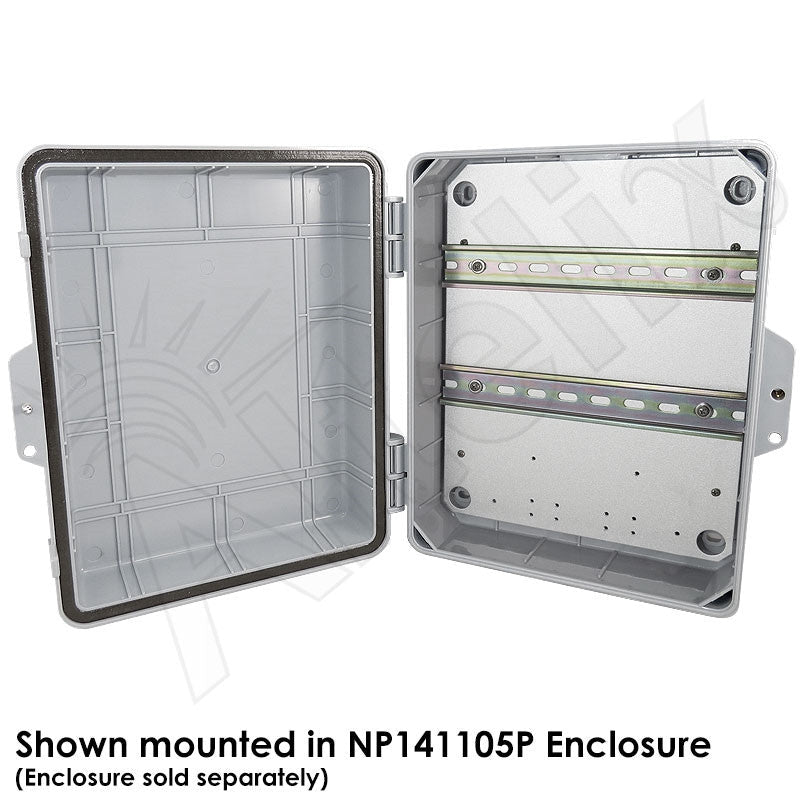

  • NP141105 Series Enclosures with Equipment Mounting Plates
  • NP141107 Series Enclosures without Equipment Mounting Plates
  • NP141109 Series Enclosures with or without Equipment Mounting Plates

  NFC121006 Installation Note:
  The T-Slot Nut mounting system can only be used with NFC121006 enclosures without equipment mounting plates. However, the DIN rail can be directly mounted to the plate (drilling of the plate would be required).
