Altelix Heavy Duty Pole Mount Kit for Altelix NFC322412, NS242412, NS242416, NS242424, NS282416, NS282424 & NS322416 Series NEMA Enclosures

Features:
Includes (2) 14 Gauge Heavy-Duty Coated Steel Mounting Brackets

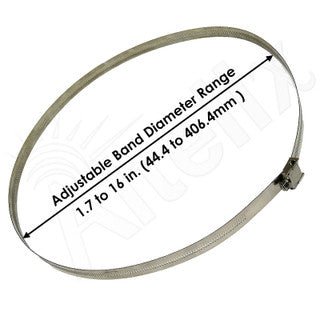

Now Includes (2) Heavy-Duty 304 Stainless Steel 16 inch Adjustable Bands for Mounting to Poles 1.7 to 16 inches (44.4 to 406.4mm) in Diameter
Easily Attaches to Rear of Enclosure

Applications:
Pole Mount Installations
NFC322412 Series
NS242412 Series
NS242416 Series
NS242424 Series
NS282416 Series
NS282424 Series
NS322416 Series

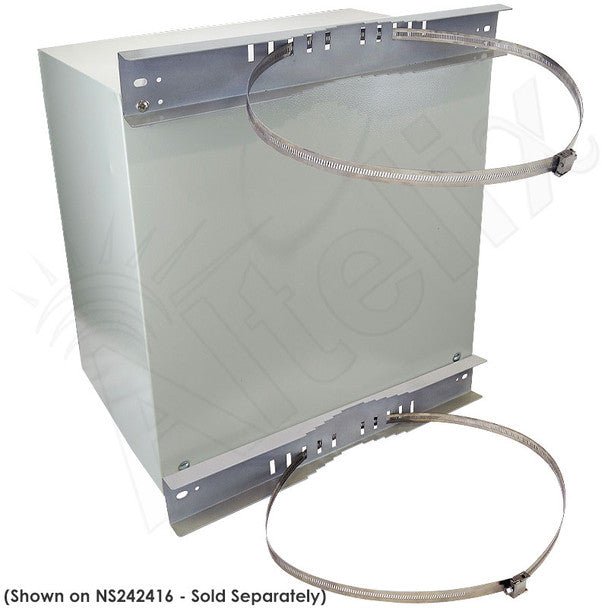

The Altelix NMHS-600-16 Pole Mount Kit attaches to the rear of our NFC322412, NS242412, NS242416, NS242424, NS282412, NS282424 and NS322416 series NEMA enclosures. These heavy-duty steel brackets allow the enclosures to be mounted to poles 1.7 to 16 inches (44.4 to 406.4mm) in diameter using the included heavy duty 304 stainless steel adjustable bands. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated.

Heavy-Duty Construction

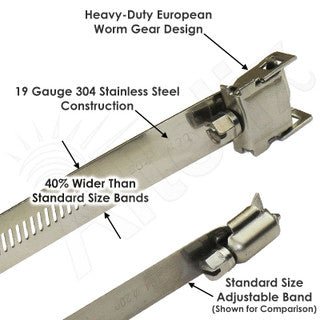

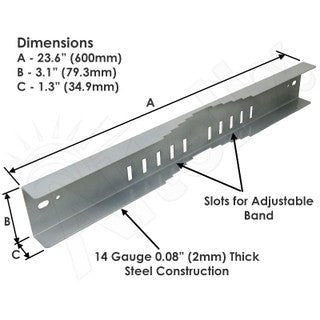

The NMHS series pole mounts kits are designed for rugged all weather installations. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) steel and are coated for all weather applications. To mount to the pole this kit includes (2) heavy duty 19 gauge 304 stainless steel adjustable bands. 40% wider then standard adjustable bands, these 0.7 inch (18mm) wide bands feature a heavy-duty European worm gear design which is stronger than standard hose clamp gears.

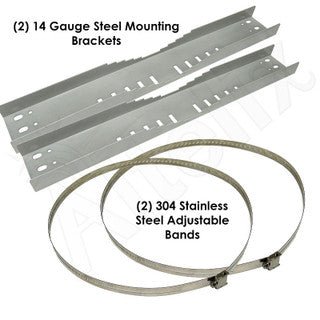

The NMHS-600-16 kit includes:

• (2) 14 gauge steel mounting brackets
• (2) 304 stainless steel adjustable 16" diameter bands

The NMHS-600-16 is for use with the following enclosures:

• NFC322412 Series FRP Enclosures
• NS242412 Series Steel Enclosures
• NS242416 Series Steel Enclosures
• NS242424 Series Steel Enclosures
• NS282416 Series Steel Enclosures
• NS282424 Series Steel Enclosures
• NS322416 Series Steel Enclosures
