Altelix Stainless Steel Universal Pole Mount Kit with Adjustable Bands for Enclosures 4 to 8 Inches Wide

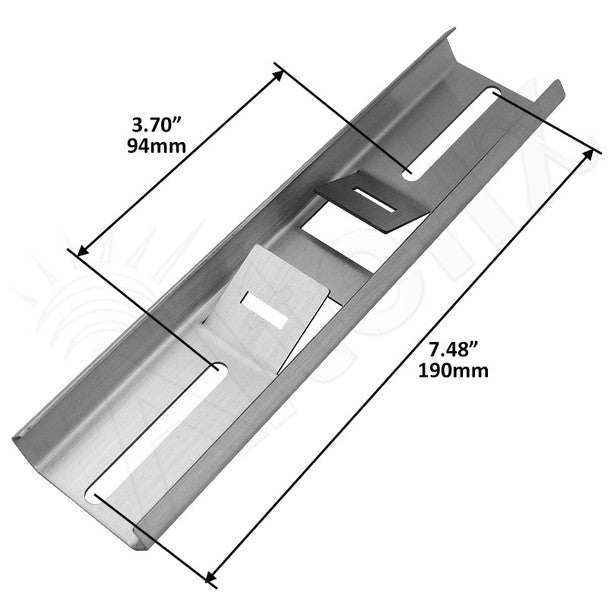

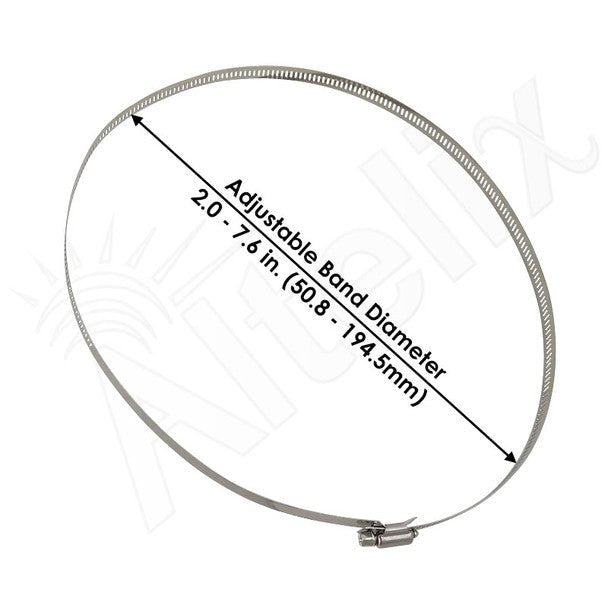

The Altelix NMKQ-200-08 Universal Pole Mount Kit easily attaches to the rear of most enclosures 4 to 8 inches wide. Mounting slots on the brackets and accommodate mounting points on the enclosure from 3.7 to 7.8 inches apart. This pole mount kit allows the enclosures to be mounted to poles 2.0 to 7.6 inches (50.8 to 194.5mm) in diameter using the included 304 stainless steel adjustable bands. The mounting brackets are constructed from 0.04" (1mm) thick stainless steel for all weather applications.

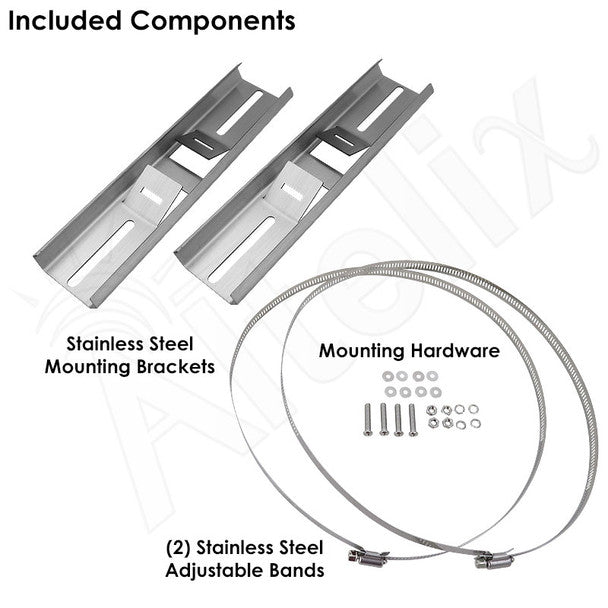

The NMKQ-200-08 kit includes:

• (2) 304 stainless steel mounting brackets
• (2) 304 stainless steel adjustable 8" diameter bands
• Mounting hardware.

Optional adjustable stainless steel bands can also be purchased for the following pole sizes:

• Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
• Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
• Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

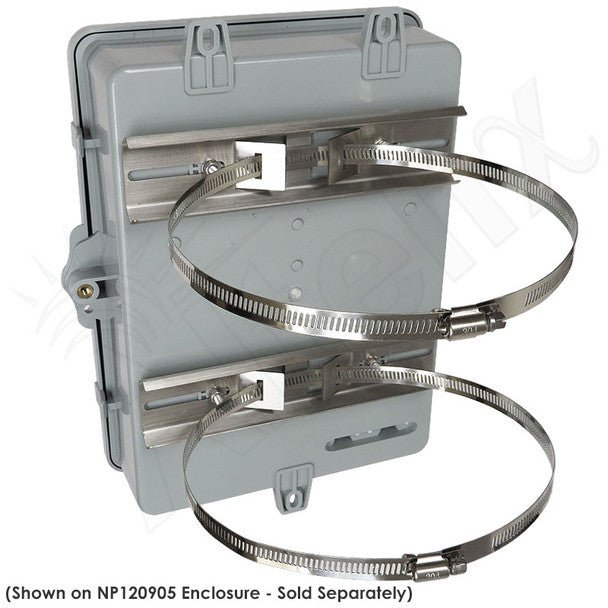

The NMKQ-200-08 is for use with the following Altelix enclosures:

• NP090803
• NP100904
• NP120905
• NP120907
• NP120909
• NP131004
• NP151005
• NF100806
• NF100808
• NS100806
