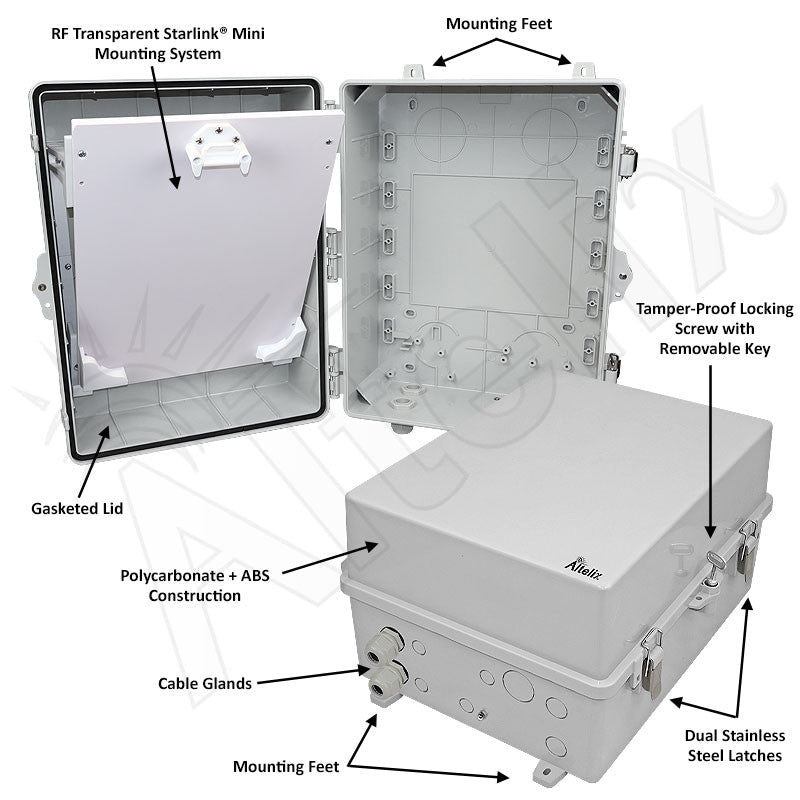

Altelix Aimable Weatherproof Starlink® Mini NEMA 4X Directional Enclosure

• Features Includes heavy duty tilt-n-swivel mounting bracket to precisely aim the enclosure to achieve the best satellite reception  RF transparent mounting system designed for the Starlink® Mini Starlink® Mini mounting system located in the enclosure lid is angled up 30 degrees Enclosure can be wall or pole mounted Plug-and-Play Design, No Electrical Wiring Required Durable Polycarbonate + ABS construction Weatherproof and UV Stable Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66 Extra deep gasketed lid with dual stainless steel latches Tamper-Proof locking screw with key and provision for padlock Can be mounted using external feet or internal mounting points (2) Cable glands for Starlink® power and Ethernet cables

  Applications Starlink® Mini - Model #UTA-231 Outdoor wireless network installations Protection of Starlink® Mini from theft or damage Concealment of equipment Rapid deployment Emergency networks Harsh environments Mobile applications

  The Altelix Starlink® Mini NEMA 4X Aimable Enclosure is designed to provide the ultimate protection for the Starlink® Mini. This rugged weatherproof directional enclosure can withstand the harshest environments and provides a way to securely deploy the Starlink® Mini.

  Aimable Enclosure for Better Satellite Reception
  This enclosure features a heavy duty cast aluminum tilt-n-swivel mounting bracket attached to the rear of the enclosure. This bracket is designed to articulate in both vertical and horizontal planes which allows for precise adjustment and aiming of the enclosure to achieve the best satellite reception. This tilt-n-swivel bracket is designed for both wall and pole/mast mounting. It can be mounted to pole and masts ranging from 1-3 inches in diameter. Using the optional adjustable stainless steel bands available from Altelix, it can be mounted to poles up to 13 inches in diameter.

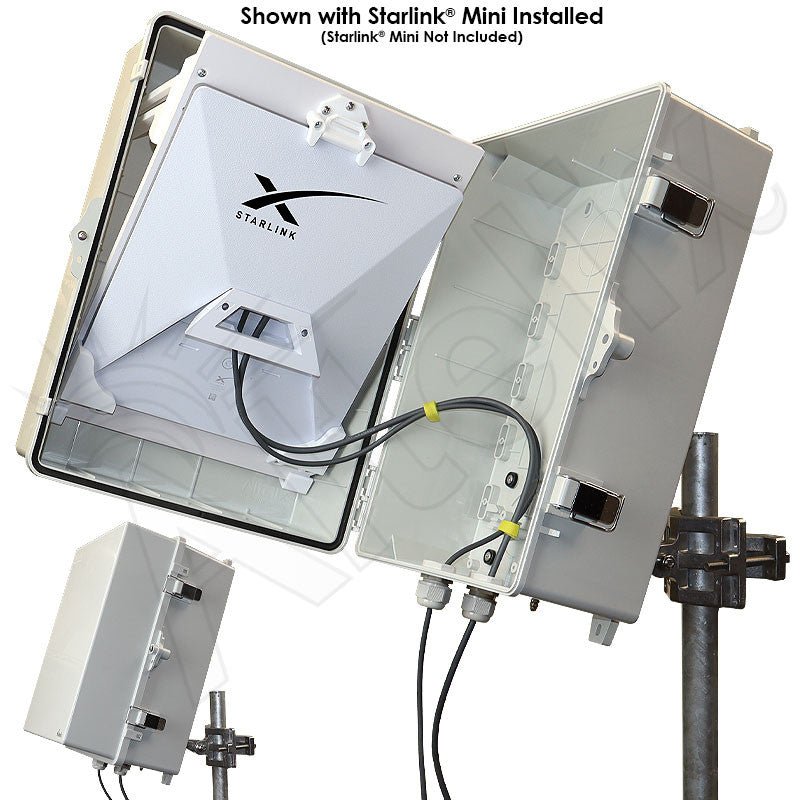

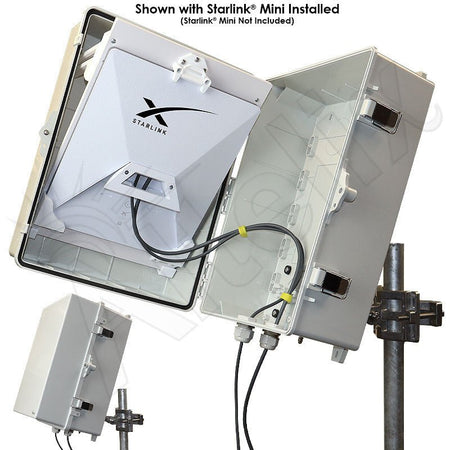

  Starlink® Mini Mounting System
  This enclosure features a RF transparent mounting system located in the lid of the enclosure designed specifically for the Starlink® Mini. Angled up 30 degrees, this mounting system places the Starlink® Mini in the optimal position for the best satellite reception and wireless coverage. Easy to install, simply slide the Starlink® Mini into the mount and lock into place. For installations subject to vibrations such as in vehicles, a hook-n-loop strap is provided. Two pre-installed cable glands are provided on the enclosure for the Starlink® Mini power and Ethernet cables.

  Polycarbonate + ABS Protection Built to Last
  Built to last, this enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements. This enclosure meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

  Secure Your Equipment
  To better secure the Starlink® Mini this enclosure features dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

  RF Transparent Design
  The non-metallic design of the enclosure and mounting system is RF transparent and will not interfere with the wireless signal range or coverage pattern.




• 1
• 2
• 4
• 4X
• 12
• 13

No downloads available for this variant.
