Attabox Heartland SL™ Low-Profile Polycarbonate Enclosure-Opaque Cover, Hinged With Stainless Steel Latch and Pad-Lockable
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
Regular price
$103.99
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Series | Attabox Heartland Series |
| Application | Indoor, Outdoor, Waterproof, Wall Mountable |
| IP Equivalent | IP66, IP68 |
| Height | 10 |
| Width | 8 |
| Depth | 3 |
| Cover Type | Opaque, Hinged Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Wall Mount |
| Mounting Plate Included | No |

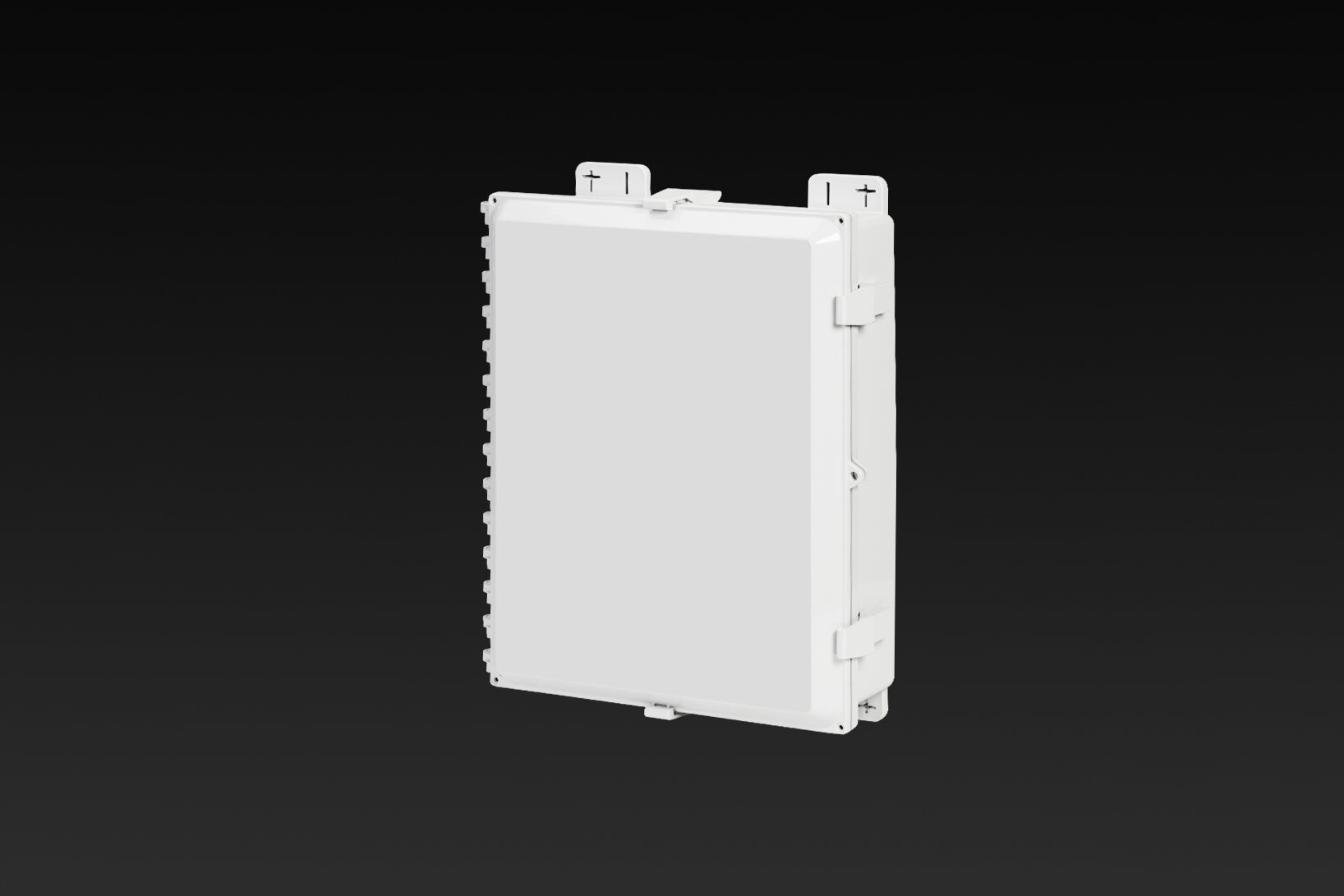

A high performance, shallow depth, polycarbonate enclosure applicable for heavy industrial conditions, but with a refined style suitable for commercial, industrial and OEM design applications. Heartland Series enclosures are rain-tight and watertight rated for use in both interior and exterior applications. This configuration features an opaque cover with stainless steel latches which is hinged, latched, and padlockable.
Standards
-
- NEMA 250; UL 50; UL 50e; UL508A
- IEC 60529IP66; IP68
- Temperature Range °F-40°F to +248°F
- Temperature Range °C-40°C to +120°
-
Industry Standards
Flammability Rating UL94-5VA Self Extinguishing Non-halogenated, non-flame propagating Temperature Range -40°F to +248°FUL/cUL File # E319779 Impact Rating (IK10) No CSA Std. C22.2 File # No IEC 60529 Ratings IP66; IP68NEMA Ratings (UL508A, UL50 & UL50e) 1; 3R; 4; 4X; 6P; 12NFPA No. 101 Flame Spread N/A Outdoor UV Exposure (UL 746C) (f1) Rated Plenum Space Rating (UL 2043) No
Additional Accessories
- Attabox Aluminum Back Panel — $12.99
- Attabox ABS Back Panel — $16.99
- Attabox Carbon Steel Back Panel — $14.99
- Attabox Din Rail Kits — $24.99
- Attabox Heartland Pole Mount Kit — $59.99
- Attabox Breather Vent — $13.99
