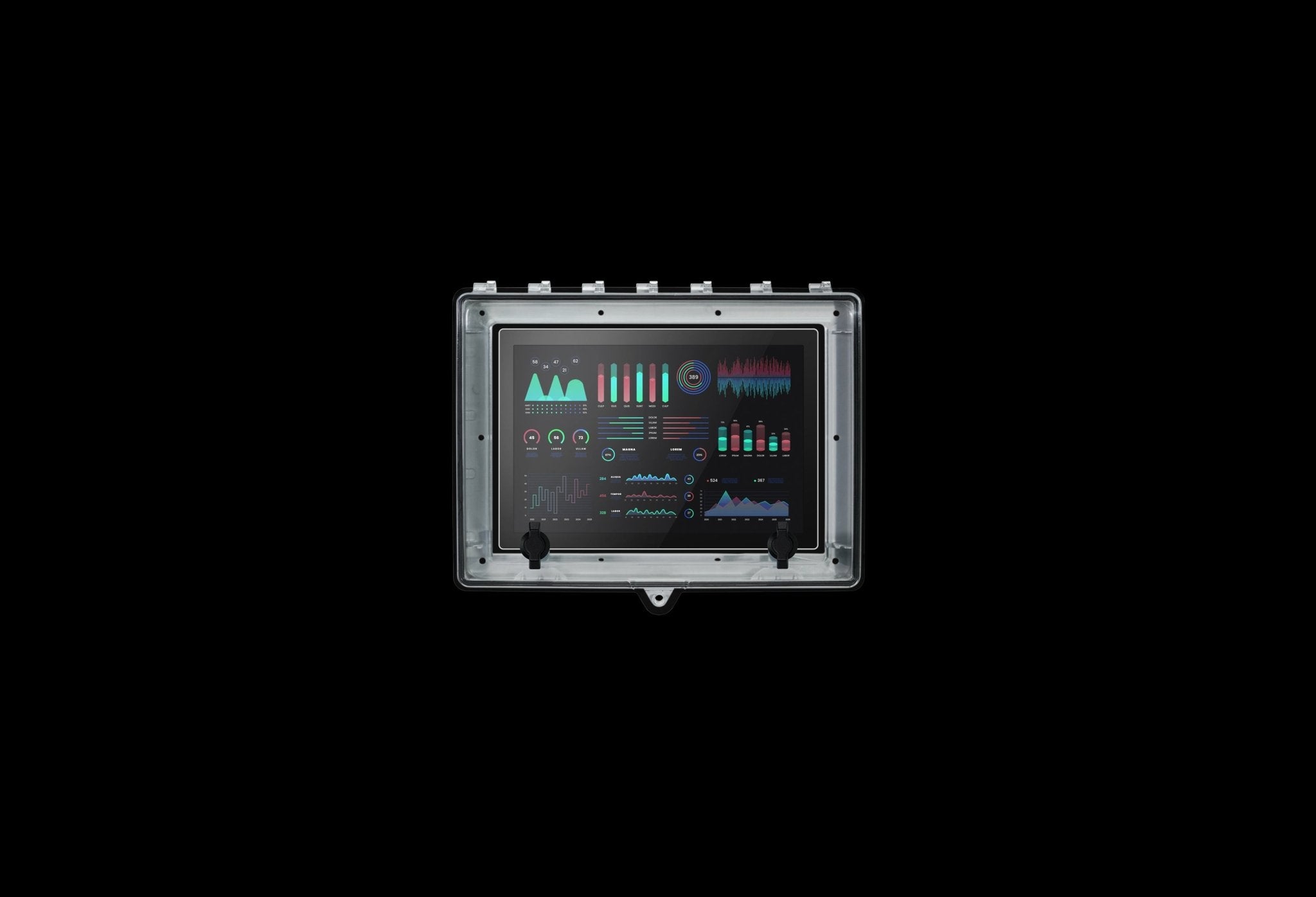

Attabox Solar Shield HMI Cover Clear

• SolarShield HMI Clear Cover for HMI Devices offer the most innovative, durable non-metallic HMI Covers for use with all enclosure material types. The clear version has an easy to use, hinged design with clear cover which allows for visibility of the HMI screen while the cover is closed. SolarShield HMI Clear covers protect HMI screens and electrical equipment from corrosion and damage due to water, oils, dirt, and sand and greatly reduce equipment replacement cost. Impact resistant polycarbonate construction provides long dependable life in harsh conditions. The Clear Cover configuration allows for excellent visibility of the HMI screen while the cover is closed.


• Standards

  • UL508A cULus Registered Componet File #E64358 UL Listed File E64358

    Temperature Range °F -40°F to +248°F

    Temperature Range °C -40°C to +120°C

    Flamability Rating UL94-5VA

    Outdoor Exposure UL746c (f1) Rated



• Specifications

  Please click a part number below to view the product specifications.

  Color Gray

  Cover Type Opaque

  Material Polycarbonate

  Cover Screw Size #10-32 x 5/8

  Cover Screw Recommended Torque 20-24 in-lbs

  Cover Screw Material 304 SS

  Installation Mounting Torque 20-24 in-lbs Max

  Hinge Material Integral Polycarbonate

  Latch Material Nylon

  Gasket Material Poured In Place (PIP) Polyurethane Seamless

• Industry Standards

  Maintains NEMA 4/4X rating of enclosure when paired with NEMA 4/4X rated HMI Device
  Patent pending with non-metallic, hinged inner doors to shield screen from the sun and allow for hands-free use
  Universal covers can be used with either non-metallic or metallic enclosures
  Lightweight, high-Impact rated, UV resistant polycarbonate material construction
  Stainless steel hardware kit Included
  Padlock-able for increased security
  Simple and easy installation with the use of common tools
  Available as standalone SKUs or assembled to our enclosures with added HMI cutouts through our value-add ModRight program.
  Color: Pantone 428C

• 4
• 4X

No downloads available for this variant.
