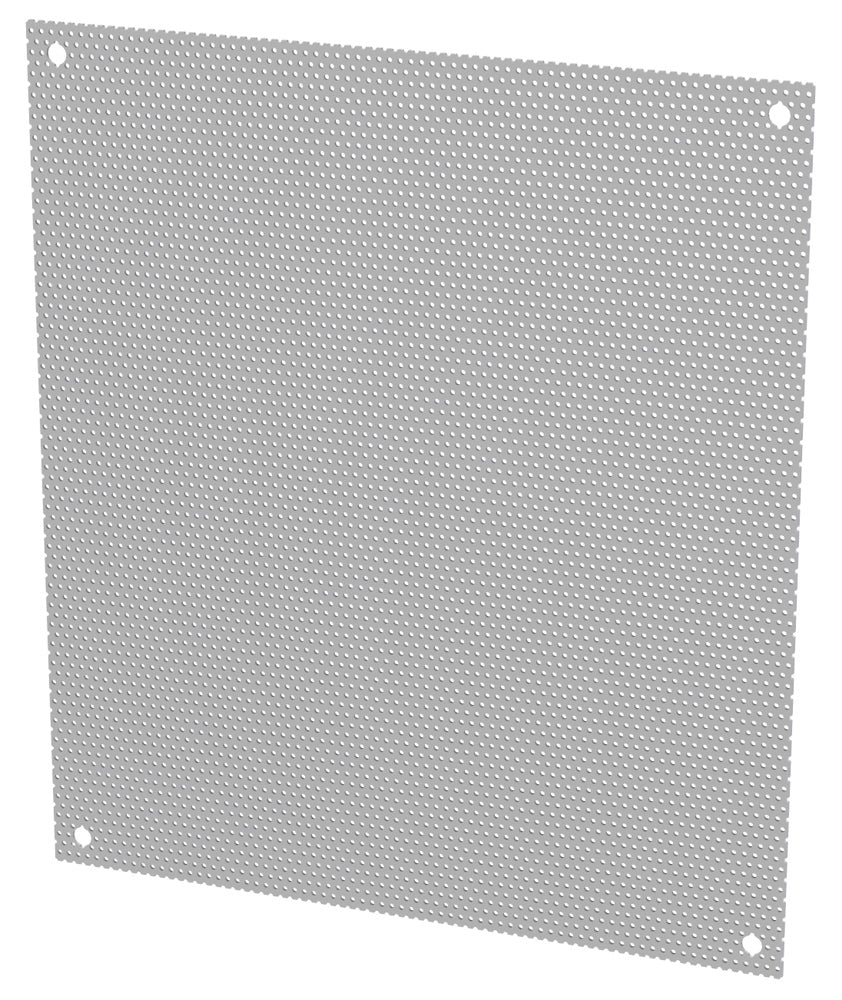

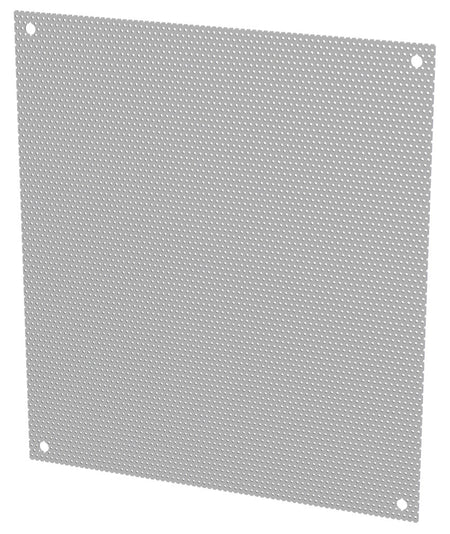

Hammond Perforated Inner Panels 18PP Series 1418, 1447, PJW, and PHW Enclosures

Specifications

Specifications

Product Type	Enclosures
Height	16
Width	12

Description

• Description
• Specifications

• • For use with 1418, 1447, PJW and PHW enclosures
  • Made from 16 ga steel
  • Accepts self tapping screws, eliminating time-consuming measurement, marking, and drilling of component mounting holes
  • 1/8" dia holes on 1/4" staggered centers
  • ANSI 61 gray powder finish

• Specifications

  Please click a part number below to view the product specifications.

  Actual Panel Dimensions					Part Number
  13x9 in.					18P1309PP
  13x13 in.					18P1313PP
  15x15 in.					18P1515PP
  17x13 in.					18P1713PP
  17x17 in.					18P1717PP
  21x17 in.					18P2117PP
  21x21 in.					18P2121PP
  27x21 in.					18P2721PP
  27x27 in.					18P2727PP
  33x21 in.					18P3321PP
  33x27 in.					18P3327PP
  33x33 in.					18P3333PP

Downloads

No downloads available for this variant.
