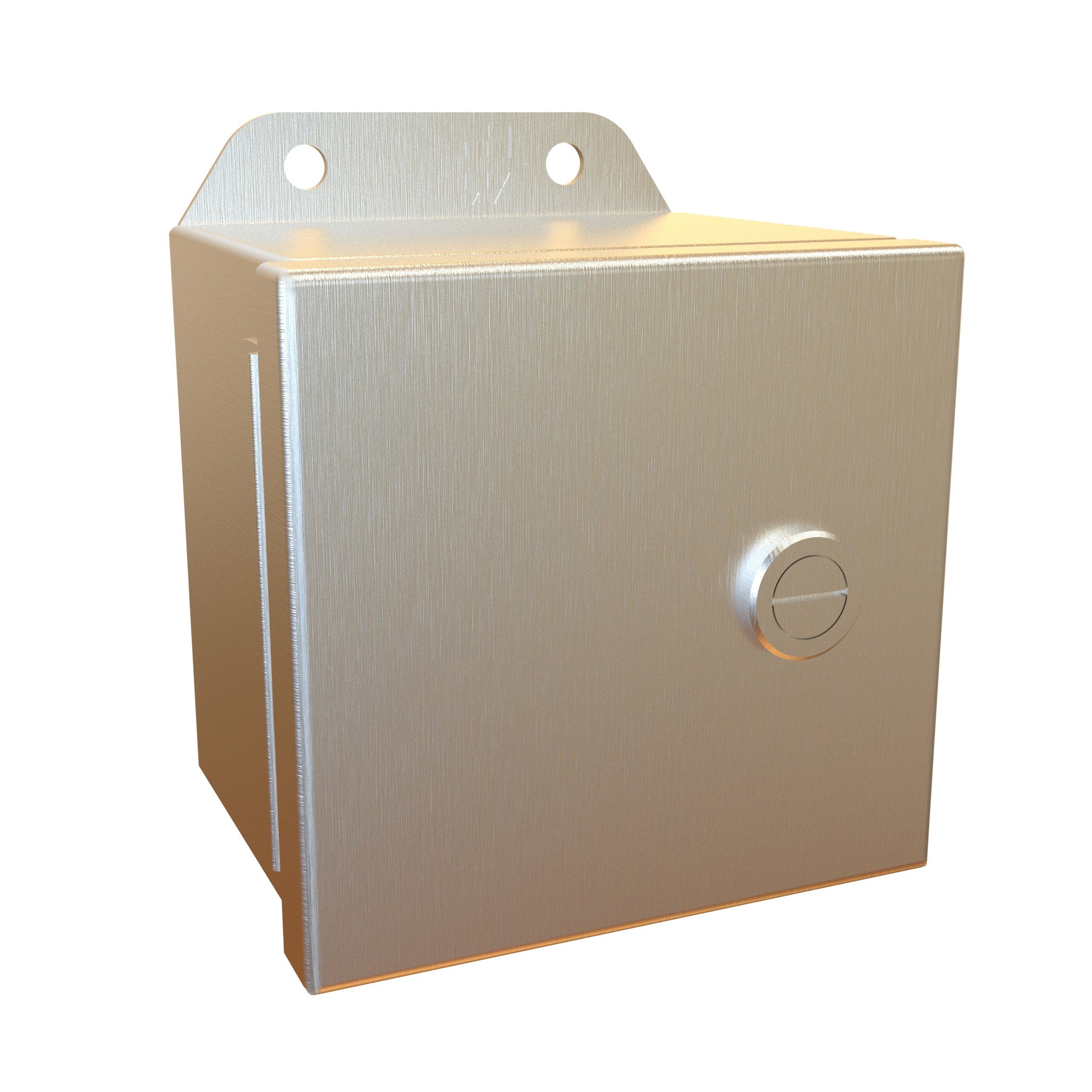

Eclipse Junior Series Continuous Hinge Door with Quarter Turn - Inner Panel Included
Hammond MFG
- Description
- Specifications
- NEMA Ratings
-
Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
Standards
- UL 508A Type 3R, 4, 4X, 12, and 13
- CSA Type 3R, 4, 4X, 12, and 13
- NEMA Type 3R, 4, 4X, 12 and 13
- IEC 60529, IP66
-
Specifications
Please click a part number below to view the product specifications.
Product Dimensions
Part Number
4x4x3Â in. EJ443SS 4X4X4 in. EJ444SS 4X6X3Â in. EJ643SS 8X6X3Â in. EJ863SS 6X4X4Â in. EJ644SS 6X6X4Â in. EJ664SS 8X8X4Â in. EJ884SS 10X8X4Â in. EJ1084SS 12X6X4Â in. EJ1264SS 12X12X4Â in. EJ12124SS 12X10X5Â in. EJ12105SS 8X6X6Â in. EJ866SS 10X8X6Â in. EJ1086SS 10X10X6Â in. EJ10106SS 12X10X6Â in. EJ12106SS 12X12X6Â in. EJ12126SS 14X12X6Â in. EJ14126SS 16X14X6Â in. EJ16146SS 12X10X8Â in. EJ12108SS 14X12X8Â in. EJ14128SS 16X14X8Â in. EJ16148SS 16X14X10Â in. EJ161410SS -
Type 3R
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.
Type 4
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.Type 4X
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.Type 12
Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).
Type 13
Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
