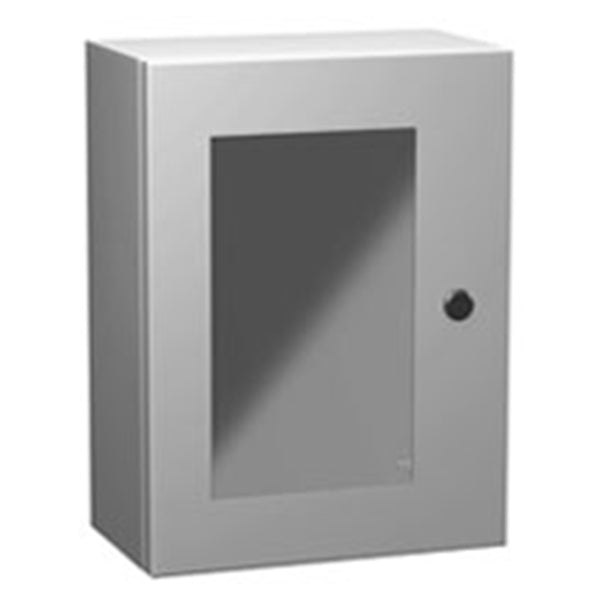

Eclipse Series With Window Painted Steel Enclosure
Eclipse Series With Window Painted Steel Enclosure Eclipse Series With Window Painted Steel Enclosure Specs
$289.16 $316.17
Product Information
Part Number: EN4SD16126WGY
  • Description
  • Specifications
  • NEMA Ratings
  • Designed to enclose electrical and/or electronic equipment in wall mount applications where viewing of component operation is necessary while maintaining protection ratings. Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. A wide range of sizes and practical accessories make this product line a complete package.

    Standards

    • UL 508A Type 3R, 4 and 12
    • CSA Type 3R, 4 and 12
    • NEMA 3R, 4 and 12
    • IEC 60529, IP66
  • Specifications

    Please click a part number below to view the product specifications.

    Product dimensions

    Part Number

    16x12x6 EN4SD16126WGY
    20x16x6 EN4SD20166WGY
    20x20x6 EN4SD20206WGY
    24x20x6 EN4SD24206WGY
    24x24x6 EN4SD24246WGY
    16x12x8 EN4SD16128WGY
    20x16x8 EN4SD20168WGY
    20x20x8 EN4SD20208WGY
    24x20x8 EN4SD24208WGY
    24x24x8 EN4SD24248WGY
    30x24x8 EN4SD30248WGY
    20x20x12 EN4SD202012WGY
    24x20x12 EN4SD242012WGY
    24x24x12 EN4SD242412WGY
    30x24x12 EN4SD302412WGY
    24x24x16 EN4SD242416WGY
    24x24x20 EN4SD242420WGY
    30x24x20 EN4SD302420WGY
  • Type 3R

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.

    Type 12

    Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).
