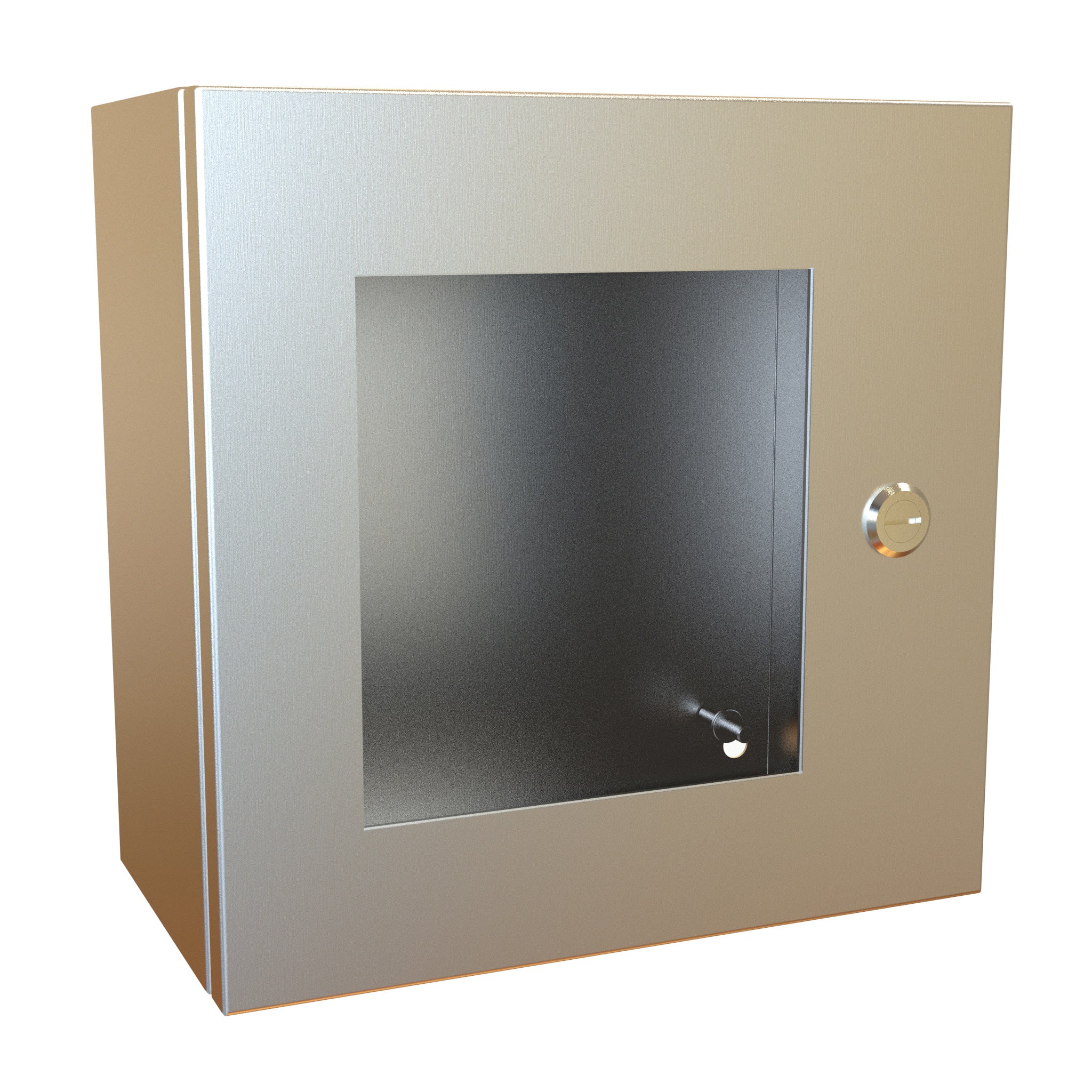

Eclipse Series With Window Stainless Steel Enclosure
Eclipse Series With Window Stainless Steel Enclosure Eclipse Series With Window Stainless Steel Enclosure Specs
$992.52 $1,355.35
Product Information
Part Number: EN4SD12126WSS
  • Description
  • Specifications
  • NEMA Ratings
  • Designed to enclose electrical and/or electronic equipment in wall mount applications where viewing of component operation is necessary while maintaining protection ratings. Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. A wide range of sizes and practical accessories make this product line a complete package.

    Standards

    • UL 508A Type 3R, 4, 4X and 12
    • CSA Type 3R, 4, 4X and 12
    • NEMA Type 3R, 4, 4X, 12 and 13
    • IEC 60529, IP66
  • Specifications

    Please click a part number below to view the product specifications.

    Product dimensions

    Part Number

    12x12x6 in. EN4SD12126WSS
    16x12x6 in. EN4SD16126WSS
    20x16x6 in. EN4SD20166WSS
    20x20x6 in. EN4SD20206WSS
    20x16x8 in. EN4SD20168WSS
    20x20x8 in. EN4SD20208WSS
    24x20x8 in. EN4SD24208WSS
    24x24x8 in. EN4SD24248WSS
    30x24x8 in. EN4SD30248WSS
    16xx12x10 in. EN4SD161210WSS
    20x16x10 in. EN4SD201610WSS
    20x20x10 in. EN4SD202010WSS
    24x20x10 in. EN4SD242010WSS
    24x24x10 in. EN4SD242410WSS
    30x24x10 in.  EN4SD302410WSS
    20x20x12 in. EN4SD202012WSS
    30x24x12 in. EN4SD302412WSS
  • Type 3R

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4X

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.

    Type 12

    Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

    Type 13

    Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
