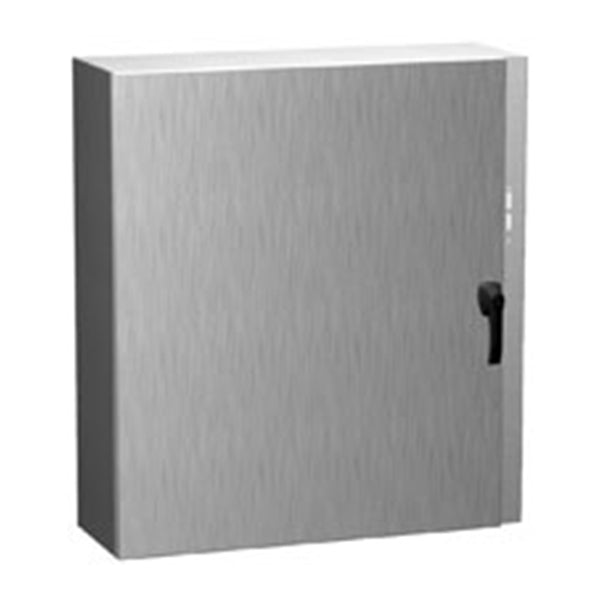

Eclipse Stainless Steel Disconnect Series Enclosure
$1,063.57 $1,139.64
Product Information
Part Number: EN4DSC20228SS
  • Description
  • Specifications
  • NEMA Ratings
  • Hinge-Door-with-Handle-(Flange-w/-multi-vendor-cutout)-NEMA-4X-Mild-Steel-Wallmount-Disconnect-Enclosure. Designed to house safety disconnect equipment. Disconnects and operating mechanisms are not provided with the enclosure and must be ordered separately from the manufacturer.

    Standards

    • UL 508A Type 3R, 4 and 4X
    • CSA Type 3R, 4 and 4X
    • NEMA Type 3R, 4, 4X, 12 and 13
    • IEC 60529, IP66
    • Appropriate components are required to maintain these standards.
  • Specifications

    Please click a part number below to view the product specifications.

    Product dimensions

    Part Number

    20x22x8 EN4DSC20228SS
    24x22x8 EN4DSC24228SS
    24x26x8 EN4DSC24268SS
    30x26x8 EN4DSC30268SS
    36x26x8 EN4DSC36268SS
    36x32x8 EN4DSC36328SS
    42x32x12 EN4DSC423212SS
    42x38x12 EN4DSC423812SS
    48x38x12 EN4DSC483812SS
    60x38x12 EN4DSC603812SS
  • Type 3R

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4X

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.

    Type 12

    Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

    Type 13

    Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
